TUV Single Core Solar PV Cable 6mm2 1500V DC Tinned Copper XLPE Insulation

Name: TUV Single Core Solar PV Cable 6mm2 1500V DC Tinned Copper XLPE Insulation
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1z2z2-K 1x4mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001/TUV/CE

Model Number: H1z2z2-K 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 100m

Price: Negotiation

Packaging Details: 100m/roll, 500m per carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 70000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    solar dc cable, solar photovoltaic cable


Product Name:	PV Cable 4mm2	Conductor Size:	56/0.285mm
Conductor:	Tinned Copper	Cable OD:	5.9mm
Packing:	100m/roll	Temperature Range:	-40℃～+90℃

Product Name:	PV Cable 4mm2
Conductor Size:	56/0.285mm
Conductor:	Tinned Copper
Cable OD:	5.9mm
Packing:	100m/roll
Temperature Range:	-40℃～+90℃

Description

TUV Single Core Solar PV Cable 6mm2 1500V DC Tinned Copper XLPE Insulation

TUV Single Core Solar PV Cable 6mm² 1500V DC Tinned Copper XLPE Insulation

Product Specifications

Attribute	Value
Product name	PV Cable 4mm²
Conductor size	56/0.285mm
Conductor	Tinned copper
Cable OD	5.9mm
Packing	100m/roll
Temperature range	-40℃～+90℃

Product Description

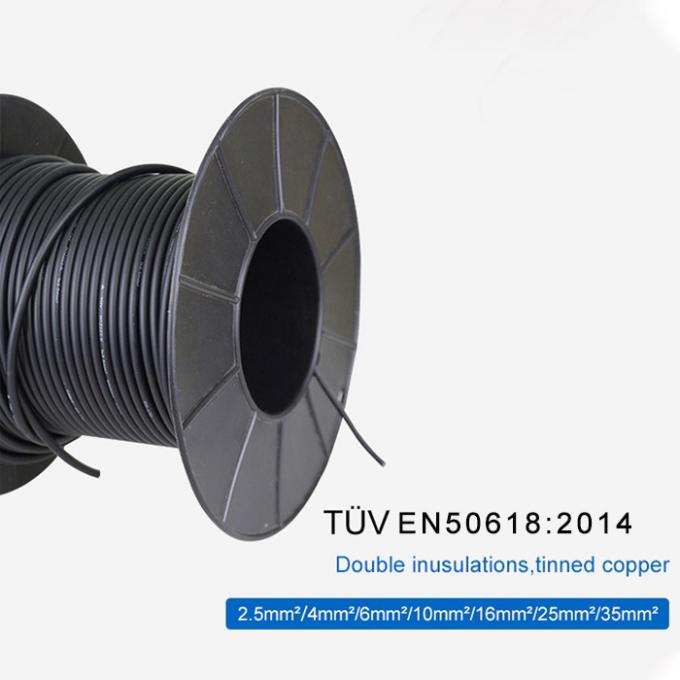

H1Z2Z2-K TUV Single Core 1x4mm² PV Cable 1500V DC with tinned copper conductor and XLPE insulation.

Key Features

Low eccentricity: Thickness uniformity prevents current breakdown fire for enhanced safety
Double protection: Insulation and jacket structure extends cable service life
High-performance materials: Environmentally friendly low-smoke halogen-free flame-retardant cross-linked polyolefin materials with excellent wear, temperature, and UV resistance
Superior flexibility: Excellent pressure, bending, and toughness characteristics
Long service life: >25 years in normal outdoor conditions
Quality manufacturing: Advanced production equipment and ISO9001-2000 certified quality management

Technical Specifications

Parameter	Specification
Name	Single-core solar cable
Executive standard	EN 50618
Model	H1Z2Z2-K
Available sizes	2.5/4/6/10/16/25/35mm²
Rated Voltage	1500V
Testing Voltage	6.5KV
Temperature range	-40~120ºC (conductor), -40~90ºC (ambient)
Short circuit temperature	250ºC
Bending radius	>4×Ø(Ø<8mm) >6×Ø(Ø≥8mm)
Available colors	Black, Red

Applications

Ideal for solar panel power generation systems and related component wiring, particularly suited for outdoor installations. Features excellent sunlight resistance, anti-aging properties, and uses low smoke halogen-free flame retardant materials for enhanced safety.

Electrical Properties

DC resistance: ≤5.09 Ω/km at 20℃
Insulation resistance: ≥10¹⁴ Ω.cm at 20℃, ≥10¹¹ Ω.cm at 90℃
Sheath surface resistance: ≥10⁹ Ω

Cable Structure

Conductor: Tinned copper wire (2.5-35mm²)
Insulation: >0.5mm thick low smoke halogen-free material
Sheath: >0.5mm thick low smoke halogen-free material

Note: We also produce single core cables in 2.5mm², 6mm², 10mm² and 16mm² sizes, as well as dual core variants. Please contact us for custom requirements.

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of receiving your inquiry. For urgent requests, please call us with complete cable specifications for immediate pricing.

How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.

What payment methods do you accept?

We accept T/T (bank transfer) and L/C.

Do you accept customized orders?

Yes, we accommodate custom specifications.

Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.
