Tuv And Ce 100m Solar Panel Wire 4mm2 Dc Solar Photovoltaic Cable
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||Solar Panel Wire 4mm2||Insulation||XLPO|
|Struction||56/0.285mm||Rate Voltage||1KV AC 1500V DC|
|Color||Black And Red|
tuv solar photovoltaic cable,
ce solar photovoltaic cable,
100m solar photovoltaic cable
Good Quality TUV and CE 100M Solar Panel wire 4mm2 dc Solar Photovoltaic Cable
Solar cables are made of tinned copper, solar cable 4.0mm solar cable cross-linked Polyolefin Compound and zero halogen polyolefin compound.
The cable is ozone-resistant according to EN50618, UV-resistant according to UNE-HD 605:2008 (HD605/A1), tested for durability according to EN 60216 and designed to last 25 years.
H1Z2Z2-K 1x6mm2 is a single pole, double insulted 6mm² tinned copper wire in 200m length.
Envisaging the above information solar energy and its main source solar cables are very safe, durable, resistant to environmental impacts and very reliable. What is more important they will do no harm to the environment and there is no fear that there will be the power cut off or some other problems, what the majority of the population is facing during power provision problems. No matter what, houses or offices will have a guaranteed current and they will not be interrupted during working, no time is wasted, not much money is spent and no hazardous fumes are emitted during its working causing so much damage to heat and to nature.
Rated temperature: -40~90C
Rated Rating:DC:1/1.8kv AC:0.6kv
Rated Current: 41~98A
Weathering Resistance: Sun Res
|TYPE||Cross section||Wire struct||Conductor diameter||Outer diameter||Conductor resistance||Rated voltage||Rated current|
|mm2||No.OD (mm)||mm||mm||Ω/Km||V AC/DC||A|
· Dual wall insulation.Electron beam cross-linked
· Excellent resistance to U.V,oil,greases,oxygen and ozone
· Excellent resistance to abrasion
· Halogen free, flame retardant,low toxicity
· Excellent flexibility and stripping performance
· High Voltage and Current carring capacity
· TUV approved
have a lot of benefits besides being nature-friendly they stand out among others with durability that lasts around 30 years regardless of the weather condition, temperatures and they are ozone resistant. Solar cables are protected against ultraviolet rays. It is characterized with low smoke emission, less toxicity, and corrosivity in the fire. Solar cables can withstand flames and fire, they can be easily installed and they are recycled without problems as modern regulations about environment require. Their different colors enable their fast identification.
Standard Export package:
200m/roll,1000m/roll on the pallet or wooden drum
Within 3-10 working Days once Order Confirmed
Port: Ningbo, or other ports as per your requireents.
Sea freight:FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency

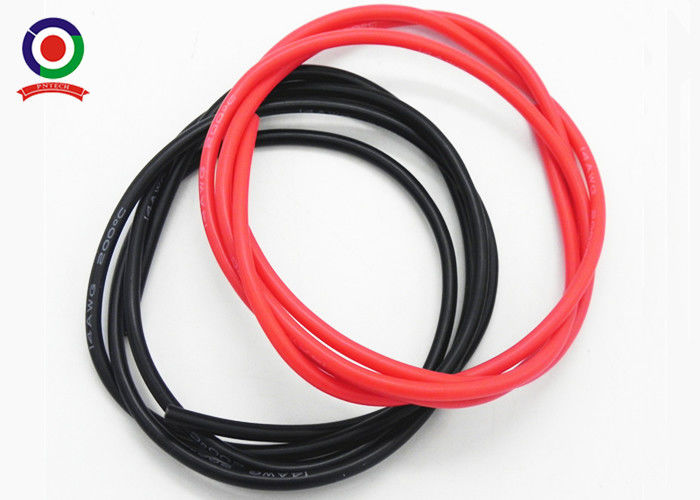

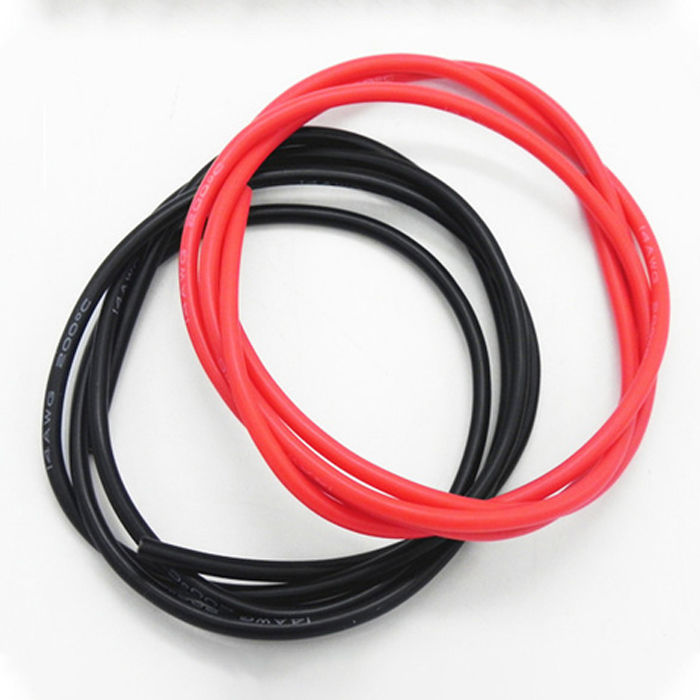

Photo of PV 4mm2 solar dc cable 12AWG
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
