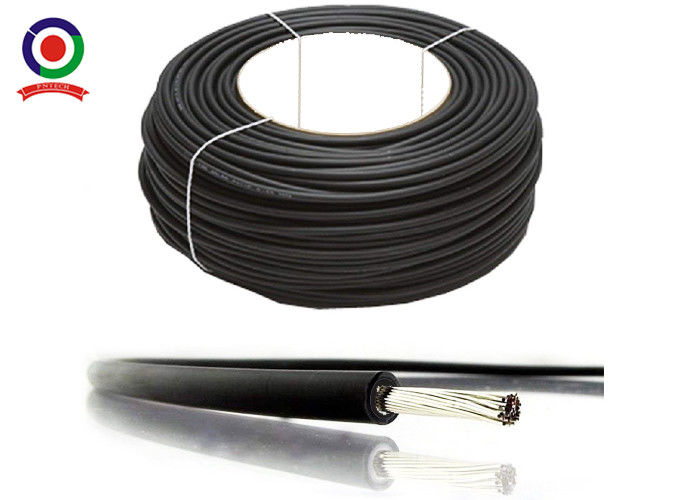

Electrical Wires 10awg Tinned Copper Pv Cable 4mm2 For Strip Solar Panel

Name: Electrical Wires 10awg Tinned Copper Pv Cable 4mm2 For Strip Solar Panel
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x6mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x6mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m

Price: Negotiation

Packaging Details: 200m/roll export carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 50000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            tinned copper pv cable 4mm2, 10awg pv cable 4mm2, 4mm pv cable 10awg


Product Name:	Electrical Wires 10AWG	Insulation:	XLPO
Packing:	200m/roll	Conductor:	Tinned Copper
Struction:	84/0.285mm	Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Product Name:	Electrical Wires 10AWG
Insulation:	XLPO
Packing:	200m/roll
Conductor:	Tinned Copper
Struction:	84/0.285mm
Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Description

Electrical Wires 10awg Tinned Copper Pv Cable 4mm2 For Strip Solar Panel

Electrical Wires 10AWG Tinned Copper PV Cable 4mm² for Solar Panel

Product Specifications

Attribute	Value
Product name	Electrical Wires 10AWG
Insulation	XLPO
Packing	200m/roll
Conductor	Tinned copper
Structure	84/0.285mm
Rated Voltage	1KV AC 1500V DC
Color	Black and Red

Product Description

High-performance 10AWG tinned copper solar cable designed for photovoltaic panel installations, featuring exceptional durability and environmental resistance.

Key Features

Flame and fire resistant construction
Easy installation and environmentally friendly recycling
Ozone-resistant (EN50618) and UV-resistant (UNE-HD 605:2008)
25-year durability tested (EN 60216)
Single pole, double insulated tinned copper wire

Technical Parameters

Cross-Section: 1x6mm²
Rated temperature: -40°C to 90°C
Rated Voltage: DC 1/1.8kV, AC 0.6kV
Rated Current: 41-98A
Weather Resistance: Sun resistant

Detailed Specifications

Type	Cross section (mm²)	Wire structure	Conductor diameter (mm)	Outer diameter (mm)	Conductor resistance (Ω/Km)	Rated voltage (V AC/DC)	Rated current (A)
1X4.0mm²	4	56XΦ0.285	2.6	5.5	5.09	1000/1800	50
1X6.0mm²	6	84XΦ0.285	3.3	6.1	3.39	1000/1800	70
1X10mm²	10	80XΦ0.40	4.4	7.2	2.12	1000/1800	95

Product Advantages

Dual wall insulation with electron beam cross-linking
Excellent resistance to UV, oil, greases, oxygen and ozone
Superior abrasion resistance
Halogen free, flame retardant with low toxicity
Exceptional flexibility and stripping performance
High voltage and current carrying capacity
TUV approved for quality assurance

Packaging Information

Standard export package: 200m/roll or 1000m/roll on pallet or wooden drum

Delivery Information

Delivery within 3-10 working days after order confirmation
Shipping ports: Ningbo or other specified ports
Available shipping terms: FOB, C&F, CIF
Special competitive sea freight rates available for select regions

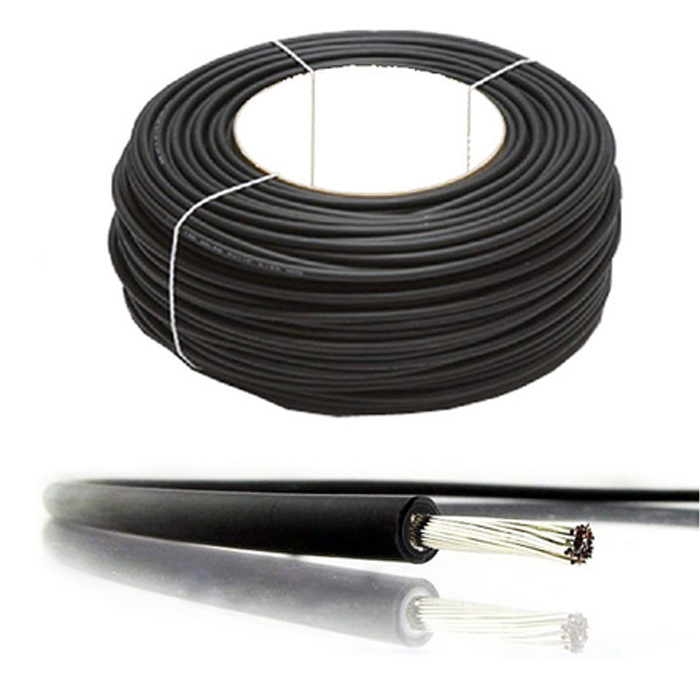

Product Image

Frequently Asked Questions

1. When can I get the quotation?

Within 24 hours of receiving your inquiry. For urgent requests, please contact us directly with complete specifications.

2. How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.

3. What payment methods do you accept?

We accept T/T (bank transfer) and L/C.

4. Do you accept customized orders?

Yes, we accommodate customized orders.

5. Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.
