100meters Roll Copper Conductor Xlpe Jacket Tuv 12awg 4mm2 Solar Cable Pv Wire

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m

Price: Negotiation

Packaging Details: 200m/roll export carton

Delivery Time: 3-10days

Payment Terms: L/C, T/T

Supply Ability: 50000m per day

Get Best Price
Contact Now
Specifications
Highlight:

100meters roll solar pv cable

,

12awg solar pv cable

,

4mm2 solar pv cable

Product Name:
12AWG 4mm2 Solar Cable PV Wire
Insulation:
XLPO
Packing:
100m/roll
Conductor:
Tinned Copper
Struction:
56/0.285mm
Rate Voltage:
1KV AC 1500V DC
Color:
Black And Red
Product Name:
12AWG 4mm2 Solar Cable PV Wire
Insulation:
XLPO
Packing:
100m/roll
Conductor:
Tinned Copper
Struction:
56/0.285mm
Rate Voltage:
1KV AC 1500V DC
Color:
Black And Red
Description
100meters Roll Copper Conductor Xlpe Jacket Tuv 12awg 4mm2 Solar Cable Pv Wire

100Meters Roll Copper Conductor XLPE Jacket TUV 12AWG 4mm2 Solar Cable PV Wire



Solar cables should also be resistant to impact, abrasion and tear, its minimum bending radius should be not more than 4 times of overall diameter.

The cable is ozone-resistant according to EN50618, UV-resistant according to UNE-HD 605:2008 (HD605/A1), tested for durability according to EN 60216 and designed to last 25 years.

H1Z2Z2-K 1x6mm2 is a single pole, double insulted 6mm² tinned copper wire in 200m length.



Cross-Section: 1x4mm2

Rated temperature: -40~90C

Rated Rating:DC:1/1.8kv AC:0.6kv

Rated Current: 41~98A

Weathering Resistance: Sun Res



Specification:



TYPE Cross section Wire struct Conductor diameter Outer diameter Conductor resistance Rated voltage Rated current
mm2 No.OD (mm) mm mm Ω/Km V AC/DC A
1X2.5mm2 2.5 48XΦ0.285 2 5.2 8.06 1000/1800 30
1X4.0mm2 4 56XΦ0.285 2.6 5.9 5.09 1000/1800 50
1X6.0mm2 6 84XΦ0.285 3.3 6.6 3.39 1000/1800 70
1X10mm2 10 80XΦ0.40 4.4 8.3 2.12 1000/1800 95
2X2.5mm2 2.5 48XΦ0.25 2 6.2*9.90 8.06 1000/1800 30
2X4.0mm2 4 56XΦ0.30 2.6 6.9*11.30 4.97 1000/1800 50
2X6.0mm2 6 81XΦ0.30 3.3 7.1*14.50 3.52 1000/1800 70



Envisaging the above information solar energy and its main source solar cables are very safe, durable, resistant to environmental impacts and very reliable. What is more important they will do no harm to the environment and there is no fear that there will be the power cut off or some other problems, what the majority of the population is facing during power provision problems. No matter what, houses or offices will have a guaranteed current and they will not be interrupted during working, no time is wasted, not much money is spent and no hazardous fumes are emitted during its working causing so much damage to heat and to nature.



Advantage:



· Dual wall insulation.Electron beam cross-linked

· Excellent resistance to U.V,oil,greases,oxygen and ozone

· Excellent resistance to abrasion

· Halogen free, flame retardant,low toxicity

· Excellent flexibility and stripping performance

· High Voltage and Current carring capacity

· TUV approved



Solar cables have a lot of benefits besides being nature-friendly they stand out among others with durability that lasts around 30 years regardless of the weather condition, temperatures and they are ozone resistant. Solar cables are protected against ultraviolet rays. It is characterized with low smoke emission, less toxicity, and corrosivity in the fire. Solar cables can withstand flames and fire, they can be easily installed and they are recycled without problems as modern regulations about environment require. Their different colors enable their fast identification.

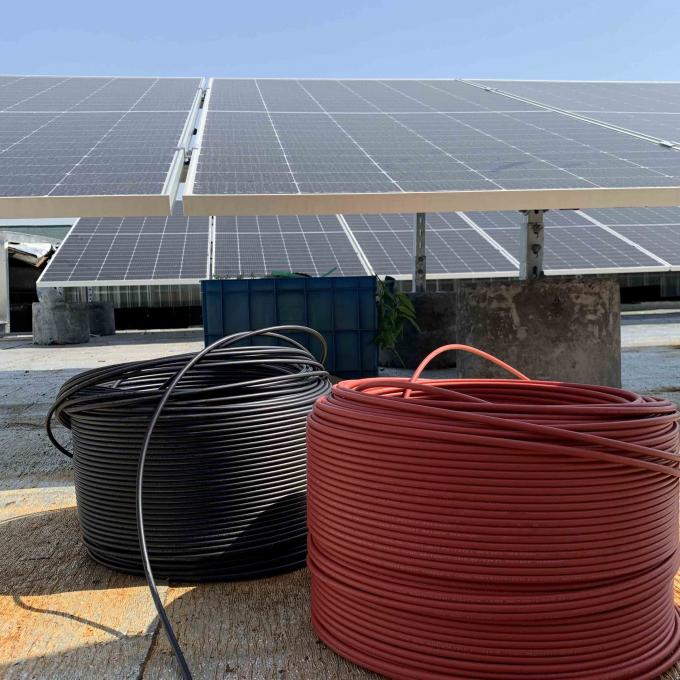

Photo of PV 4mm2 solar cable pv wire 12AWG

100meters Roll Copper Conductor Xlpe Jacket Tuv 12awg 4mm2 Solar Cable Pv Wire 0



Packing:



Standard Export package:

200m/roll,1000m/roll on the pallet or wooden drum



Delivery:



Within 3-10 working Days once Order Confirmed

Port: Ningbo, or other ports as per your requireents.
Sea freight:FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency



FAQ:



1. When can I get the quotation?

Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

We accept T/T (bank transfer), L/C

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM are available.
