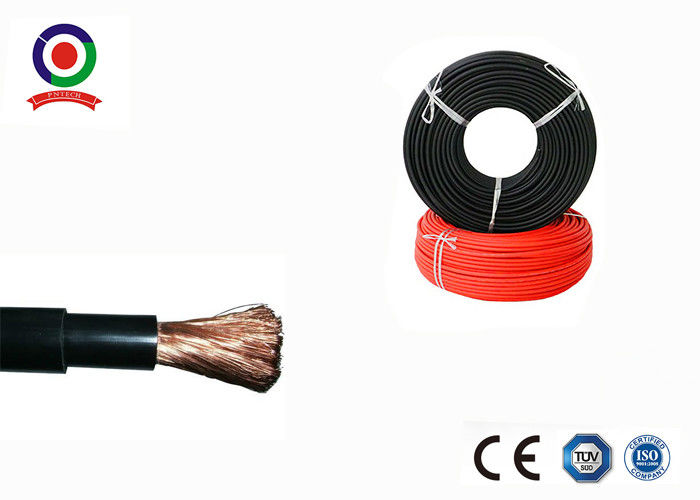

Ultraviolet Resistant Solar PV Cable 4mm2 XLPE Double Insulation Black / Red

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: TUV/CE/ISO9001

Model Number: PV1-F 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 250m / roll

Price: Negotiation

Packaging Details: 250m per roll 500m per carton size 42x42x22cm

Delivery Time: 3-7days

Payment Terms: L/C, T/T

Supply Ability: 70000m per day

Get Best Price
Contact Now
Specifications
Highlight:

pv dc cable

,

solar photovoltaic cable

Product Name:
Solar Cable 4mm2
Application:
Power Station
Conductor Material:
Stranded Tinned Copper
Cable OD:
6.0mm
Structure:
56/0.3mm
Rated Voltage:
AC Uo/U0.6~1.0KV , DC1.8KV
Product Name:
Solar Cable 4mm2
Application:
Power Station
Conductor Material:
Stranded Tinned Copper
Cable OD:
6.0mm
Structure:
56/0.3mm
Rated Voltage:
AC Uo/U0.6~1.0KV , DC1.8KV
Description
Ultraviolet Resistant Solar PV Cable 4mm2 XLPE Double Insulation Black / Red



UV Resistance XLPE double insulation pv1-f photovoltaic solar cable 4mm2 Black



PV1-F tinned copper pv solar cable 4mm2



1. Nominal Voltage:U0/U=600/1000V AC, 1000/1800V DC ;
2. Test Voltage:6500V,50Hz,5Min.
3. Temperature Rating:45oC upto+125oC, -40oF upto+257oF, Ambient temperature:25years(TUV) -40oC upto+90oC, -40oF upto+194oF, Max.Short circuit temperature:280oC, +536oF.
4. Bending Radius:Fixed installation>4X Occasionally moved>5X



Type Cross Strand Conductor Conductor Outer Rated Rated Weight
section design diameter resistance diameter voltage current
mm² No.x ø (mm) mm Ω /km mm VAC/DC A Kg/km
PV-1*1.5 mm² 1.5 30x ø 0.25 1.6 13.5 4.8 1000/1800 30 35
PV-1*2.5 mm² 2.5 50x ø 0.25 2.0 8.21 5.3 1000/1800 41 50
PV-1*4.0 mm² 4.0 56x ø 0.3 2.6 5.09 6.1 1000/1800 55 70
PV-1*6.0 mm² 6.0 84x ø 0.3 3.3 3.39 7.1 1000/1800 70 95
PV-1*10.0 mm² 10.0 80x ø 0.4 4.4 1.95 8.5 1000/1800 98 155
PV-1*16 mm² 16.0 120x ø 0.4 5.2 1.24 10.2 1000/1800 132 230
PV-1*25 mm² 25.0 196x ø 0.40 7.4 0.795 12.0 1000/1800 176 341
PV-1*35 mm² 35.0 276x ø 0.40 9.00 0.565 14.0 1000/1800 218 467



Fire Resistant Cables Description:



A. Application:Double insulation,electron-beam cross linked cables for photovotaic power station.

Construction:Tinned copper,according toVDE0295/IEC60228,Class5

B. Material Properties/Standards:

1. Fire-resistant performance:IEC60332-1.

2. Smoke emission:IEC61034;EN50268-2

3. Low fire load:DIN51900

4. Approvals:TUV2PfG 1169/08.2007 PV1-F.

5. Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502


Application :

Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .



Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F
25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 2.5mm2, 6mm2 10mm2 and 16mm2, as well as dual cores,

please consult me directly if necessary)

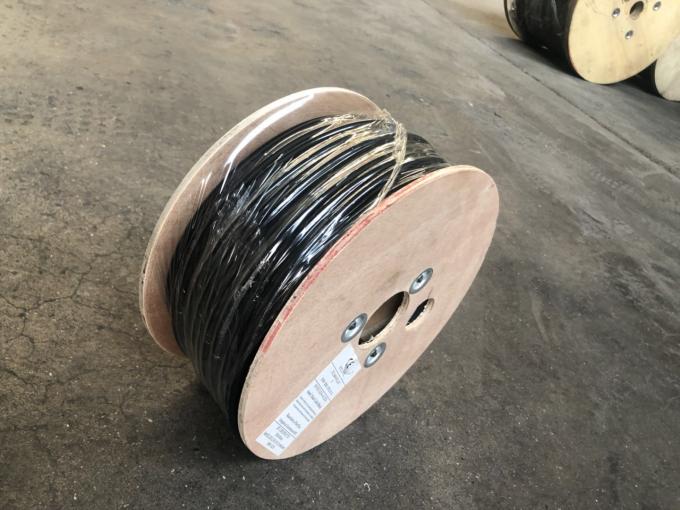

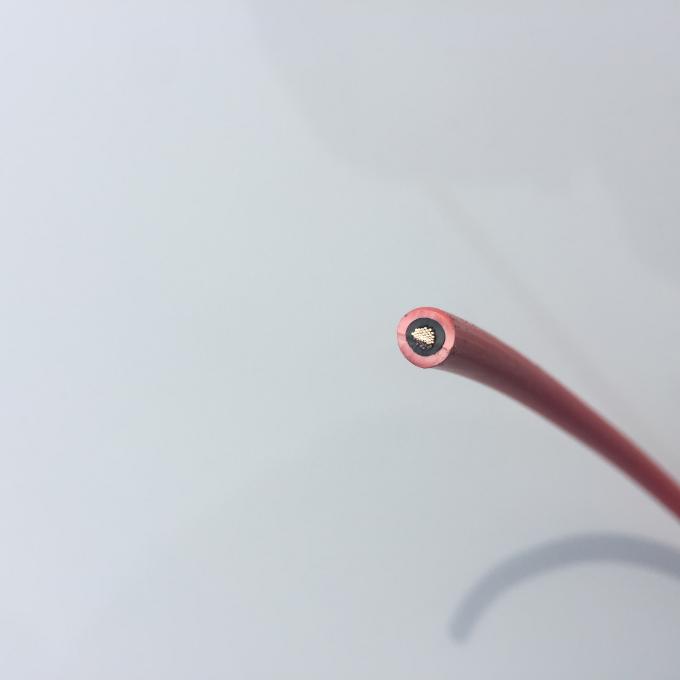

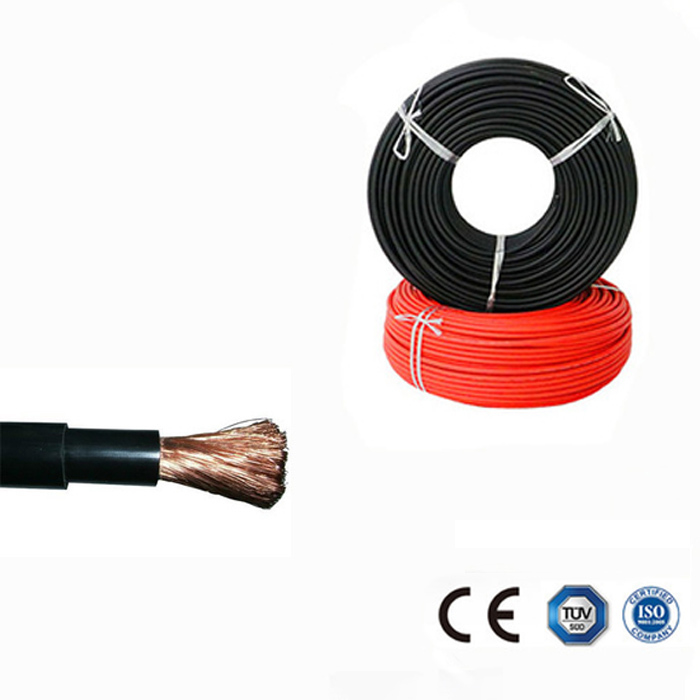

Pictures of 4mm2 DC Solar Cable

Ultraviolet Resistant Solar PV Cable 4mm2 XLPE Double Insulation Black / Red 0

Ultraviolet Resistant Solar PV Cable 4mm2 XLPE Double Insulation Black / Red 1

FAQ:



1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please

call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?
We accept T/T (bank transfer), L/C

4. Do you accept the customized order?
Yes, we do.

5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
