Black / Red Solar PV Cable 10mm2 Tinned Copper Conductor For Solar Power Station

China Black / Red Solar PV Cable 10mm2 Tinned Copper Conductor For Solar Power Station supplier
Black / Red Solar PV Cable 10mm2 Tinned Copper Conductor For Solar Power Station supplier Black / Red Solar PV Cable 10mm2 Tinned Copper Conductor For Solar Power Station supplier

Large Image :  Black / Red Solar PV Cable 10mm2 Tinned Copper Conductor For Solar Power Station

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: PV1-F 1x10mm2

Payment & Shipping Terms:

Minimum Order Quantity: 100m / roll
Price: Negotiation
Packaging Details: 100m per roll 200m per carton size 42x42x22cm
Delivery Time: 3-7days
Payment Terms: L/C, T/T
Supply Ability: 70000m per day
Contact Now
Detailed Product Description
Product Name: Pv Solar Cable 10mm2 Type: High Voltage
Conductor Material: Stranded Tinned Copper Cable OD: 8.5mm
Structure: 80/0.4mm Rated Voltage: AC Uo/U0.6~1.0KV , DC1.8KV



25years lifespan Black 10mm2 tinned copper PV Solar Cable for solar power station



PV1-F tinned copper PV solar cable 10mm2



Specifically designed for connecting photovoltaic system components inside and

outside of building and equipment with high mechanical requirements and extreme weather

conditions .For permanent installations.



Type Cross Strand Conductor Conductor Outer Rated Rated Weight
section design diameter resistance diameter voltage current
mm² No.x ø (mm) mm Ω /km mm VAC/DC A Kg/km
PV-1*1.5 mm² 1.5 30x ø 0.25 1.6 13.5 4.8 1000/1800 30 35
PV-1*2.5 mm² 2.5 50x ø 0.25 2.0 8.21 5.3 1000/1800 41 50
PV-1*4.0 mm² 4.0 56x ø 0.3 2.6 5.09 6.1 1000/1800 55 70
PV-1*6.0 mm² 6.0 84x ø 0.3 3.3 3.39 7.1 1000/1800 70 95
PV-1*10.0 mm² 10.0 80x ø 0.4 4.4 1.95 8.5 1000/1800 98 155
PV-1*16 mm² 16.0 120x ø 0.4 5.2 1.24 10.2 1000/1800 132 230
PV-1*25 mm² 25.0 196x ø 0.40 7.4 0.795 12.0 1000/1800 176 341
PV-1*35 mm² 35.0 276x ø 0.40 9.00 0.565 14.0 1000/1800 218 467



Fire Resistant Cables Description:



A. Application:Double insulation,electron-beam cross linked cables for photovotaic power station.

Construction:Tinned copper,according toVDE0295/IEC60228,Class5

B. Material Properties/Standards:

1. Fire-resistant performance:IEC60332-1.

2. Smoke emission:IEC61034;EN50268-2

3. Low fire load:DIN51900

4. Approvals:TUV2PfG 1169/08.2007 PV1-F.

5. Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502


Application :

Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .



Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F
25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 2.5mm2, 4mm2, 6mm2 and 16mm2, as well as dual cores,

please consult me directly if necessary)

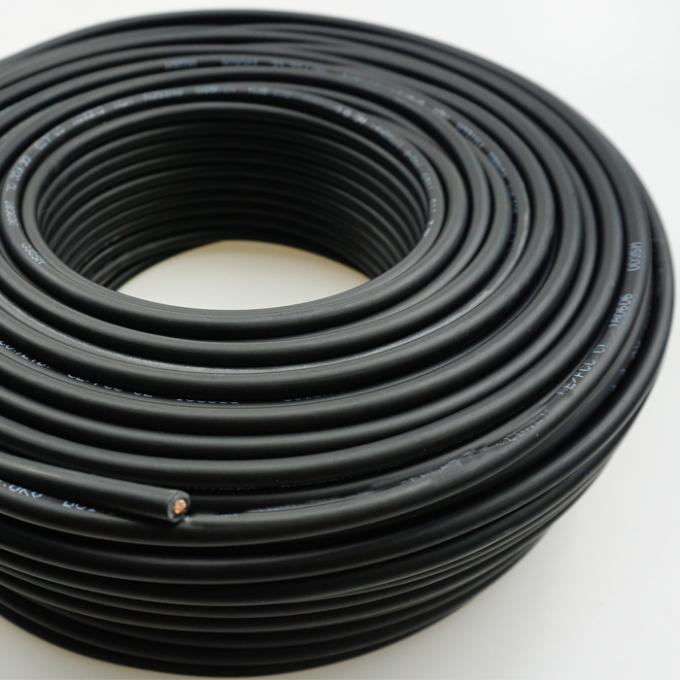

Pictures of 10mm2 PV Solar Cable

Black / Red Solar PV Cable 10mm2 Tinned Copper Conductor For Solar Power Station
