TUV CE 6mm² Solar Panel Extension Cable PV Cable 10AWG Wire 200M Black XLPO

Name: TUV CE 6mm² Solar Panel Extension Cable PV Cable 10AWG Wire 200M Black XLPO
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x6mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x6mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m

Price: Negotiation

Packaging Details: 200m/roll export carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 50000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            6mm2 10 awg solar cable, ce 6mm solar panel cable, 6mm solar panel cable 200M


Product Name:	Solar 6mm2 Cable 10AWG	Insulation:	XLPO
Packing:	200m/roll	Conductor:	Tinned Copper
Struction:	84/0.285mm	Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Product Name:	Solar 6mm2 Cable 10AWG
Insulation:	XLPO
Packing:	200m/roll
Conductor:	Tinned Copper
Struction:	84/0.285mm
Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Description

TUV CE 6mm² Solar Panel Extension Cable PV Cable 10AWG Wire 200M Black XLPO

Product Specifications

Attribute	Value
Product name	Solar 6mm2 cable 10AWG
Insulation	XLPO
Packing	200m/roll
Conductor	Tinned copper
Structure	84/0.285mm
Rated Voltage	1KV AC 1500V DC
Color	Black and Red

Product Description

This extension cable connects solar panels to charge controllers or links multiple panels, enabling flexible solar power system configurations. The ozone-resistant cable meets EN50618 standards and UV-resistant according to UNE-HD 605:2008 (HD605/A1), with durability tested to EN 60216 for a 25-year lifespan.

H1Z2Z2-K 1x6mm2 features single pole, double insulated 6mm² tinned copper wire in 200m lengths.

Technical Specifications

Cross-Section: 1x6mm²
Rated temperature: -40°C to 90°C
Rated Voltage: DC 1/1.8kV, AC 0.6kV
Rated Current: 41-98A
Weather Resistance: Sun resistant

Detailed Specifications

Type	Cross section	Wire structure	Conductor diameter	Outer diameter	Conductor resistance	Rated voltage	Rated current
1X4.0mm²	4	56XΦ0.285	2.6mm	5.5mm	5.09Ω/Km	1000/1800V	50A
1X6.0mm²	6	84XΦ0.285	3.3mm	6.1mm	3.39Ω/Km	1000/1800V	70A
1X10mm²	10	80XΦ0.40	4.4mm	7.2mm	2.12Ω/Km	1000/1800V	95A

Key Advantages

Dual wall insulation with electron beam cross-linking
Excellent resistance to UV, oil, greases, oxygen and ozone
Superior abrasion resistance
Halogen free, flame retardant with low toxicity
Exceptional flexibility and stripping performance
High voltage and current carrying capacity
TUV approved for quality assurance

Packaging Information

Standard export packaging: 200m/roll or 1000m/roll on pallets or wooden drums

Delivery Information

Delivery within 3-10 working days after order confirmation. Shipping options include FOB, C&F, and CIF from Ningbo port or other specified ports. Special competitive sea freight rates available for select regions.

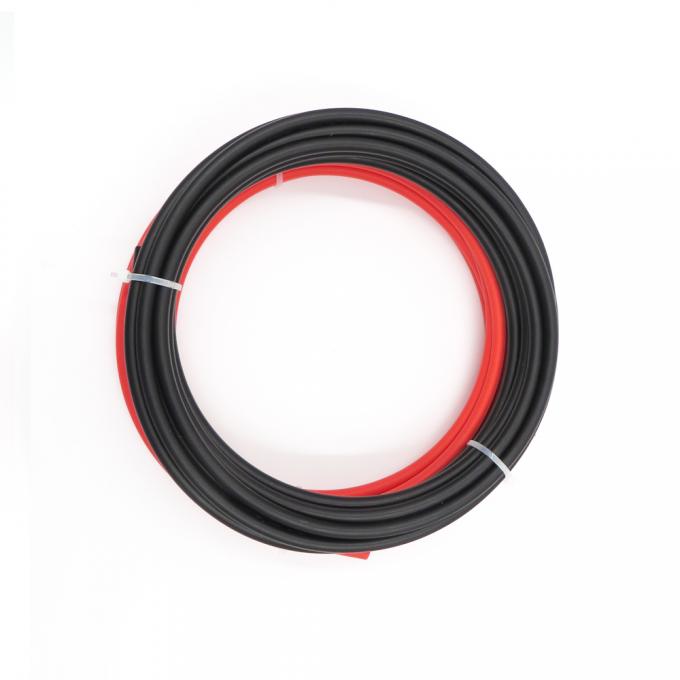

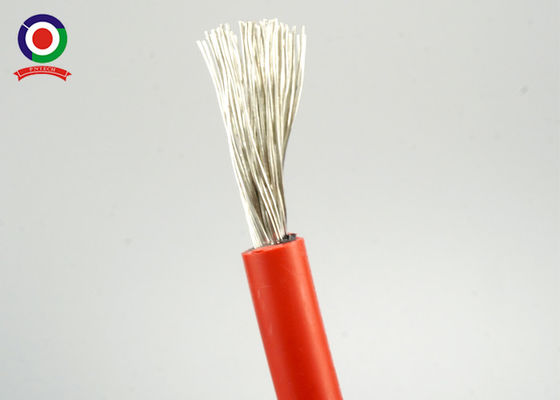

Product Image

Frequently Asked Questions

1. When can I get the quotation?

Within 24 hours of inquiry. Urgent requests can be expedited by phone with complete specifications.

2. How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.

3. What payment methods do you accept?

We accept T/T (bank transfer) and L/C.

4. Do you accept customized orders?

Yes, we accommodate customized specifications.

5. Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.
