TUV Standard DC Solar PV Cable PV1-F 1x4mm2 Wire Copper Conductor XLPE Jacket

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: ISO9001/TUV/CE

Model Number: PV1-F 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 100m

Price: Negotiation

Packaging Details: 100m/roll, 500m per carton

Delivery Time: 3-10days

Payment Terms: L/C, T/T

Supply Ability: 70000m per day

Get Best Price
Contact Now
Specifications
Highlight:

solar dc cable

,

solar photovoltaic cable

Product Name:
4mm2 Solar PV Cable
Conductor Size:
56/0.285mm
Conductor:
Tinned Copper
Cable OD:
5.9mm
Packing:
100m/roll
Temperature Range:
-40℃~+90℃
Product Name:
4mm2 Solar PV Cable
Conductor Size:
56/0.285mm
Conductor:
Tinned Copper
Cable OD:
5.9mm
Packing:
100m/roll
Temperature Range:
-40℃~+90℃
Description
TUV Standard DC Solar PV Cable PV1-F 1x4mm2 Wire Copper Conductor XLPE Jacket



TUV Standard 4mm2 PV1-F DC Solar PV Cable Wire Copper Conductor XLPE Jacket



Product description



Specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions .

For permanent installations.Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone, UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free , flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely mechanically robust, 25 years lifetime.



Technical Data



Type Cross Strand Conductor Conductor Outer Rated Rated Weight
section design diameter resistance diameter voltage current
mm² No.x ø (mm) mm Ω /km mm VAC/DC A Kg/km
PV-1*1.5 mm² 1.5 30x ø 0.25 1.6 13.5 4.8 1000/1800 30 35
PV-1*2.5 mm² 2.5 50x ø 0.25 2.0 8.21 5.3 1000/1800 41 50
PV-1*4.0 mm² 4.0 56x ø 0.3 2.6 5.09 6.1 1000/1800 55 70
PV-1*6.0 mm² 6.0 84x ø 0.3 3.3 3.39 7.1 1000/1800 70 95
PV-1*10.0 mm² 10.0 80x ø 0.4 4.4 1.95 8.5 1000/1800 98 155
PV-1*16 mm² 16.0 120x ø 0.4 5.2 1.24 10.2 1000/1800 132 230
PV-1*25 mm² 25.0 196x ø 0.40 7.4 0.795 12.0 1000/1800 176 341
PV-1*35 mm² 35.0 276x ø 0.40 9.00 0.565 14.0 1000/1800 218 467


Application :



Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.



Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4,6,10,16 mm2 PV1 - F
25,16 and 10, 6,4,2.5 mm2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

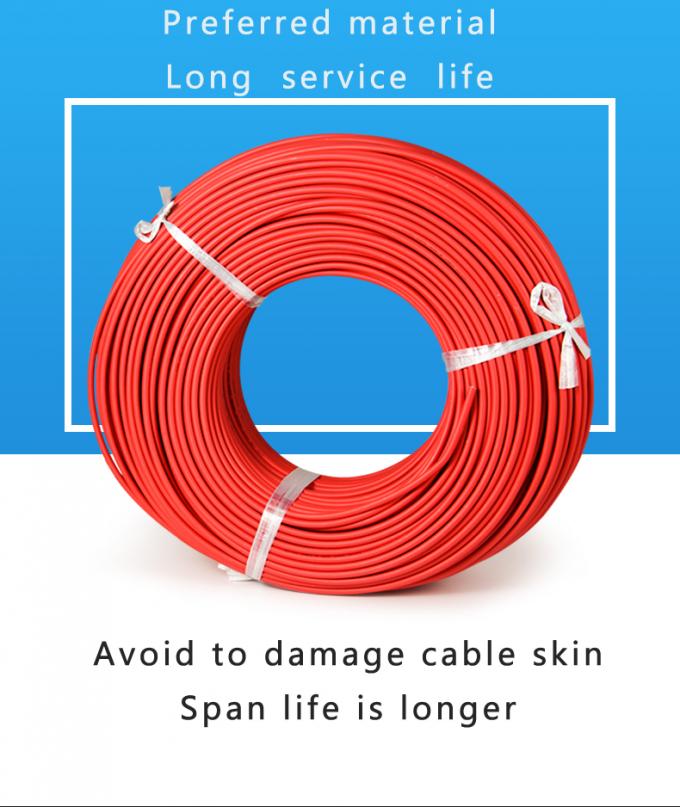

Picture of 4mm2 solar pv cable
