Oils Resistant TUV Solar Cable 6mm2 Stable Performance High Current Carrying Capacity

Name: Oils Resistant TUV Solar Cable 6mm2 Stable Performance High Current Carrying Capacity
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV1-F 1x6mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: PV1-F 1x6mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m / roll

Price: Negotiation

Packaging Details: 200m per roll 400m per carton size 42x42x22cm

Delivery Time: 3-7days

Payment Terms: L/C,T/T

Supply Ability: 70000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    solar dc cable, pv dc cable


Product Name:	Solar Panel Cable 6mm2	Application:	Power Station
Conductor Material:	Stranded Tinned Copper	Cable OD:	7.0mm
Structure:	84/0.3mm	Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.8KV

Product Name:	Solar Panel Cable 6mm2
Application:	Power Station
Conductor Material:	Stranded Tinned Copper
Cable OD:	7.0mm
Structure:	84/0.3mm
Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.8KV

Description

Oils Resistant TUV Solar Cable 6mm2 Stable Performance High Current Carrying Capacity

Oils Resistant TUV Solar Cable 6mm² - Stable Performance High Current Carrying Capacity

Product Specifications

Attribute	Value
Product Name	solar panel cable 6mm²
Application	Power station
Conductor Material	Stranded Tinned copper
Cable OD	7.0mm
Structure	84/0.3mm
Rated Voltage	AC Uo/U0.6~1.0KV , DC1.8KV

Product Description

TUV certified XLPE double insulation PV solar panel cable 6mm² with UV resistance.

PV1-F tinned copper PV solar panel cable 6mm² construction:

Tinned copper conductor according to VDE0295/IEC60228, Class 5
Fire-resistant performance: IEC60332-1
Smoke emission: IEC61034; EN50268-2
Low fire load: DIN51900
Approvals: TUV2PfG 1169/08.2007 PV1-F
Application Standards: UNE211 23; UNE20.460-5-52, UTE C 32-502

Technical Parameters

Type	Cross section (mm²)	Strand design	Conductor diameter (mm)	Conductor resistance (Ω/km)	Outer diameter (mm)	Rated voltage (VAC/DC)	Rated current (A)	Weight (Kg/km)
PV-1*2.5 mm²	2.5	50x ø 0.25	2.0	8.21	4.9	1000/1800	41	50
PV-1*4.0 mm²	4.0	56x ø 0.3	2.6	5.09	5.5	1000/1800	55	70
PV-1*6.0 mm²	6.0	84x ø 0.3	3.3	3.39	6.1	1000/1800	70	95
PV-1*10.0 mm²	10.0	80x ø 0.4	4.4	1.95	7.2	1000/1800	98	155

Fire Resistant Cables Description

Application: Double insulation, electron-beam cross linked cables for photovoltaic power stations.

Applied to: Solar panels for power generation and related components of the wiring connection, particularly suitable for outdoor use. Features resistance to sunlight, anti-aging properties, using low smoke halogen-free flame retardant materials for higher safety grade.

Product Features

Low smoke without halogen
Excellent cold, UV, ozone and weather resistance
Flame retardant with cutting and penetration resistance
Cable protection level II
150℃ photovoltaic cable radiation as insulation materials
Conforms to ROHS standards

Electrical Properties

DC resistance: ≤5.09 Ω/km at 20℃
Insulation resistance: ≥1014 Ω.cm at 20℃
Sheath surface resistance: ≥109 Ω

Cable Structure

Conductor: Tinned copper wire 2.5, 4, 6, 10, 16 mm² PV1-F
Insulation: >0.5mm thick low smoke and halogen material
Sheath: Low smoke and halogen free material thickness >0.5mm

Operating Parameters

Ambient temperature: -40℃ ~ +90℃
Maximum conductor temperature: 120℃ (200℃ for 5s in short circuit)
Limited voltage: AC0.6/1kV DC1.8kV

We also produce single core of 2.5mm², 4mm², 10mm² and 16mm², as well as dual cores. Please contact us for custom requirements.

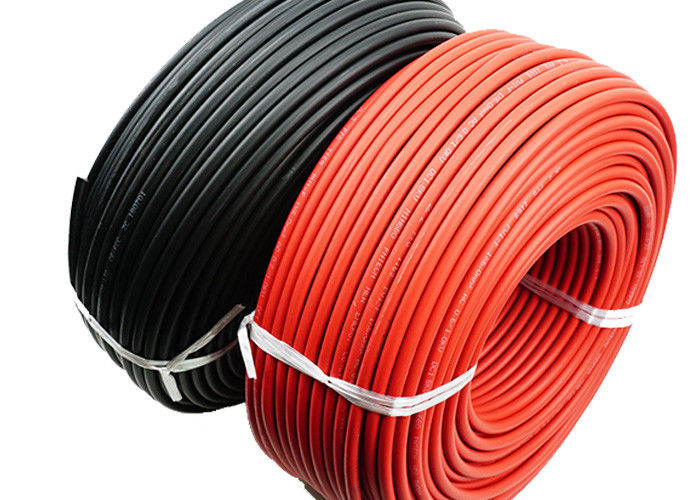

Product Image

Frequently Asked Questions

1. When can I get the quotation?

Within 24 hours of getting the inquiry. For urgent pricing, please call us with complete cable specifications.

2. How long about the delivery?

Usually within 3-4 working days after payment, depending on order quantity.

3. What's your payment terms?

We accept T/T (bank transfer) and L/C.

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes, OEM & ODM services are available.
