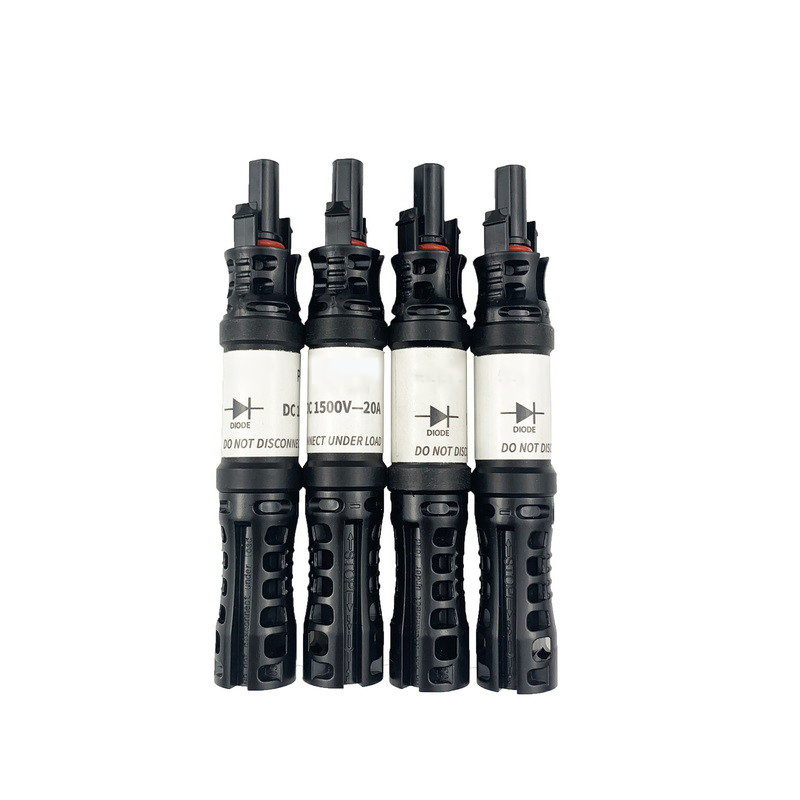

1500V IP67 Solar Diode Connector for 2.5-6mm² Wires

Name: 1500V IP67 Solar Diode Connector for 2.5-6mm² Wires
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV005-D
Availability: InStock

Product Details

Place of Origin: China

Certification: CE

Model Number: PV005-D

Payment & Shipping Terms

Minimum Order Quantity: 50

Price: Negotiation

Packaging Details: PP Bag

Delivery Time: 10days

Payment Terms: T/T

Supply Ability: 3k per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Solar Panel Connection Diode Connector


Feature:	Water Proof	Ip Rating:	IP67
Operating Temperature:	-40°C To +85°C	Rated Voltage:	1500V
Insulation Resistance:	≥1000MΩ	Color:	Black
Packing:	PP Bag	Connector:	Female And Male

Feature:	Water Proof
Ip Rating:	IP67
Operating Temperature:	-40°C To +85°C
Rated Voltage:	1500V
Insulation Resistance:	≥1000MΩ
Color:	Black
Packing:	PP Bag
Connector:	Female And Male

Description

1500V IP67 Solar Diode Connector for 2.5-6mm² Wires

1500V Solar Diode Connector With IP67 Waterproof Rating For Solar Panel Connection

Product Overview

The Solar Diode Connector is constructed from high-quality copper alloy, ensuring superior conductivity and long-term durability. Designed specifically for solar power applications, it offers excellent resistance to corrosion and environmental factors including prolonged sun exposure.

Key Features

Material: High-grade copper alloy construction
Compatible wire sizes: 2.5mm² to 6mm²
Color: Black
Protection rating: IP67 (dustproof and waterproof)
Rated current: 30A
Rated voltage: 1500V

Technical Specifications

Attribute	Value
Product Name	Photovoltaic Diode Connector
Feature	Water Proof
Rated Current	30A
IP Rating	IP67
Material	Copper Alloy
Rated Voltage	1500V
Withstanding Voltage	6000V AC
Color	Black
Operating Temperature	-40°C to +85°C
Connector Type	Female and Male

Applications

This 1500V Solar Diode Connector is ideal for all solar panel installations, providing secure and reliable connections between panels. Suitable for both residential and commercial applications, it features excellent insulation resistance (≥1000MΩ) and flame resistance (UL94-V0 rating).

Packaging & Shipping

Packaging: 10 connectors per pack, individually bagged in plastic for protection, shipped in sturdy cardboard boxes with user manual and warranty card.
Shipping: Standard delivery within 5-7 business days with full tracking. Minimum order quantity: 50 pieces.

Support & Services

Installation guidance and support
Troubleshooting assistance
Product testing and evaluation
Warranty and repair services
Comprehensive product documentation

Frequently Asked Questions

Where is this solar diode connector manufactured?

Manufactured in China with CE certification.

What are the payment terms?

Payment terms are T/T with negotiable pricing. Minimum order quantity is 50 pieces. Delivery time is 10 days with daily supply capacity of 3,000 units.
