15A IP67 Solar Diode Connector with DC1000V Rating

Name: 15A IP67 Solar Diode Connector with DC1000V Rating
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV004-D
Availability: InStock

Product Details

Place of Origin: China

Certification: CE/ISO9001

Model Number: PV004-D

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiation

Packaging Details: Bulk

Delivery Time: 3-10days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 5000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    solar panel cable connectors, solar wire connectors


Product Name:	Diode Connector	Current:	15A
Connector:	Female And Male	Rated Voltage:	DC1000V
Protection Degree:	IP67	Packing:	PP Bag

Product Name:	Diode Connector
Current:	15A
Connector:	Female And Male
Rated Voltage:	DC1000V
Protection Degree:	IP67
Packing:	PP Bag

Description

15A IP67 Solar Diode Connector with DC1000V Rating

UV Resistant Solar Panel Cable Connectors In Line Diode Standard Module Design

Product Description

IP67 Waterproof 15A In-Line Diode Connector Solar Panel Cable Connectors

Easy to assemble and use
IP67 rated for water and dust protection with high safety degree
Simple, quick installation
Standard module design, assembled discretionarily
Anti-aging and anti-ultraviolet radiation properties
Designed for outdoor conditions
CE approved

Technical Specifications

Product Name:	Diode Connector
Housing Material:	PPO
Contact Material:	Copper, silver plated
Pin Dimension:	4.0 mm
Contact Resistance:	Less than 0.5 m ohm
Application Class:	Class A
Rated Voltage:	TUV1500V DC/UL 600V DC
Rated Current:	15A
Test Voltage:	6KV (5Hz, 1Min)
Flame Class:	UL94-V0
Plug Force:	Less than 50N
Withdrawal Force:	More than 50N
Rated Temperature:	-40°C~+85°C
Upper Limited Temperature:	100°C
Waterproof:	IP67/IP68
Pollution Degree:	2
Protection Degree:	Class II
Standard:	TUV
Service Life:	20 years
Suitable Cable Cross Sections:	2.5mm/4mm/6mm (14AWG/12AWG/10AWG) PV Wire

Assembly Instructions

During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
The end product must provide protection from electric shock.
Unplugging under load: PV plug connections must not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
Disconnected connectors should be protected from dirt and water with sealing caps.
Plugged parts are watertight IP67.

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of getting the inquiry. If you are very urgent to get the price, please call us to give complete specifications about the cable. Price will be calculated soon.

How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

What's your payment terms?

We accept T/T (bank transfer), L/C.

Do you accept the customized order?

Yes, we do.

Do you offer OEM & ODM?

Yes. OEM & ODM are available.

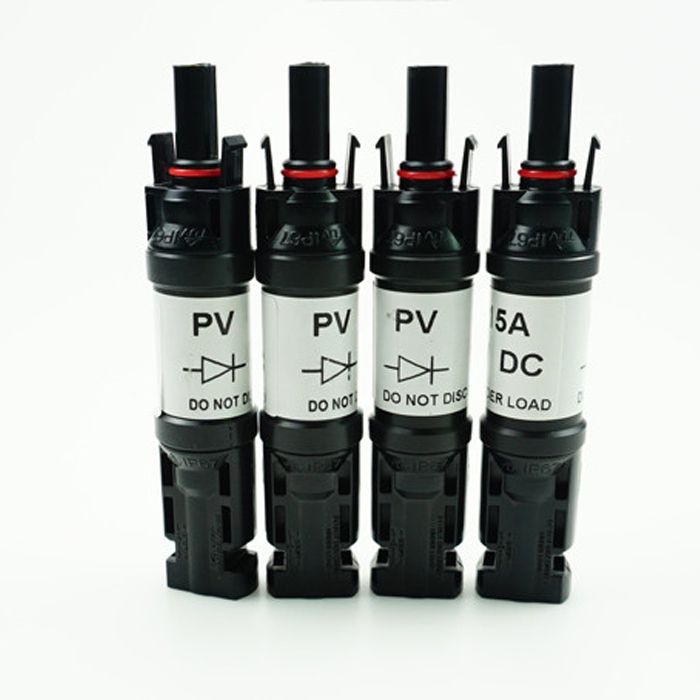

Product Image
