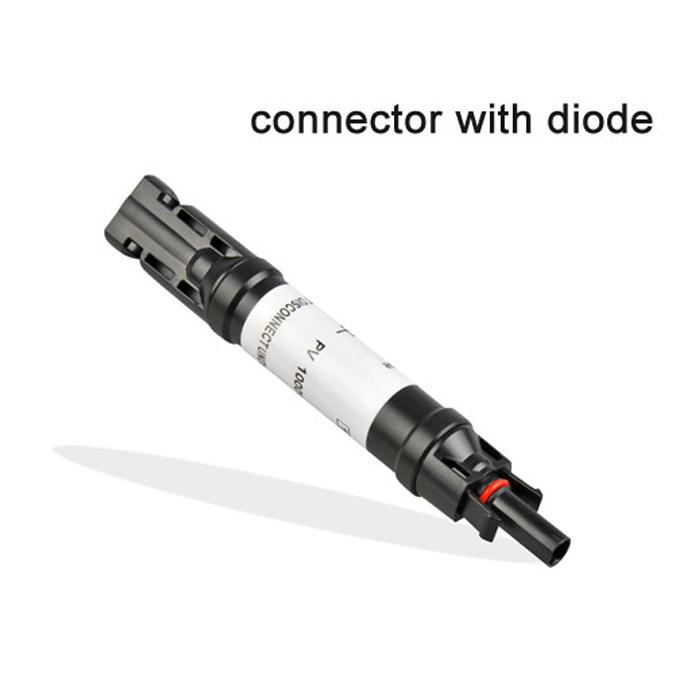

PPO Solar Diode Connector 10-30A DC1000V IP67 Black

Name: PPO Solar Diode Connector 10-30A DC1000V IP67 Black
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV004-D
Availability: InStock

Product Details

Place of Origin: China

Certification: CE/ISO9001

Model Number: PV004-D

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiation

Packaging Details: Bulk

Delivery Time: 3-10days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 5000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    solar wire connectors, solar panel y connector


Product Name:	Connector With Diode	Material:	PPO
Connector:	Female And Male	Rated Voltage:	DC1000V
Protection Degree:	IP67	Flame Class::	UL94-V0
Rated Current:	10-30A	Color:	Black

Product Name:	Connector With Diode
Material:	PPO
Connector:	Female And Male
Rated Voltage:	DC1000V
Protection Degree:	IP67
Flame Class::	UL94-V0
Rated Current:	10-30A
Color:	Black

Description

PPO Solar Diode Connector 10-30A DC1000V IP67 Black

Low Power Loss Diode Connector, PPO Connector With Diode

CE PPO Black 10A 15A 20A 25A 30A connector with diode for solar power system

Key Features

The diode series connectors
Low power loss design
Auto-lock mechanism ensures secure male and female connections
Anti-aging and UV-resistant outer cover
Universal design suitable for most field installations
Simple on-site processing
Convenient installation with strong compatibility

Technical Specifications

Product Name:	Connector With Diode
Housing Material:	PPO
Contact Material:	Copper, silver plated
Pin Dimension:	4.0 mm
Contact Resistance:	Less than 0.5 mΩ
Application Class:	Class A
Rated Voltage:	TUV1500V DC/UL 600V DC
Rated Current:	10~30A
Test Voltage:	6KV (5Hz, 1Min)
Flame Class:	UL94-V0
Plug Force:	Less than 50N
Withdrawal Force:	More than 50N
Rated Temperature:	-40°C~+85°C
Upper Limited Temperature:	100°C
Waterproof:	IP67/IP68
Pollution Degree:	2
Protection Degree:	Class II
Standard:	TUV
Service Life:	20 years
Suitable Cable Cross Sections:	2.5mm/4mm/6mm (14AWG/12AWG/10AWG) PV Wire

Assembly Instructions

Use only specified parts and tools from R&X to ensure safety and compliance with technical data.
Isolate PV connectors from power supply during assembly/disassembly for electric shock protection.
End product must provide protection against electric shock.
Never unplug PV connections under load. Ensure no-load state by switching off DC/AC converter or breaking AC circuit interrupter.
Protect disconnected connectors from dirt and water using sealing caps.
Plugged parts maintain IP67 watertight rating.

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of inquiry. For urgent pricing, please call with complete cable specifications.

How long is the delivery time?

Typically 3-4 working days after payment, depending on quantity.

What payment methods do you accept?

We accept T/T (bank transfer) and L/C.

Do you accept customized orders?

Yes, we accommodate customized orders.

Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.

Product Images
