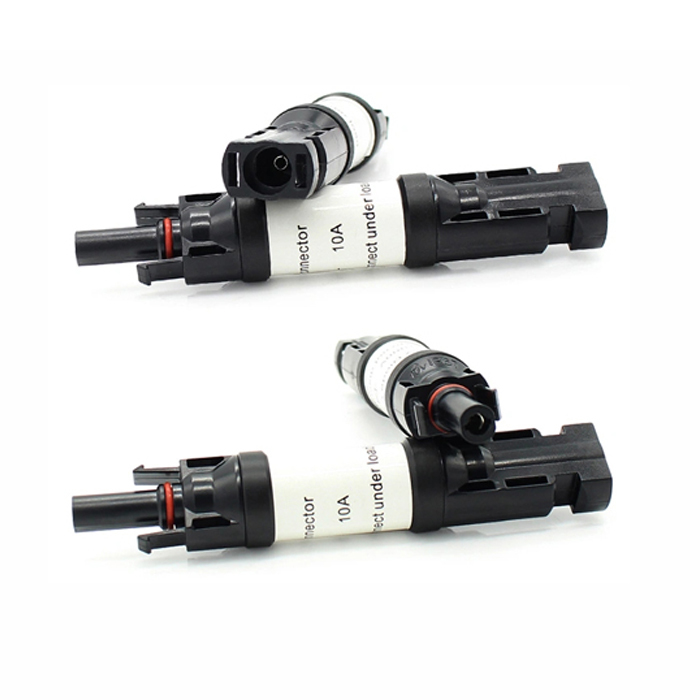

IP67 Waterproof DC Diode Connector 20A 1000V Solar Plug

Name: IP67 Waterproof DC Diode Connector 20A 1000V Solar Plug
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV004-D
Availability: InStock

Product Details

Place of Origin: China

Certification: CE/ISO9001

Model Number: PV004-D

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiation

Packaging Details: Bulk

Delivery Time: 3-10days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 5000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    solar wire connectors, solar panel y connector


Product Name:	DC Diode Connector	Connector:	Female And Male
Protection Degree:	IP67	Current:	20A
Rated Voltage:	DC1000V	Packing:	PP Bag

Product Name:	DC Diode Connector
Connector:	Female And Male
Protection Degree:	IP67
Current:	20A
Rated Voltage:	DC1000V
Packing:	PP Bag

Description

IP67 Waterproof DC Diode Connector 20A 1000V Solar Plug

IP67 Waterproof DC Solar Diode Connector 20A Current For Solar Power System

Product Description

TUV IP67 Waterproof DC Diode Solar Plug Connector 20A for Solar Power System

Key Features

Simple assembly, easy to use
Suitable for different sizes of PV cable
Waterproof grade: IP67
Housing made of PPO material, anti-UV
High current carrying capacity
Contact material: Copper Tin Plated
High heat resistance, wear-resisting
Rated Voltage: 1000V
Rated Current: 20A

Technical Specifications

Insulation material	PPO
Rated voltage	TUV 1000 DC/ UL 600V DC
Test voltage	6KV(50Hz,1Min)
Contact material	Copper, tin plated
Contact resistance	Less than 0.5 m ohm
Degree of protection	IP67
Pollution Degree	2
Protection class	Class II
Flame class	UL94-V0
Plug Force	less than 50N
Withdrawal force	more than 50N
Ambient temperature range	-40 ~ + 90°C
Diode	8 A ~ 15 A
Pin dimension	2.5,4.0,6.0mm

Assembly Instructions

During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
The end product must provide protection from electric shock.
Unplugging under load: PV plug connections must not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
Disconnected connectors should be protected from dirt and water with sealing caps.
Plugged parts are watertight IP67
