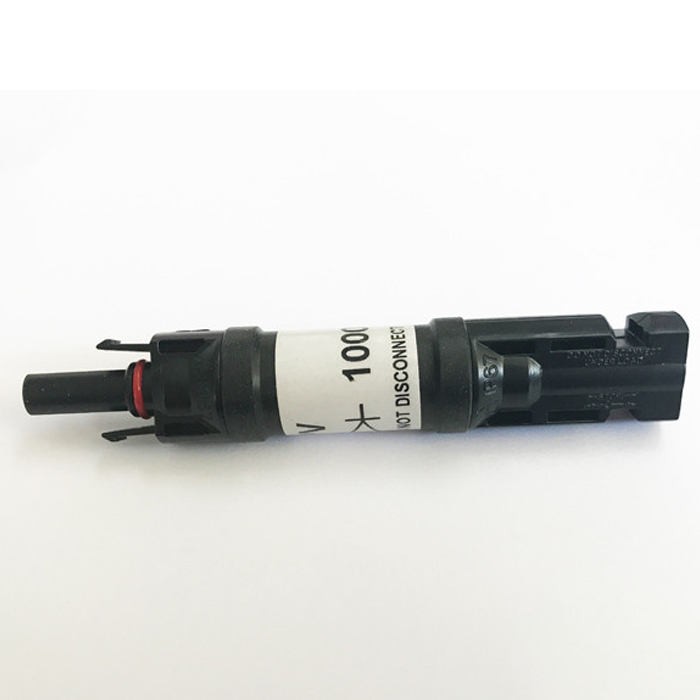

20A IP67 Waterproof Diode Connector for Solar Systems

Name: 20A IP67 Waterproof Diode Connector for Solar Systems
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV004-D
Availability: InStock

Product Details

Place of Origin: China

Certification: CE/ISO9001

Model Number: PV004-D

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiation

Packaging Details: Bulk

Delivery Time: 3-10days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 5000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    solar panel cable connectors, solar wire connectors


Product Name:	Diode Connector	Rated Current:	20A
Connector:	Female And Male	Rated Voltage:	DC1000V
Protection Degree:	IP67	Feature:	Water Proof

Product Name:	Diode Connector
Rated Current:	20A
Connector:	Female And Male
Rated Voltage:	DC1000V
Protection Degree:	IP67
Feature:	Water Proof

Description

20A IP67 Waterproof Diode Connector for Solar Systems

Dust Prevention 20A Diode Connector In Line Adopt Touch Of Reed With Inne - Knob Type

Waterproof IP67 Diode Connector in line 20A with CE Certificate for Solar Systems. Designed for easy, quick and reliable connection of solar cables to photovoltaic systems (solar panels, converters).

Key Features

Connector adopts touch of reed with inne-knob type
Auto-lock enables easier and more reliable connections
Popular design suitable for most field installations
Quick connection capability
Waterproof and dustproof construction
Long service life

Technical Specifications

Product Name:	Diode Connector
Housing Material:	PPO
Contact Material:	Copper, silver plated
Pin Dimension:	4.0 mm
Contact Resistance:	Less than 0.5 m ohm
Application Class:	Class A
Rated Voltage:	TUV1500V DC/UL 600V DC
Rated Current:	15A
Test Voltage:	6KV (5Hz, 1Min)
Flame Class:	UL94-V0
Plug Force:	Less than 50N
Withdrawal Force:	More than 50N
Rated Temperature:	-40°C~+85°C
Upper Limited Temperature:	100°C
Waterproof:	IP67/IP68
Pollution Degree:	2
Protection Degree:	Class II
Standard:	TUV
Service Life:	20 years
Suitable Cable Cross Sections:	2.5mm/4mm/6mm (14AWG/12AWG/10AWG) PV Wire

Assembly Instructions

During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
The end product must provide protection from electric shock.
PV plug connections must not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
Disconnected connectors should be protected from dirt and water with sealing caps.
Plugged parts are watertight IP67.
