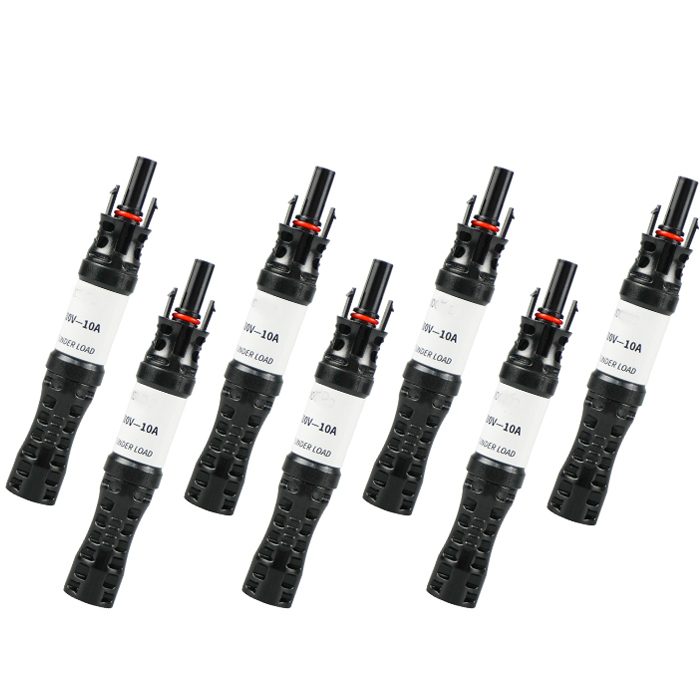

30A IP67 Solar Diode Connector 2.5-6mm² Wire Size

Name: 30A IP67 Solar Diode Connector 2.5-6mm² Wire Size
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV005-D
Availability: InStock

Product Details

Place of Origin: China

Certification: CE

Model Number: PV005-D

Payment & Shipping Terms

Minimum Order Quantity: 50

Price: Negotiation

Packaging Details: PP Bag

Delivery Time: 10days

Payment Terms: T/T

Supply Ability: 3k per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    IP67 Solar Panel Wire Connector, 30A Solar Panel Wire Connector, IEC61836 Solar Panel Wire Connector


Rated Current:	30A	Wire Size:	2.5-6mm²
Color:	Black	Connector:	Female And Male
Ip Rating:	IP67	Packing:	PP Bag
Flame Class:	UL94-V0	Material:	Copper Alloy

Rated Current:	30A
Wire Size:	2.5-6mm²
Color:	Black
Connector:	Female And Male
Ip Rating:	IP67
Packing:	PP Bag
Flame Class:	UL94-V0
Material:	Copper Alloy

Description

30A IP67 Solar Diode Connector 2.5-6mm² Wire Size

30A IP67 Photovoltaic Diode Connector IEC61836 Solar Panel Wire Connector

Product Overview

Designed for demanding conditions, this photovoltaic diode connector features a withstanding voltage of 6000V AC and contact resistance of ≤0.5mΩ for optimal conductivity. With a rated current of 30A, it ensures uninterrupted power transmission in solar energy systems.

The IP67-rated enclosure provides complete dust protection and water resistance up to 1 meter depth, making it ideal for outdoor and marine applications. The ≥1000MΩ insulation resistance guarantees peak system efficiency without power loss.

Key Features

Product Name: Solar Diode Connector
IP Rating: IP67 (Dust-tight and waterproof)
Application: Solar panel systems
Color: Black
Rated Voltage: 1500V
Material: Copper alloy contacts

Technical Specifications

Parameter	Value
Product Name	Renewable Energy Diode Connector
Alternate Names	PV Diode Connector, Solar Panels Diode Connector
Rated Voltage	1500V
Protection Degree	IP67
Connector Type	Female and Male
Insulation Resistance	≥1000MΩ
Operating Temperature	-40°C to +85°C
Contact Resistance	≤0.5mΩ
Wire Size	2.5-6mm²

Applications

This solar diode connector is essential for connecting solar panels to power systems, providing reliable connectivity for solar installations. Its robust design makes it suitable for:

Large-scale solar panel systems
Harsh outdoor environments
Marine applications
Extreme temperature conditions (-40°C to +85°C)

CE certified for quality assurance, this connector meets rigorous safety and performance standards for renewable energy applications.

Ordering Information

Minimum Order Quantity: 50 pieces
Supply Capacity: 3,000 units/day
Packaging: PP bags
Delivery Time: 10 days
Payment Terms: T/T (negotiable)

Support & Services

Our technical support team provides comprehensive assistance with product integration, installation guidance, and maintenance advice. We offer repair/replacement services for defective units and conduct training sessions for optimal product utilization.

Packaging & Shipping

Packaging Details:

10 connectors per package
Individually wrapped in protective plastic
Sturdy cardboard box packaging
Box dimensions: 6" x 4" x 2"

Shipping Information (US Only):

Free standard shipping
5-7 business day delivery estimate
Tracking information provided

Frequently Asked Questions

Where is this product manufactured?

Manufactured in China to international quality standards.

What certifications does this product have?

CE certified for compliance with European safety standards.

What is the minimum order quantity?

Minimum order quantity is 50 pieces.

What are the payment terms?

Payment by T/T (telegraphic transfer), with terms negotiable.
