10A 1000V DC Solar Diode Connector IP67 Waterproof

Name: 10A 1000V DC Solar Diode Connector IP67 Waterproof
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV004-D
Availability: InStock

Product Details

Place of Origin: China

Certification: CE/ISO9001

Model Number: PV004-D

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiation

Packaging Details: Bulk

Delivery Time: 3-10days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 5000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    solar wire connectors, solar panel y connector


Product Name:	Diode Connector	Rated Current:	10A
Connector:	Female And Male	Rated Voltage:	DC1000V
Protection Degree:	IP67	Packing:	PP Bag

Product Name:	Diode Connector
Rated Current:	10A
Connector:	Female And Male
Rated Voltage:	DC1000V
Protection Degree:	IP67
Packing:	PP Bag

Description

10A 1000V DC Solar Diode Connector IP67 Waterproof

PPO In Line 10 Amp Diode Connector Quick Installation With CE Certification

CE Certified PPO In-line 10AMP Solar Diode Connector with IP67 waterproof rating. Designed for reliable performance in outdoor conditions with anti-aging and UV-resistant properties.

Key Features

Simple, quick installation process
Standard module design for flexible assembly
Anti-aging and UV-resistant construction
Designed for outdoor applications
CE certified for quality assurance

Technical Specifications

Product Name	Diode Connector
Housing Material	PPO
Contact Material	Copper, silver plated
Pin Dimension	4.0 mm
Contact Resistance	Less than 0.5 mΩ
Application Class	Class A
Rated Voltage	TUV 1500V DC/UL 600V DC
Rated Current	15A
Test Voltage	6KV (5Hz, 1Min)
Flame Class	UL94-V0
Plug Force	Less than 50N
Withdrawal Force	More than 50N
Rated Temperature	-40°C to +85°C
Upper Limited Temperature	100°C
Waterproof Rating	IP67/IP68
Pollution Degree	2
Protection Degree	Class II
Standard	TUV
Service Life	20 years
Suitable Cable Cross Sections	2.5mm/4mm/6mm (14AWG/12AWG/10AWG) PV Wire

Assembly Instructions

Use only specified parts and tools from R&X. Safety and technical compliance cannot be guaranteed with unauthorized components.
Isolate PV connectors from power supply during assembly/disassembly for electric shock protection.
Ensure end product provides adequate protection from electric shock.
Never unplug under load. Deactivate system via DC/AC converter or AC circuit interrupter first.
Protect disconnected connectors with sealing caps against dirt and water.
Properly assembled connections maintain IP67 waterproof rating.

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of inquiry. For urgent requests, please call with complete cable specifications for immediate pricing.

How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.

What payment methods do you accept?

We accept T/T (bank transfer) and L/C.

Do you accept customized orders?

Yes, we accommodate customized specifications.

Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.

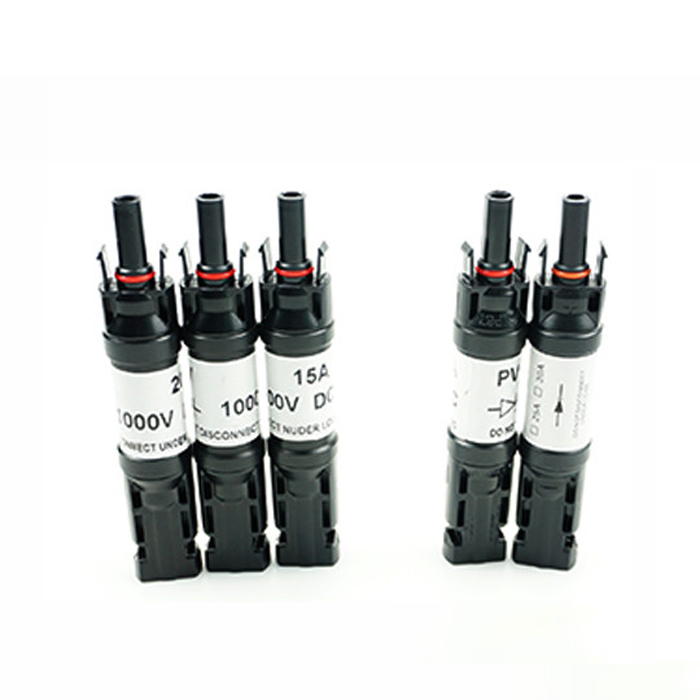

Product Image
