Product Details
Place of Origin: China
Brand Name: Pntech
Certification: CE/ISO9001
Model Number: PV004-D
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Negotiation
Packaging Details: Bulk
Delivery Time: 3-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs per day
Product Name: |
Diode Connector |
Type: |
Torch |
Connector: |
Female And Male |
Rated Voltage: |
DC1000V |
Protection Degree: |
IP67 |
Packing: |
PP Bag |
Product Name: |
Diode Connector |
Type: |
Torch |
Connector: |
Female And Male |
Rated Voltage: |
DC1000V |
Protection Degree: |
IP67 |
Packing: |
PP Bag |
Solar Connectors copper tin-plated With CE ROHS For Solar Panel With Diode
Description:
Simple, quick installation
Standard module design, assembled discretionarily
With the capacity of anti-aging and anti-ultraviolet radiation
Meet the requirement of outdoor condition
|
Product Name:
|
Diode Connector
|
|
Housing Material:
|
PPO
|
|
Contact Material:
|
Copper,sliver plated
|
|
Pin Dimention:
|
4.0 mm
|
|
Contact Resistance:
|
Less than 0.5 m ohm
|
|
Application Class:
|
Class A
|
|
Rated Voltage:
|
TUV1500V DC/UL 600V DC
|
|
Rated Current:
|
15A
|
|
Test Voltage:
|
6KV (5Hz, 1Min)
|
|
Flame Class:
|
UL94-V0
|
|
Plug Force:
|
Less than 50N
|
|
Withdrawal Force:
|
More than 50N
|
|
Rated Temperature:
|
-40°C~+85°C
|
|
Upper Limited Temperture:
|
100°C
|
|
Waterproof:
|
IP67/IP68
|
|
Pollution Degree:
|
2
|
|
Protection Degree:
|
Class II
|
|
Standard:
|
TUV
|
|
Service Life:
|
20 years
|
|
Suitable Cable Cross Sections:
|
2.5mm/4mm/6mm (14AWG/12AWG/10AWG) PV Wire
|
Assembly Instructions
1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

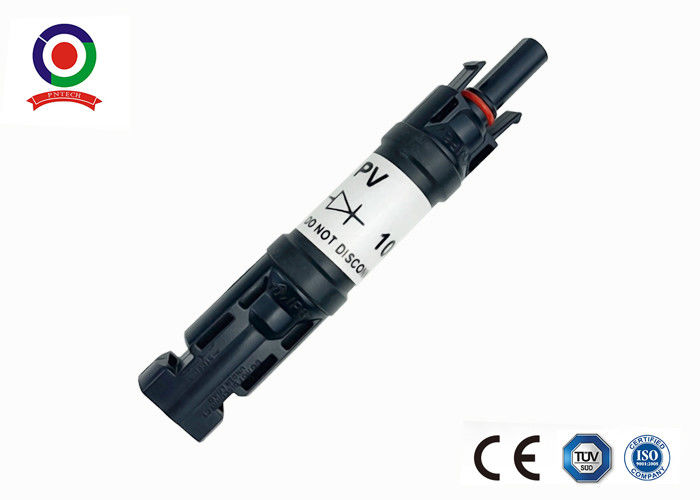

Picture of connector with diode
