Standard Module Design Solar Diode Connector DC Waterproof Quick Installation

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: CE/ISO9001

Model Number: PV004-D

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiation

Packaging Details: Bulk

Delivery Time: 3-10days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5000pcs per day

Get Best Price
Contact Now
Specifications
Highlight:

solar wire connectors

,

solar panel y connector

Product Name:
Diode Connector
Contact Resistance:
< 0.5mΩ
Connector:
Female And Male
Rated Voltage:
DC1000V
Protection Degree:
IP67
Packing:
PP Bag
Product Name:
Diode Connector
Contact Resistance:
< 0.5mΩ
Connector:
Female And Male
Rated Voltage:
DC1000V
Protection Degree:
IP67
Packing:
PP Bag
Description
Standard Module Design Solar Diode Connector DC Waterproof Quick Installation


IP67 Waterproof DC Solar Plug Diode Connector 10A 15A for Solar PV System

Description:



Simple, quick installation

Standard module design, assembled discretionarily

With the capacity of anti-aging and anti-ultraviolet radiation

Meet the requirement of outdoor condition



Product Name:
 Diode Connector
Housing Material:
PPO
Contact Material:
Copper,sliver plated
Pin Dimention:
4.0 mm
Contact Resistance:
Less than 0.5 m ohm
Application Class:
Class A
Rated Voltage:
TUV1500V DC/UL 600V DC
Rated Current:
15A
Test Voltage:
6KV (5Hz, 1Min)
Flame Class:
UL94-V0
Plug Force:
Less than 50N
Withdrawal Force:
More than 50N
Rated Temperature:
-40°C~+85°C
Upper Limited Temperture:
100°C
Waterproof:
IP67/IP68
Pollution Degree:
2
Protection Degree:
Class II
Standard:
TUV
Service Life:
20 years
Suitable Cable Cross Sections:
2.5mm/4mm/6mm (14AWG/12AWG/10AWG) PV Wire


Assembly Instructions

1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67

FAQ:

1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

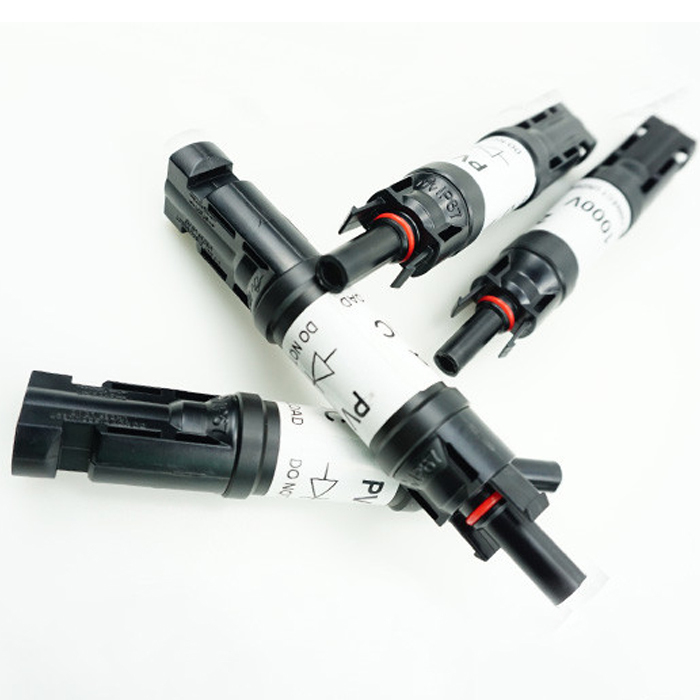

Picture of diode connector
