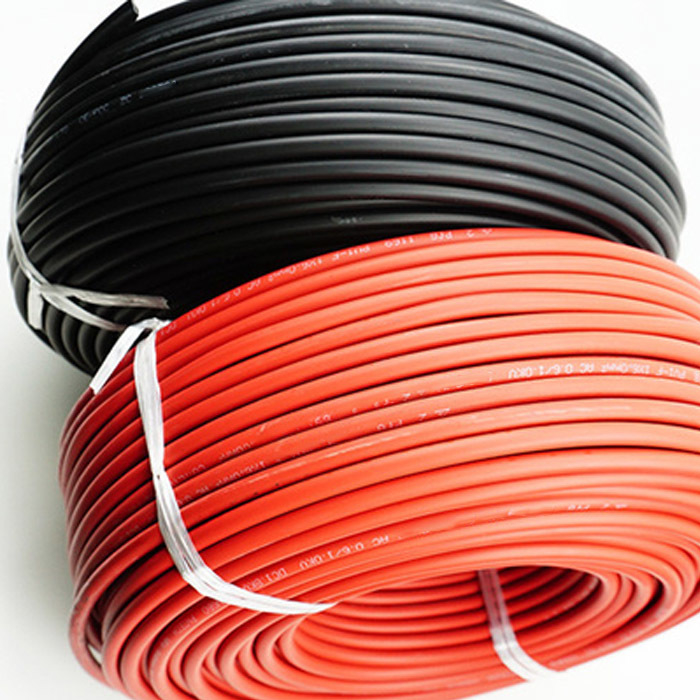

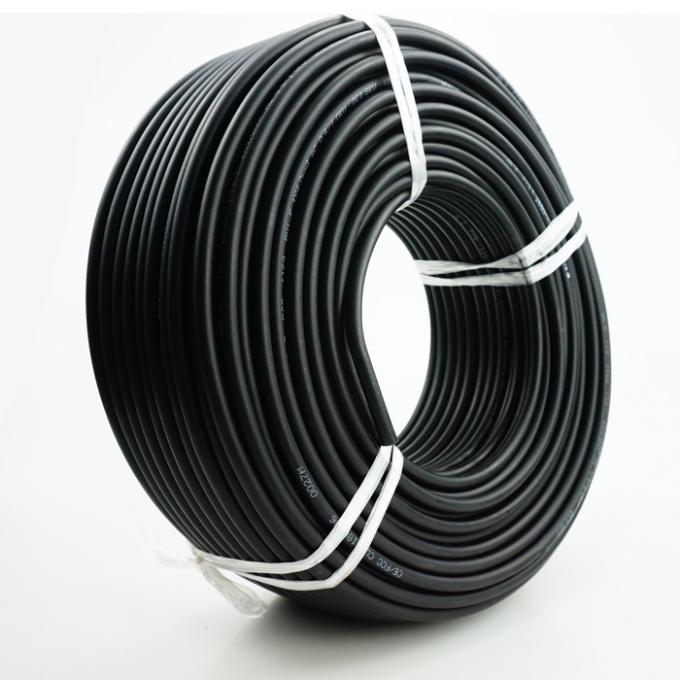

0.8mm Thickness Solar Photovoltaic Cable 16mm2 Sunlight Resistant Solar DC Cable

Name: 0.8mm Thickness Solar Photovoltaic Cable 16mm2 Sunlight Resistant Solar DC Cable
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV1-F 1x16mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/CQC/ISO9001

Model Number: PV1-F 1x16mm2

Payment & Shipping Terms

Minimum Order Quantity: 100m

Price: Negotiation

Packaging Details: 100m/roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements

Delivery Time: 3-15days

Payment Terms: L/C,T/T

Supply Ability: 70000 Meters per Day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    solar dc cable, solar photovoltaic cable


Product Name:	16mm² Solar Cable	Life Service:	25years
Conductor:	Tinned Copper	Construction:	120/0.4mm
Thickness:	0.8mm	Resistance::	1.24 Ω/km (MAX. At 20℃)
Cable OD:	10.2mm	Color:	Black Or Red

Product Name:	16mm² Solar Cable
Life Service:	25years
Conductor:	Tinned Copper
Construction:	120/0.4mm
Thickness:	0.8mm
Resistance::	1.24 Ω/km (MAX. At 20℃)
Cable OD:	10.2mm
Color:	Black Or Red

Description

0.8mm Thickness Solar Photovoltaic Cable 16mm2 Sunlight Resistant Solar DC Cable

0.8mm Thickness Solar Photovoltaic Cable 16mm² Sunlight Resistant Solar DC Cable

Product Specifications

Attribute	Value
Product name	16mm² solar Cable
Life service	25 years
Conductor	Tinned Copper
Construction	120/0.4mm
Thickness	0.8mm
Resistance	1.24 Ω/km (MAX. at 20℃)
Cable OD	10.2mm
Color	Black or Red

Product Description

TUV certified UV resistance XLPE dual insulated 16mm solar cable for solar power systems.

16mm² DC Solar Cable Characteristics

Dual wall insulation with electron beam cross-linking
Excellent resistance to UV, oil, greases, oxygen and ozone
Superior abrasion resistance
Halogen free, flame retardant with low toxicity
Excellent flexibility and stripping performance
High current carrying capacity
TUV approved for quality assurance

Type	Cross Section	Strand Design	Conductor Diameter	Conductor Resistance	Outer Diameter	Rated Voltage	Rated Current
PV-1x16mm²	16mm²	120x φ0.4mm	4.9mm	1.24 Ω/km	10.2mm	1800VDC	132A

16mm² DC Solar Cable Application

These cables are designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions.

Key Features

Electron beam cross-linked materials maintain integrity even at high temperatures
High resistance against heat, cold, abrasion, UV, ozone and hydrolysis
Interconnects between photovoltaic panels and from panels to inverters
Operates at DC voltage with long life in exposed conditions

Technical Specifications

Ambient temperature	-40℃ to +90℃
Maximum conductor temperature	120℃ (200℃ for 5s in short circuit)
Voltage rating	AC 0.6/1kV, DC 1.8kV

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of receiving your inquiry. For urgent pricing, please call us with complete cable specifications.

How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.

What payment terms do you accept?

We accept T/T (bank transfer) and L/C.

Do you accept customized orders?

Yes, we accommodate customized orders.

Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.
