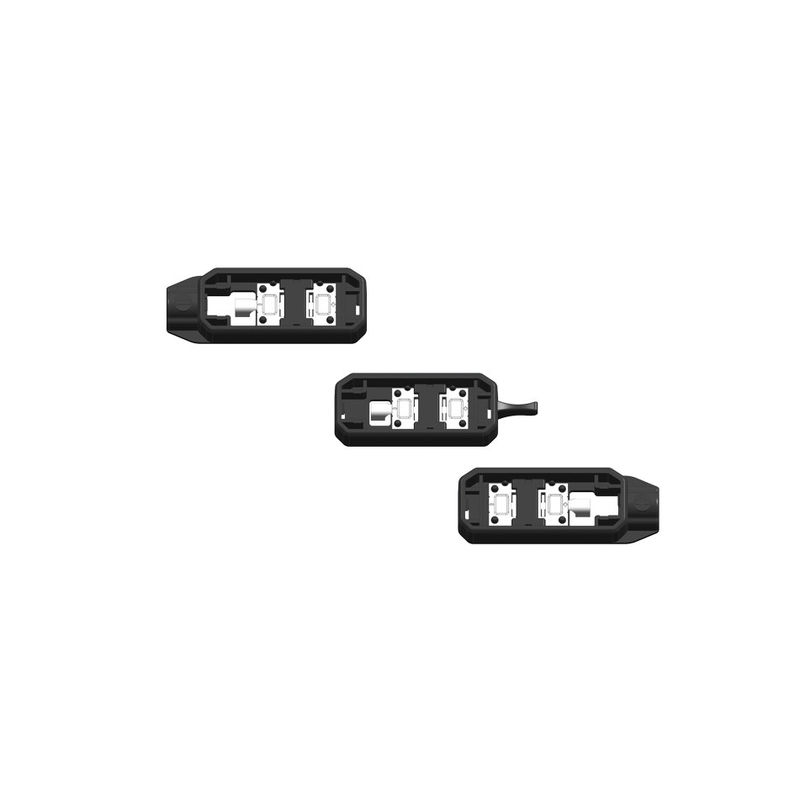

1500VDC PV Junction Box for Solar Panels with 1 Diode

Name: 1500VDC PV Junction Box for Solar Panels with 1 Diode
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PNTK-GGS-001
Availability: InStock

Product Details

Place of Origin: China

Certification: CE/Rohs//ISO

Model Number: PNTK-GGS-001

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Negotiation

Packaging Details: Bulk

Delivery Time: 7-15days

Payment Terms: T/T or L/C at sight

Supply Ability: 5k per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    CE Solar Cell Junction Box, DC1500V Cable Junction Box, Female Connector Solar Cell Junction Box


Safety Class:	II	Application:	Solar Panel
Tempersture Range:	-40℃ ~ +85℃	Number Of Diodes:	1
Cable Rated Voltage:	DC1500V	Rated Voltage:	1500VDC
Packing:	Black Box	Wire Size Range:	12AWG / 4mm²

Safety Class:	II
Application:	Solar Panel
Tempersture Range:	-40℃ ~ +85℃
Number Of Diodes:	1
Cable Rated Voltage:	DC1500V
Rated Voltage:	1500VDC
Packing:	Black Box
Wire Size Range:	12AWG / 4mm²

Description

1500VDC PV Junction Box for Solar Panels with 1 Diode

DC1500V Cable Rated Voltage Solar Cell Junction Box With CE Certification

Product Overview

The PV Junction Box is a crucial component for clean energy systems, providing secure connections between solar panels. Also known as Solar Cell Junction Box or Photovoltaic Junction Box, it ensures efficient and safe energy transfer in solar installations.

Key Features

Rated Voltage: 1500VDC
Wire Size Range: 12AWG / 4mm²
Temperature Range: -40℃ to +85℃
Protection Rating: IP65/IP68 (1m,1h)
Connector Type: Female and Male
Certifications: CE, RoHS, ISO
Application: Solar Panel Systems

Technical Specifications

Parameter	Specification
Contact Material	Tin Plated Copper
Number of Diodes	1
Safety Class	II
HS Code	8535900090
Packing	Black Box

Applications

Our PV Junction Box is widely used in various solar energy systems including:

Residential rooftop solar systems
Commercial solar installations
Solar-powered street lights
Off-grid solar systems
RV and marine solar applications

Customization Options

We offer customized PV Junction Box solutions with the following specifications:

Attribute	Detail
Model Number	GGS-001
Minimum Order Quantity	100 pieces
Delivery Time	7-15 days
Supply Capacity	5,000 pieces/day

Packaging & Shipping

Each unit is carefully packaged with multiple protective layers:

Sturdy cardboard outer box
Protective bubble wrap cushioning
Plastic/foam tray for stability
Secure tape sealing

Shipped via reliable courier services with full tracking and signature confirmation upon delivery.

Frequently Asked Questions

Q: What certifications does this product have?

A: CE, RoHS, and ISO certifications.

Q: What is the minimum order quantity?

A: Minimum order quantity is 100 pieces.

Q: What is the delivery time?

A: Standard delivery time is 7-15 days.

Q: What payment methods are accepted?

A: We accept T/T or L/C at sight payments.

All specifications subject to change without notice. Contact us for the most current product information.
