IP67 Waterproof 1000VDC 10A Solar PV Junction Box with UV Resistant and Lighting Protection
IP67 Waterproof 1000VDC 10A Solar PV Junction Box with UV Resistant and Lighting Protection

IP67 Waterproof 1000VDC 10A Solar PV Junction Box with UV Resistant and Lighting Protection

Product Details

Place of Origin: China

Certification: TUV/UL/CE/ISO9001

Model Number: PV-YN002

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: Negotiation

Packaging Details: Bulk 50pcs/carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 5000pcs per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

solar pv junction box

,

photovoltaic junction box

Product Name:
PV Junction Box
No.of Diode:
1 Pc
Color:
Black
Protection Degree:
IP67
Diode Current::
10A
Rated Voltage:
1000VDC
Product Name:
PV Junction Box
No.of Diode:
1 Pc
Color:
Black
Protection Degree:
IP67
Diode Current::
10A
Rated Voltage:
1000VDC
Description
IP67 Waterproof 1000VDC 10A Solar PV Junction Box with UV Resistant and Lighting Protection
UV Resistant Solar PV Array Junction Box with Lightning Protection
DC 1000V 1 diode PV Array with Lightning Protection Solar Module Junction Box
Product Specifications
Diode No. 1 pc
Protection class Class II
Contact Material Copper, tin plated
Contact resistance ≤5mΩ
Protection degree IP 65
Withdrawal Force ≥50N
Temperature Range -40ºC~+85ºC
Flame Class UL94V-0
Technical Details
Product Name PV Junction box
Certificate TUV
Rated Voltage 1000V DC(TUV)
Rated Current 10A
Temperature Range -40ºC~+90ºC
Safety Class Class II
Protection Degree IP67
Wire Size Range 4mm²
Flame Resistance UL94-V0/5VA
Waterproofing Structure Seal
Width Of Copper Ribbons Up to 8mm
Connection Method Spring Clamping
Key Features
  • UV resistant outer cover with anti-aging capacity
  • Designed for harsh outdoor conditions
  • Self-locking function for convenient and firm connections
  • Anti-electric shock insulation protection
  • Firmly installed terminals with excellent weldability
Assembly Instructions
  • Use only specified parts and tools for guaranteed safety and performance
  • Isolate PV connectors from power supply during assembly/disassembly
  • End product must provide electric shock protection
  • Never unplug under load - switch off converter first
  • Protect disconnected connectors with sealing caps
  • Plugged parts maintain IP67 watertight rating
Frequently Asked Questions
When can I get the quotation?
Within 24 hours of inquiry. For urgent requests, please call with complete specifications.
How long is the delivery time?
Typically 3-4 working days after payment, depending on quantity.
What payment methods do you accept?
We accept T/T (bank transfer) and L/C.
Do you accept customized orders?
Yes, we do.
Do you offer OEM & ODM services?
Yes, OEM & ODM are available.
Product Image

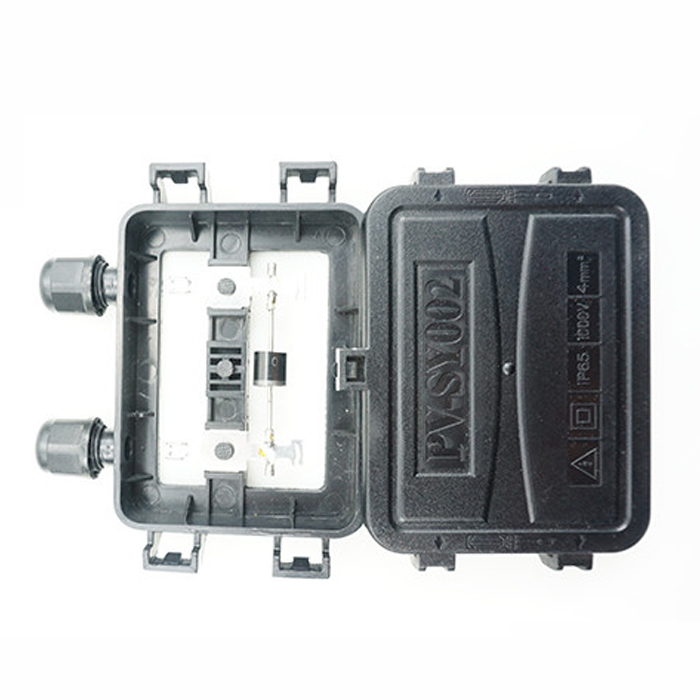

IP67 Waterproof 1000VDC 10A Solar PV Junction Box with UV Resistant and Lighting Protection 0

Tags:

solar pv junction box,

pv module junction box,

photovoltaic junction box
