TUV 1000VDC IP67 UL94V-0 PV Junction Box for Solar Systems with Good Weldability
TUV 1000VDC IP67 UL94V-0 PV Junction Box for Solar Systems with Good Weldability

TUV 1000VDC IP67 UL94V-0 PV Junction Box for Solar Systems with Good Weldability

Product Details

Place of Origin: China

Certification: TUV/UL/CE/ISO9001

Model Number: PV-A4S

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: Negotiation

Packaging Details: Bulk 50pcs/carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 5000pcs per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

solar pv junction box

,

photovoltaic junction box

Product Name To 1 Y Branch Connectore:
PV Junction Box
Cable Length:
90cm
Color:
Black
Protection Degree:
IP67
Diode Current::
13A
Rated Voltage:
1000VDC
Product Name To 1 Y Branch Connectore:
PV Junction Box
Cable Length:
90cm
Color:
Black
Protection Degree:
IP67
Diode Current::
13A
Rated Voltage:
1000VDC
Description
TUV 1000VDC IP67 UL94V-0 PV Junction Box for Solar Systems with Good Weldability
TUV 1000VDC Solar Module Junction Box IP67 with Good Weldability
IP67-rated TUV-certified 1000VDC solar junction box designed for reliable performance in photovoltaic systems.
Key Specifications
Product Name PV Junction box
Certificate TUV
Rated Voltage 1000V DC(TUV)
Rated Current 13A
Temperature Range -40ºC~+90ºC
Safety Class Class II
Protection Degree IP67
Wire Size Range 4mm²
Flame Resistance UL94-V0/5VA
Waterproofing Structure Seal
Width Of Copper Ribbons Up to 8mm
Connection Method Spring Clamping
Insulation Material PPO, black
Contact Material Copper, Tin plated
Overall Dimension 125×130×23mm
No. Of diode 6
Diode type 15SQ045
Optional connector connector
Product Features
  • Anti-aging and UV-resistant outer cover for outdoor durability
  • Designed to withstand harsh environmental conditions
  • Self-locking function for convenient and secure connections
  • Advanced insulation protection against electric shock
  • Firmly installed terminals with excellent weldability
Assembly Instructions
  • Use only specified parts and tools for guaranteed safety and performance
  • Isolate PV connectors from power supply during assembly/disassembly
  • End product must provide protection from electric shock
  • Never unplug under load - ensure no-load state before disconnecting
  • Protect disconnected connectors with sealing caps
  • Plugged connections maintain IP67 waterproof rating
Frequently Asked Questions
When can I get the quotation?
Within 24 hours of inquiry. For urgent requests, please call with complete specifications.
How long is the delivery time?
Typically 3-4 working days after payment, depending on order quantity.
What payment methods do you accept?
We accept T/T (bank transfer) and L/C.
Do you accept customized orders?
Yes, we accommodate customized requirements.
Do you offer OEM & ODM services?
Yes, both OEM and ODM services are available.
Product Images

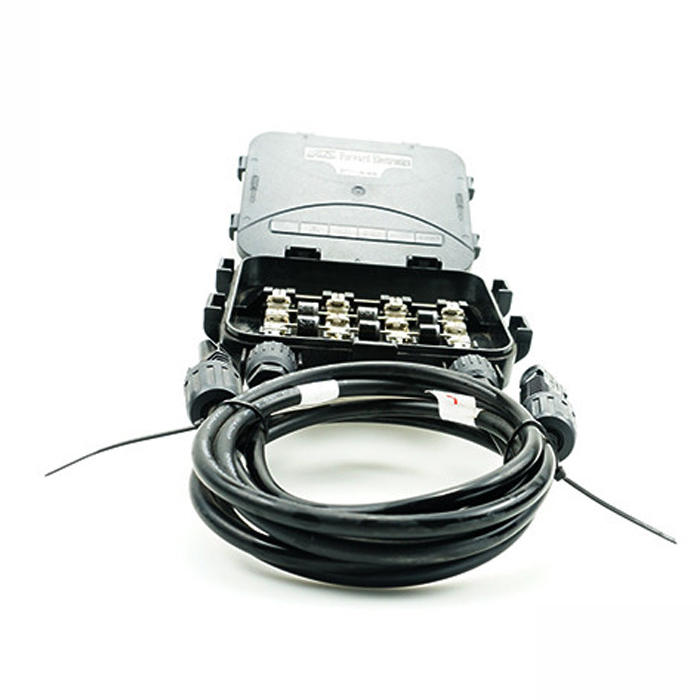

TUV 1000VDC Solar Junction Box front view TUV 1000VDC Solar Junction Box side view
