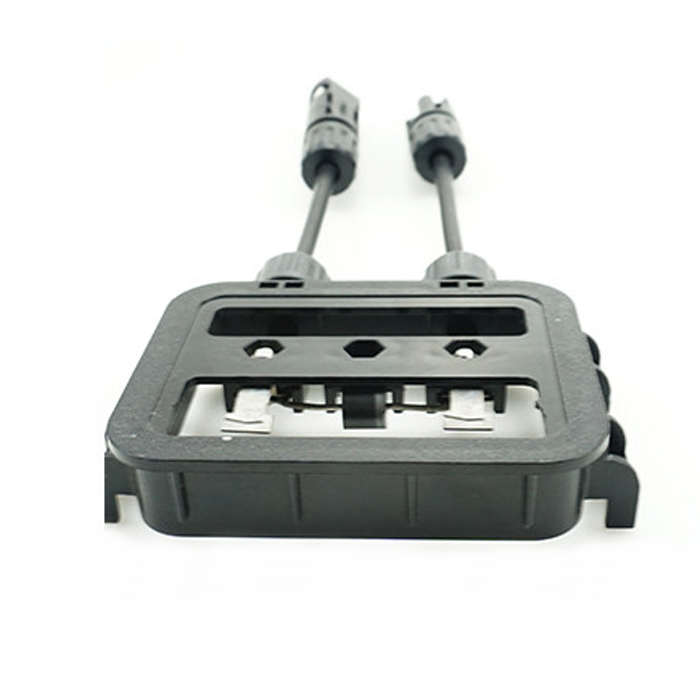

Flame Resistant UL94V-0 Class II PV Junction Box with Photovoltaic Insulation Protection
Flame Resistant UL94V-0 Class II PV Junction Box with Photovoltaic Insulation Protection

Flame Resistant UL94V-0 Class II PV Junction Box with Photovoltaic Insulation Protection

Product Details

Place of Origin: China

Certification: TUV/UL/CE/ISO9001

Model Number: PV-YN002

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: Negotiation

Packaging Details: Bulk 50pcs/carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 5000pcs per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

solar pv junction box

,

pv module junction box

Product Name:
PV Junction Box
Optional Connector:
Solar Connector
Color:
Black
Protection Degree:
IP67
Diode Current::
10A
Rated Voltage:
1000VDC
Product Name:
PV Junction Box
Optional Connector:
Solar Connector
Color:
Black
Protection Degree:
IP67
Diode Current::
10A
Rated Voltage:
1000VDC
Description
Flame Resistant UL94V-0 Class II PV Junction Box with Photovoltaic Insulation Protection
Flame Resistant Photovoltaic Junction Box Anti Electric Shock Insulation Protection

Flame resistant TUV certified IP67 1000VDC solar PV junction box with one diode.

Product Specifications
Product Name PV Junction box
Certificate TUV
Rated Voltage 1000V DC(TUV)
Rated Current 10A
Temperature Range -40ºC~+90ºC
Safety Class Class II
Protection Degree IP67
Wire Size Range 4mm²
Flame Resistance UL94-V0/5VA
Waterproofing Structure Seal
Width Of Copper Ribbons Up to 8mm
Connection Method Spring Clamping
Insulation Material PPO, black
Contact Material Copper, Tin plated
No. Of diode 1
Optional connector connector
Key Features
  • Anti-aging and UV radiation resistant outer cover
  • Designed for harsh outdoor conditions
  • Self-locking function for convenient and secure connections
  • Advanced anti-electric shock insulation protection
  • Firmly installed terminals with excellent weldability
Assembly Instructions
  • Use only specified parts and tools to ensure safety and compliance
  • Isolate PV connectors from power supply during assembly/disassembly
  • End product must provide electric shock protection
  • Never unplug under load - switch off DC/AC converter first
  • Protect disconnected connectors with sealing caps
  • Plugged parts maintain IP67 waterproof rating
Flame Resistant UL94V-0 Class II PV Junction Box with Photovoltaic Insulation Protection 0
Frequently Asked Questions
When can I get the quotation?

Within 24 hours of inquiry. For urgent requests, please call with complete specifications.

How long is the delivery time?

Typically 3-4 working days after payment, depending on quantity.

What payment methods do you accept?

We accept T/T (bank transfer) and L/C.

Do you accept customized orders?

Yes, we accommodate customized requirements.

Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.
