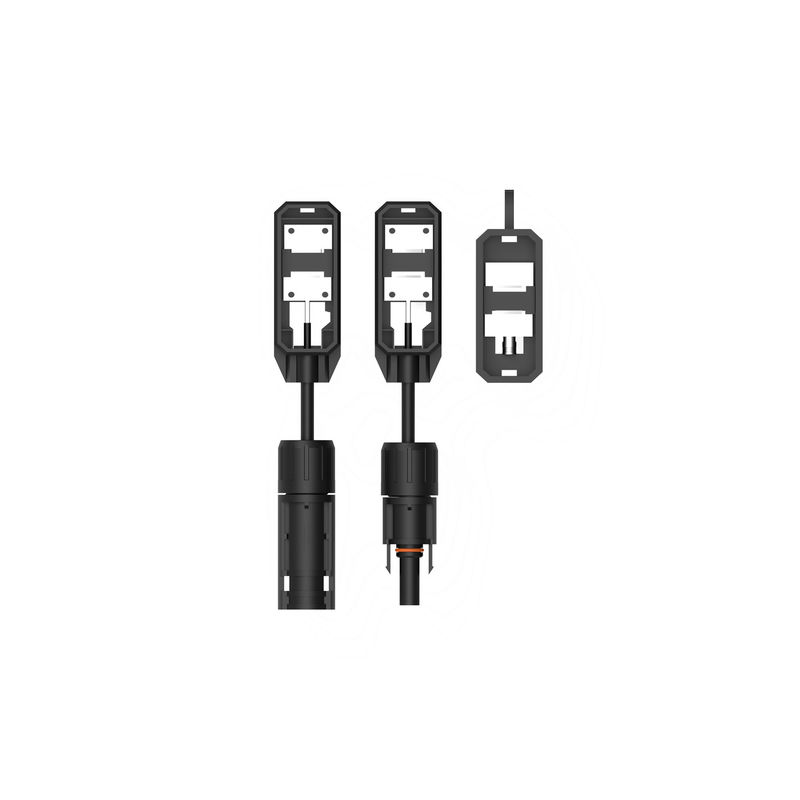

20A 25A 30A Solar PV Junction Box 1500VDC IP65 IP68

Name: 20A 25A 30A Solar PV Junction Box 1500VDC IP65 IP68
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PNTK-GGS-001
Availability: InStock

Product Details

Place of Origin: China

Certification: CE/Rohs//ISO

Model Number: PNTK-GGS-001

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Negotiation

Packaging Details: Bulk

Delivery Time: 7-15days

Payment Terms: T/T or L/C at sight

Supply Ability: 5k per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Solar Panel PV Junction Box, 30A Solar Cell Junction Box, Solar Cell Photovoltaic Junction Box


No Of Diode:	1 Pc	Application:	Solar Panel
Hs Code:	8535900090	Rated Voltage:	1500VDC
Optional Connector:	Solar Connector	Degree Of Protection:	IP65/IP68 (1m,1h)
Contact Material:	Tin Plated Copper	Rated Current:	20A/25A/30A

No Of Diode:	1 Pc
Application:	Solar Panel
Hs Code:	8535900090
Rated Voltage:	1500VDC
Optional Connector:	Solar Connector
Degree Of Protection:	IP65/IP68 (1m,1h)
Contact Material:	Tin Plated Copper
Rated Current:	20A/25A/30A

Description

20A 25A 30A Solar PV Junction Box 1500VDC IP65 IP68

20A / 25A / 30A Rated Current Solar Cell Junction Box With DC1500V Cable Rated Voltage

Product Overview

The PV Junction Box is an essential component in renewable energy systems, designed to connect solar panels to electrical systems with a rated voltage of 1500VDC. Suitable for residential, commercial, and industrial applications, our junction box ensures efficient and safe power generation with weatherproof construction and easy installation.

Key Features

Product Name: PV Junction Box
Packing: Black Box
Number Of Diodes: 1
Optional Connector: Solar Connector
Rated Voltage: 1500VDC
Degree of protection: IP65/IP68 (1m,1h)
Photovoltaic Junction Box
Alternative Energy Junction Box
Solar Panel Junction Box

Technical Specifications

Product Name	PV Junction Box
Clean Energy Junction Box	Alternative Energy Junction Box
Degree of Protection	IP65/IP68 (1m,1h)
Optional Connector	Solar Connector
Cable Rated Voltage	DC1500V
Certifications	CE
Application	Solar Panel
Wire Size Range	12AWG / 4mm²
Number Of Diodes	1
Temperature Range	-40℃ ~ +85℃
Rated Voltage	1500VDC
Cable Length	30cm

Product Advantages

High Voltage Protection

Designed to handle 1500VDC, ensuring system safety and preventing damage from high voltage.

Weatherproof Construction

UV-resistant materials withstand extreme temperatures and moisture for outdoor durability.

Efficient Heat Dissipation

Optimized design maintains system temperature for consistent performance.

Easy Installation

Pre-installed connectors enable quick setup with minimal effort.

Customization Options

We offer tailored solutions with the following specifications:

Model Number: PNTK-GGS-001
Place of Origin: China
Certification: CE/Rohs/ISO
Minimum Order Quantity: 100
Price: Negotiable
Packaging: Bulk
Delivery Time: 7-15 days
Payment Terms: T/T or L/C at sight
Supply Capacity: 5,000 units/day
Safety Class: II

Packaging & Shipping

Each unit is individually wrapped in protective plastic and bubble wrap
Secured in sturdy cardboard boxes with void fill material
Clearly labeled with product information and shipping details
Shipped via reliable carriers with tracking information provided
Requires signature confirmation upon delivery

Applications

Ideal for all solar energy systems including residential, commercial, and industrial installations. The junction box serves as the critical connection point between solar cells and external wiring, ensuring safe and efficient energy transfer.
