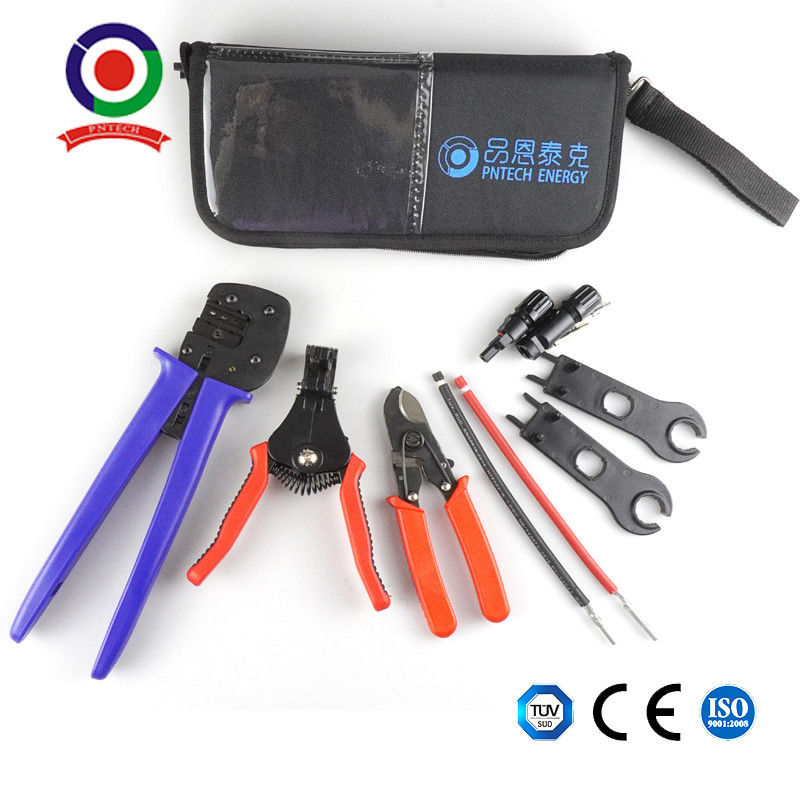

MC3 MC4 Tyco Solar PV System Wiring Hand Crimping Tool
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Crimping Tools Set | Function | Mulit-purpose |
|---|---|---|---|
| Material | Carbon Steel | Capacity | 2.5/4.0/6.0mm2 |
| Dimension | 30.5x20.5x7.5cm | Packing | Fabric Bag |
| High Light | MC3 Hand Crimping Tool,Tyco Hand Crimping Tool,Hand MC4 Crimping Tool Kit |
||
Product Description
Tool kit for DC solar cable connectors professional hand crimping tools set
This selection of MC4 tools enables solar installers to cut, strip and crimp multi-contact connections and ensure a high standard when wiring MC3 MC4 and Tyco solar PV systems
Includes 3 interchangeable Jaws. MC3, MC4 and Tyco solar connector dies
NEW DESIGN crimper for MC4 solar photo-voltaic cables
Solar cable stripper reliable to strip of double layer insulated cables (2.5 – 6.00 mm²)
A complete tool kit to install MC4 solar connectors easily and accurately
Includes 1 pair MC4 spanner for securing and tightening the cable gland
1PCS A-2546B Crimping Tools(crimping range:2.5,4,6.0mm2),
1PCS Cable Stripper with cutter for cutting cables 30mm max and stripping cables 0.6-2.6mm2,
2PCS 2546S Spanner,
1PCS locator,
1PCS connector,
1PCS die set(crimping range:2.5,4,6.0mm2),
1PCS die set(crimping range:1.5,2.5,4,6.0mm2),
1PCS Hex Spanner,Several screws
Contain:
| No. | The Type of Solar Kits | Introduce |
| 1 | A2546B solar cable crimper(With Solar Dies Set) | Solar cable crimper |
| Crimping Range: (Multi-Contact) & 2.5/4/6mm2 (AWG 26-10) | ||
| Length:270mm, Weight:0.74Kg | ||
| 2 | Locator | Use with A-2546B Solar Cable Crimper |
| 3 | Hex wrench | Use for Installing Dies/MC3 Dies/Tyco Dies |
| 4 | solar Dies Set | A Pair of Dies for MC3 solar connector |
| (Multi-Contact) & 2.5/4/6mm2 | ||
| (AWG 14/12/10) solar cable. | ||
| 6 | Solar Test Leads | A Pair of Solar Test leads for solar |
| connectors | ||
| 2 x 150cm test leads, IP65 Connector, | ||
| 4mm connectors, | ||
| High quality 1mm2 cable, 1000V / 19A CE | ||
| Warning Labels, | ||
| Allows for the safe connection to PV Panels, | ||
| Speeds up testing, | ||
| Exceeds GS38 Standards | ||
| 7 | LA-2546B solar cable stripper | Universal solar cable stripper, for |
| 2.5/4/6mm2 (AWG 14/12/10) solar cable | ||
| Length:170mm, Weight:0.32Kg | ||
| 8 | WX-206 solar cable cutter | Solar cable cutter for Soft cable/Wood sticks/ |
| Dowel rods/Animal Nail/Rope/ | ||
| Cord and many other materials | ||
| cable: 24mm2(3/8”) flexible | ||
| Material: stainless steel blade and TPR handles | ||
| Length:165mm, Weight:0.12Kg | ||
| 9 | Solar connector spanner | 2 PCS Open-end spanner and unlocking |
| tool ( and PLUS) | ||
| 10 | Straight Screwdriver | R&X screwdriver 5x75mm(Dia.*Length) |
| Material of Head: S2 Steel | ||
| 11 | Cross screwdriver | IWISS screwdriver 6x100mm(Dia.*Length) |
| Material of Head: S2 Steel | ||
| 12 | Bag | Carrying Oxford Zipper Bag: 305×205×75(mm) |
HOW TO USE THE SOLAR CONNECTOR CRIMPER TOOL TO COMPLETE SOLAR CABLE?
The female metal work is great bigger than the male metalwork, it should match the male connector, and vice versa.
Step A: Confirm which connector should the bare end put in. If the other end is a male connector, the bare end should put in the female connector, vice versa.
Step B: (Take PNTECH's solar cable as an example) Lead the red cable through the base, strain relief and the compression sleeve, then crimp the red cable's bare end into the female metalwork, put in the male connector.
Step C: (Take PNTECH's solar cable as an example) Lead the black cable through the base, strain relief and the compression sleeve, then crimp the red cable's bare end into the male metalwork, put in the female connector.

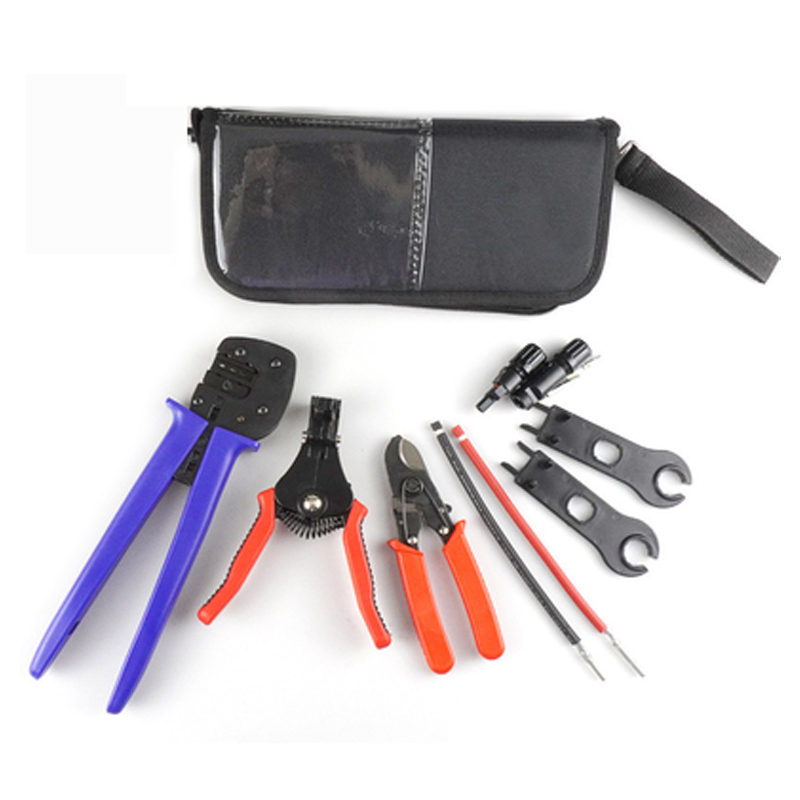

Picture of Wire Terminal Crimping Set
