ISO9001 Multi Purpose Solar Tool Kits For Installing Solar Connectors
|Product Name||Crimping Tool Solar Tool Kits||Function||Mulit-purpose|
Multi Purpose Solar Tool Kits,
ISO9001 Solar Tool Kits,
Multi Purpose Solar PV Tool Kits
Crimping Tool Solar Tool Kits with Cable Stripper Connector Spanner for System
A complete tool kit to install solar connectors easily and accurately.
Solar cable stripper reliable to strip of double layer insulated cables (2.5 – 6.00 mm²).
Cable Cutter with high leverage Jaw and shear blade for clean cut without damage.
MC4 crimper features consistent and accurate performance
Includes 1 pair MC4 connector and 1 pair MC4 spanner to help you opening the locking device, securing and tightening the cable gland.
1PCS A-2546B Crimping Tools(crimping range:2.5,4,6.0mm2),
1PCS Cable Stripper with cutter for cutting cables 30mm max and stripping cables 0.6-2.6mm2,
2PCS 2546S Spanner,
1PCS die set(crimping range:2.5,4,6.0mm2),
1PCS die set(crimping range:1.5,2.5,4,6.0mm2),
1PCS Hex Spanner,Several screws
|No.||The Type of Solar Kits||Introduce|
|1||A2546B solar cable crimper(With Solar Dies Set)||Solar cable crimper|
|Crimping Range: (Multi-Contact) & 2.5/4/6mm2 (AWG 26-10)|
|2||Locator||Use with A-2546B Solar Cable Crimper|
|3||Hex wrench||Use for Installing Dies/MC3 Dies/Tyco Dies|
|4||solar Dies Set||A Pair of Dies for MC3 solar connector|
|(Multi-Contact) & 2.5/4/6mm2|
|(AWG 14/12/10) solar cable.|
|6||Solar Test Leads||A Pair of Solar Test leads for solar|
|2 x 150cm test leads, IP65 Connector,|
|High quality 1mm2 cable, 1000V / 19A CE|
|Allows for the safe connection to PV Panels,|
|Speeds up testing,|
|Exceeds GS38 Standards|
|7||LA-2546B solar cable stripper||Universal solar cable stripper, for|
|2.5/4/6mm2 (AWG 14/12/10) solar cable|
|8||WX-206 solar cable cutter||Solar cable cutter for Soft cable/Wood sticks/|
|Dowel rods/Animal Nail/Rope/|
|Cord and many other materials|
|cable: 24mm2(3/8”) flexible|
|Material: stainless steel blade and TPR handles|
|9||Solar connector spanner||2 PCS Open-end spanner and unlocking|
|tool ( and PLUS)|
|10||Straight Screwdriver||R&X screwdriver 5x75mm(Dia.*Length)|
|Material of Head: S2 Steel|
|11||Cross screwdriver||IWISS screwdriver 6x100mm(Dia.*Length)|
|Material of Head: S2 Steel|
|12||Bag||Carrying Oxford Zipper Bag: 305×205×75(mm)|
HOW TO USE THE SOLAR CONNECTOR CRIMPER TOOL TO COMPLETE SOLAR CABLE?
The female metal work is great bigger than the male metalwork, it should match the male connector, and vice versa.
Step A: Confirm which connector should the bare end put in. If the other end is a male connector, the bare end should put in the female connector, vice versa.
Step B: (Take PNTECH's solar cable as an example) Lead the red cable through the base, strain relief and the compression sleeve, then crimp the red cable's bare end into the female metalwork, put in the male connector.
Step C: (Take PNTECH's solar cable as an example) Lead the black cable through the base, strain relief and the compression sleeve, then crimp the red cable's bare end into the male metalwork, put in the female connector.

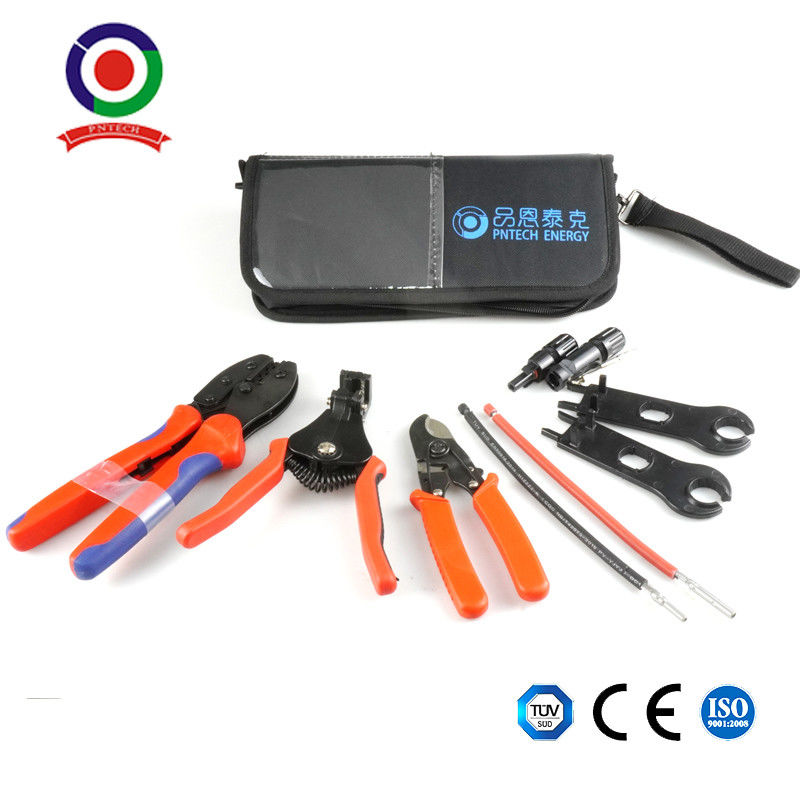

Picture of Crimping Tool Solar Tool Kits
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the tool. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
