Product Details
Place of Origin: China
Brand Name: Pntech
Certification: ISO9001
Model Number: C4K-A
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: 1set/bag 20sets per carton
Delivery Time: 3-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets per day
Product Name: |
MC4 Crimper Tool Set |
Function: |
Mulit-purpose |
Material: |
Carbon Steel |
Capacity: |
2.5/4.0/6.0mm2 |
Dimension: |
30.5x20.5x7.5cm |
Packing: |
Fabric Bag |
Product Name: |
MC4 Crimper Tool Set |
Function: |
Mulit-purpose |
Material: |
Carbon Steel |
Capacity: |
2.5/4.0/6.0mm2 |
Dimension: |
30.5x20.5x7.5cm |
Packing: |
Fabric Bag |
Crimping Tool Set with Wire Stripper & wire Cutter for Open Barrel Terminals
All tools and accessories are packed in a durable tool bag, which is easy to carry and transport.
The universal stripper is specially designed for reliable stripping of insulated cables with stripping range:2.5/4/6mm ².
Pocket wire cutter with sharp blade provides clean cut,easy to operate and carry.
A complete set of tools for the easy and accurate installation of solar connectors.
The kit comes with a compact storage bag for easy transportation to the job.
Handy Crimper equips with Wire Electrical Discharge Machining Cutting jaws with perfect polishing
Provided with one set of dies in handles for using easily energy saving
Contain:
| No. | The Type of Solar Kits | Introduce |
| 1 | A2546B solar cable crimper(With Solar Dies Set) | Solar cable crimper |
| Crimping Range: (Multi-Contact) & 2.5/4/6mm2 (AWG 26-10) | ||
| Length:270mm, Weight:0.74Kg | ||
| 2 | Locator | Use with A-2546B Solar Cable Crimper |
| 3 | Hex wrench | Use for Installing Dies/MC3 Dies/Tyco Dies |
| 4 | solar Dies Set | A Pair of Dies for MC3 solar connector |
| (Multi-Contact) & 2.5/4/6mm2 | ||
| (AWG 14/12/10) solar cable. | ||
| 6 | Solar Test Leads | A Pair of Solar Test leads for solar |
| connectors | ||
| 2 x 150cm test leads, IP65 Connector, | ||
| 4mm connectors, | ||
| High quality 1mm2 cable, 1000V / 19A CE | ||
| Warning Labels, | ||
| Allows for the safe connection to PV Panels, | ||
| Speeds up testing, | ||
| Exceeds GS38 Standards | ||
| 7 | LA-2546B solar cable stripper | Universal solar cable stripper, for |
| 2.5/4/6mm2 (AWG 14/12/10) solar cable | ||
| Length:170mm, Weight:0.32Kg | ||
| 8 | WX-206 solar cable cutter | Solar cable cutter for Soft cable/Wood sticks/ |
| Dowel rods/Animal Nail/Rope/ | ||
| Cord and many other materials | ||
| cable: 24mm2(3/8”) flexible | ||
| Material: stainless steel blade and TPR handles | ||
| Length:165mm, Weight:0.12Kg | ||
| 9 | Solar connector spanner | 2 PCS Open-end spanner and unlocking |
| tool ( and PLUS) | ||
| 10 | Straight Screwdriver | R&X screwdriver 5x75mm(Dia.*Length) |
| Material of Head: S2 Steel | ||
| 11 | Cross screwdriver | IWISS screwdriver 6x100mm(Dia.*Length) |
| Material of Head: S2 Steel | ||
| 12 | Bag | Carrying Oxford Zipper Bag: 305×205×75(mm) |
HOW TO USE THE SOLAR CONNECTOR CRIMPER TOOL TO COMPLETE SOLAR CABLE?
The female metal work is great bigger than the male metalwork, it should match the male connector, and vice versa.
Step A: Confirm which connector should the bare end put in. If the other end is a male connector, the bare end should put in the female connector, vice versa.
Step B: (Take PNTECH's solar cable as an example) Lead the red cable through the base, strain relief and the compression sleeve, then crimp the red cable's bare end into the female metalwork, put in the male connector.
Step C: (Take PNTECH's solar cable as an example) Lead the black cable through the base, strain relief and the compression sleeve, then crimp the red cable's bare end into the male metalwork, put in the female connector.

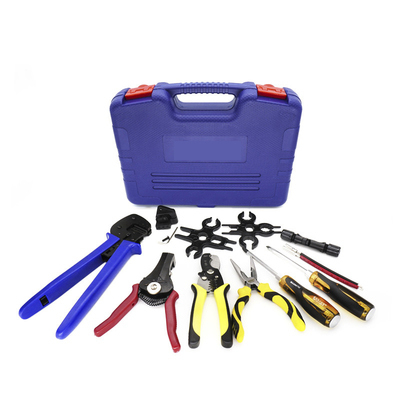

Picture of MC4 Crimper Tool Kits
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the tool. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
