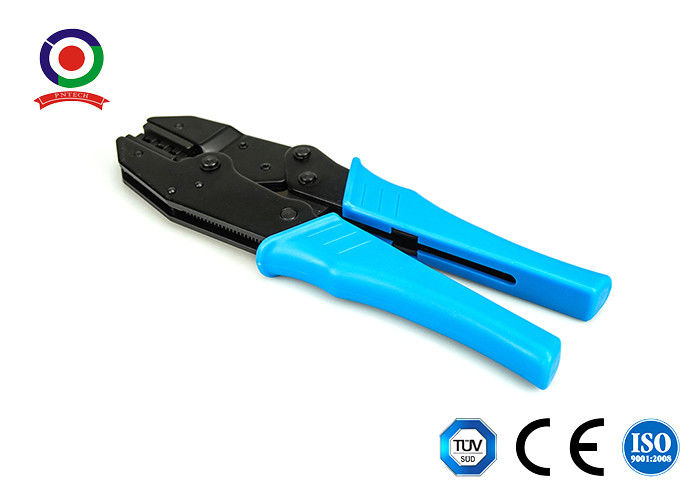

Insulated Connectors 230mm Ratcheting Wire Terminal Crimper

Insulated Connectors 230mm Ratcheting Wire Terminal Crimper
Insulated Connectors 230mm Ratcheting Wire Terminal Crimper Insulated Connectors 230mm Ratcheting Wire Terminal Crimper Insulated Connectors 230mm Ratcheting Wire Terminal Crimper

Large Image :  Insulated Connectors 230mm Ratcheting Wire Terminal Crimper

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: ISO9001
Model Number: A2546BS

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: 1pc/color box 50pcs per carton
Delivery Time: 3-10days
Payment Terms: L/C, T/T
Supply Ability: 5000pcs per day
Detailed Product Description
Product Name: Crimping Tool Color: Blue
AWG: 14/12/10AWG Capacity: 2.5/4.0/6.0mm2
Length: 230mm Packing: Blister Pack
High Light:

230mm Ratcheting Wire Terminal Crimper


230mm ratcheting wire crimper


12AWG Ratcheting Wire Terminal Crimper


Solar Panel Cable Crimping tools for solar panel connectors 2.5-6mm2 AN2546



PROFESSIONAL CRIMPING TOOL - this hand crimper has efficient ratcheting mechanism and professional grade crimping die for proper rock-solid crimps every time. This crimping tool works best with insulated nylon electrical terminals
PRECISE RATCHETING MECHANISM – wire connectors are crimped by squeezing the handle through a complete ratcheting cycle until the handle releases automatically. The ratcheting function allows to secure a wire connector while you can insert the wires into the crimp
ADJUSTABLE CRIMPING FORCE - The tool has a star wheel that allows to adjust crimping height to ensure the right amount of crimping force depending on your crimping project. A designated quick release lever allows to open the crimper jaws in any position
ERGONOMIC COMFORTABLE HANDLES - The ergonomic, cushioned, non-slippery handles were designed to ensure strong grips in any condition. These handles have enough leverage to comfortably crimp AWG 22-10 splices.


1. Capacity:2.5/4/6mm2
2. AWG:26-10AWG
3. Length:230mm
4. Weight:0.6kg

solar Crimper for solar connector

MC3 solar system crimping tools

For non-insulated open plug-type connector



The Type of Solar Tool Kit Introduce for Solar Tool Kit
A-2546B Solar Terminal Crimping Plier Crimping Range: (Multi-Contact) & 2.5/4/6mm2
(With Solar Dies Set) (AWG 14-10)Length:270mm,Weight:0.74Kg
WX-0626 solar Cable Stripper Stripping Rangge:0.9-6.0mm2
Length:165mm, Weight:0.16Kg
Solar Connectors Suitable to solar cable, Easy, quickly and reliable connection of the solar cables to the photovoltaic system
Locator Use with A-2546B Solar Terminal Crimping Plier
30J Head
Wrench 2 PCS Open-end spanner and unlocking tool
hexagon Wrench Use for Installing Dies/MC3 Dies/Tyco Dies
Packing Color box




1. The new PV Crimping Pliers precision pressure line module locking (self locking and releasing mechanism ) and the overall design;

2. In the the repeated pressure line to maintain a higher standard of quality pressure line;

3. The excellent lever transmission design, isobar larger cross-section of the wire, the more labor-saving;

4. Ergonomic design;

5. The positioning device can be fixed in the jaw , to ensure precise positioning of the terminal of the pressure line;

6. Pressure line film and locator under the pressure line terminal selected




1. When can I get the quotation?

Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

We accept T/T (bank transfer), L/C

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM are available.


Picture of crimping tool

Insulated Connectors 230mm Ratcheting Wire Terminal Crimper 0
