CE Certified IP68 Rapid Shutdown Device 12-80V 200mW

Name: CE Certified IP68 Rapid Shutdown Device 12-80V 200mW
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: GD004-20/30
Availability: InStock

Product Details

Place of Origin: China

Certification: CE

Model Number: GD004-20/30

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Negotiation

Packaging Details: PP Bag

Delivery Time: 10days

Payment Terms: T/T

Supply Ability: 1k per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    200mW Consumption Rapid Shutdown Device, IP68 Rapid Shutdown Device, Solar Power Rapid Shutdown Device


Certifications:	CE	Protection Level:	IP68
Operating Voltage Range:	12-80V	Efficiency:	99.9%
Inactive Voltage:	1V@10mA	Type:	Rapid Shutdown Device
Warranty Period:	25years	String Conductor Length:	1200/2400mm

Certifications:	CE
Protection Level:	IP68
Operating Voltage Range:	12-80V
Efficiency:	99.9%
Inactive Voltage:	1V@10mA
Type:	Rapid Shutdown Device
Warranty Period:	25years
String Conductor Length:	1200/2400mm

Description

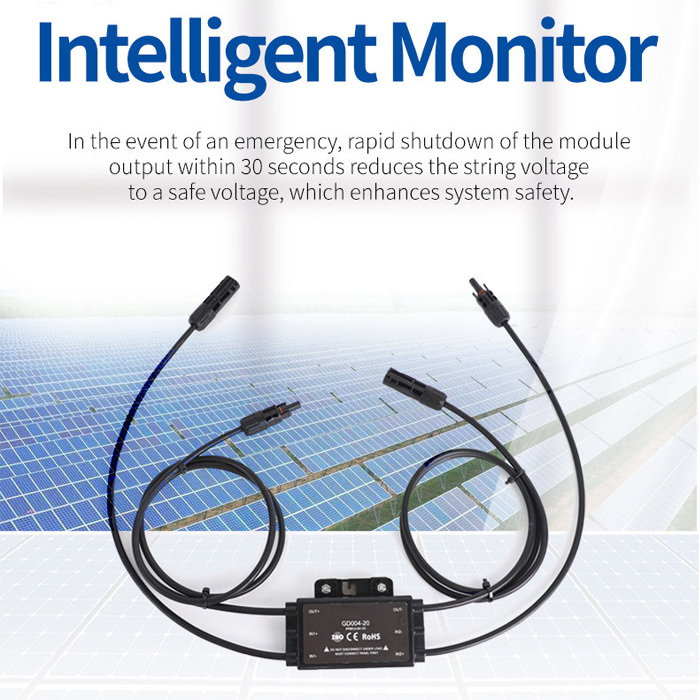

CE Certified IP68 Rapid Shutdown Device 12-80V 200mW

200mW Consumption Solar Power IP68 Rapid Shutdown Device

Product Description

The PV Plant Rapid Shutdown Device is CE certified, meeting European safety, health, and environmental protection standards. This critical safety component provides efficient shutdown capability for solar panel systems during emergencies.

With IP68 protection, the device is completely dustproof and waterproof, making it suitable for harsh outdoor environments. The system features a string conductor length of 1200/2400mm and voltage rating of 1000V (1500V optional).

Key Features

Product Name: Rapid Shutdown Device
Low Power Consumption: 200mW
String Conductor Length: 1200/2400mm
CE Certified for safety compliance
Wide Operating Voltage Range: 12-80V
High Voltage Rating: 1000V (1500V Optional)

Technical Specifications

Parameter	Value
Certifications	CE
Operating Temperature	-40°C to 85°C
Warranty Period	25 years
Efficiency	99.9%
Power Consumption	200mW
Inactive Voltage	1V@10mA
Dimensions	120×77×17mm
Installation	DIN Rail Mounting
Maximum Input Current	20A

Applications

The GD004-20/30 model is designed for emergency shutdown of solar inverters in residential, commercial, and utility-scale solar power systems. Its compact design (120×77×17mm) and IP68 protection make it suitable for diverse installation environments.

Support & Services

Our technical team provides comprehensive support for installation, configuration, and troubleshooting. Services include on-site training, maintenance, and firmware updates to ensure optimal performance and compliance with safety standards.

Packaging & Shipping

Packaging: Sturdy cardboard box with protective wrapping, including user manual and installation accessories.

Shipping: Standard ground shipping (5-7 business days) with tracking number provided. International shipping available.

Frequently Asked Questions

What is the model number of this product?

GD004-20/30

Where is this product manufactured?

China

Is this product certified?

Yes, CE certified

What is the minimum order quantity?

100 units

What are the payment terms?

T/T (Telegraphic Transfer)

What is the daily production capacity?

1,000 units per day
