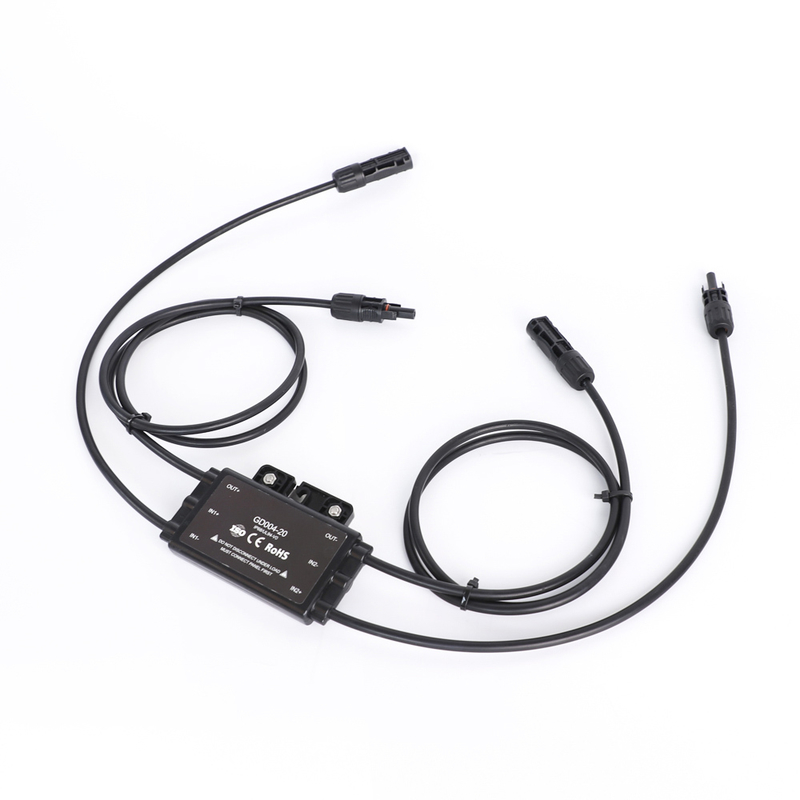

20A Rapid Shutdown Device for Solar Panels 12-80V

Name: 20A Rapid Shutdown Device for Solar Panels 12-80V
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: GD004-20/30
Availability: InStock

Product Details

Place of Origin: China

Certification: CE

Model Number: GD004-20/30

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Negotiation

Packaging Details: PP Bag

Delivery Time: 10days

Payment Terms: T/T

Supply Ability: 1k per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    20A Rapid Shutdown Solar Panel Device


Maximum Input Current:	20A	Operating Voltage Range:	12-80V
Voltage Rating:	1000V (1500V Optional)	Module Conductor Length:	500mm
Certifications:	CE	Type:	Rapid Shutdown Device
Operating Temperature:	-40°C To 85°C	Power Consumption:	200mW

Maximum Input Current:	20A
Operating Voltage Range:	12-80V
Voltage Rating:	1000V (1500V Optional)
Module Conductor Length:	500mm
Certifications:	CE
Type:	Rapid Shutdown Device
Operating Temperature:	-40°C To 85°C
Power Consumption:	200mW

Description

20A Rapid Shutdown Device for Solar Panels 12-80V

Maximum Input Current 20A 12-80V Rapid Shutdown Solar Panel Device

Product Description

The Solar Power System Rapid Shutdown device features an inactive voltage of 1V@10mA, ensuring quick and safe system shutdown during emergencies. Designed for compatibility with string inverters, this UL 1741 certified device offers seamless integration into existing systems. With DIN rail mounting capability and IP68 protection rating, it provides a reliable solution for solar installations of all sizes in harsh outdoor conditions.

Key Features

Product Name: Rapid Shutdown For Solar Power System
Type: Rapid Shutdown Device
Installation: DIN Rail Mounting
Operating Voltage Range: 12-80V
String Conductor Length: 1200/2400mm
Module Conductor Length: 500mm

Technical Specifications

Operating Voltage Range	12-80V
Power Consumption	200mW
Operating Temperature	-40°C to 85°C
Certifications	CE
Protection Level	IP68
Efficiency	99.9%
Inactive Voltage	1V@10mA
Voltage Rating	1000V (1500V Optional)
Maximum Input Current	20A

Applications

The GD004-20/30 PV System Rapid Shutdown Device provides critical emergency shutdown capability for solar panels during maintenance or emergencies. Its compact 120×77×17mm design facilitates easy installation in junction boxes, making it suitable for residential, commercial, and industrial solar systems. The device maintains readiness with 1V@10mA inactive voltage and withstands harsh environmental conditions.

Customization Options

We offer customization services for our Safematic Solar Power Shutdown System. The GD004-20/30 model features a 12-80V operating range, 200mW power consumption, and optional 1500V rating. Minimum order quantity is 100 units with negotiable pricing. Products are packaged in PP bags with 10-day delivery time and T/T payment terms. Daily production capacity reaches 1,000 units.

Support & Services

Our technical support team provides comprehensive assistance for installation, configuration, and operation. We offer troubleshooting and maintenance services throughout the product lifecycle to ensure optimal performance and system safety.

Packaging & Shipping

Package Contents: 1 Rapid Shutdown Device, 1 Installation Manual
Shipping Method: UPS Ground
Delivery Time: 3-5 Business Days
Shipping Cost: To be advised

Frequently Asked Questions

What is the model number of this product?

The model number is GD004-20/30.

Where is this product manufactured?

Manufactured in China.

Does this product have any certifications?

Yes, CE certified.

What is the minimum order quantity?

Minimum order quantity is 100 units.

Is the price negotiable?

Yes, pricing is negotiable.
