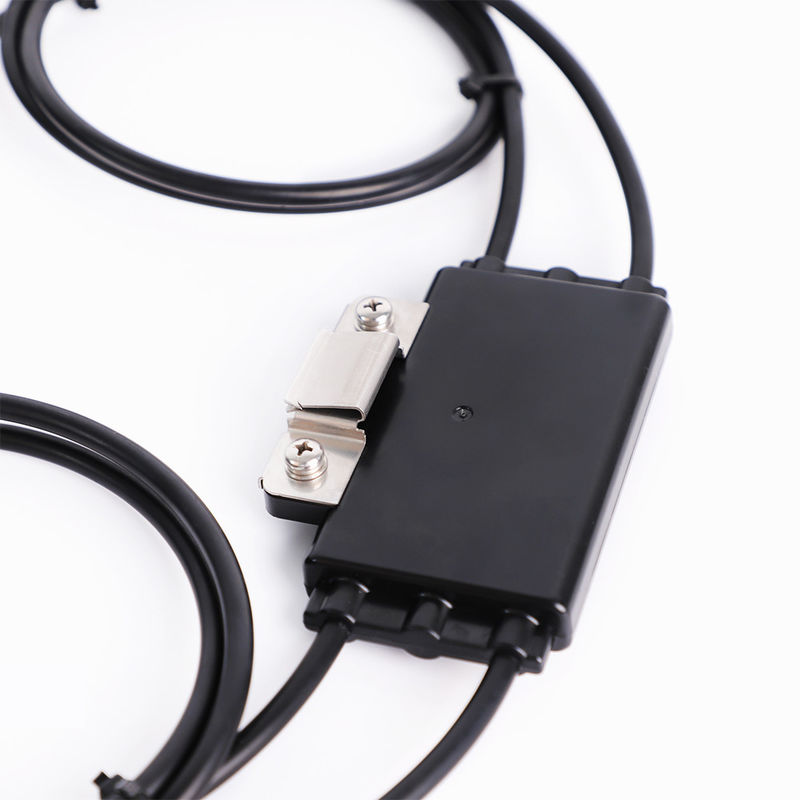

DIN Rail Mount Solar Rapid Shutdown System With IP68 Protection For Solar Module
Product Description
The Rapid Shutdown Device features a Maximum Input Current of 20A and an impressive efficiency rating of 99.9%, ensuring optimal performance with minimal energy consumption for your solar energy system.
In emergency situations, the Solar Energy Shutdown Solution provides an Inactive Voltage of 1V@10mA, enabling safe and rapid system shutdown to minimize electrical hazards and protect both property and personnel.
Backed by a 25-year warranty, this DIN Rail Mount Solar Rapid Shutdown System offers long-term reliability and peace of mind for your solar power installation.
Key Features
- Product Name: Rapid Shutdown For Solar Power System
- String Conductor Length: 1200/2400mm
- Protection Level: IP68
- Application: Solar Power System
- Installation: DIN Rail Mounting
- Efficiency: 99.9%
Technical Specifications
| Parameter |
Value |
| Product Name |
Quick Shutdown System For Solar Panel |
| Type |
PV System Rapid Shutdown Device |
| Voltage Rating |
1000V (1500V Optional) |
| Installation |
DIN Rail Mounting |
| Warranty Period |
25 Years |
| Certifications |
CE |
| Operating Temperature |
-40°C To 85°C |
| Operating Voltage Range |
12-80V |
| Efficiency |
99.9% |
| Module Conductor Length |
500mm |
| Dimensions |
120x77x17mm |
Applications
The GD004-20/30 Rapid Shutdown System is designed for solar power system safety, with applications including:
- Emergency shutdown during maintenance or repairs
- Safety measure during natural disasters
- Theft and vandalism prevention
Its compact size (120x77x17mm), wide operating voltage range (12-80V), and DIN rail mounting make it an ideal choice for solar installations.
Customization & Ordering
Supply Ability: 1,000 units per day
Minimum Order Quantity: 100 units
Payment Terms: T/T
Price: Negotiable
Delivery Time: 10 days
Packaging & Shipping
Package Includes:
- 1 Rapid Shutdown Device
- Mounting Hardware
- User Manual
Shipping Details:
Weight: 1 lb
Dimensions: 6 x 4 x 2 inches
Shipping Method: Ground
Expected Delivery: 3-5 business days
Frequently Asked Questions
Q1. What is the supply ability of this product?
The supply ability is 1,000 units per day.
Q2. What is the model number of this product?
GD004-20/30
Q3. Where is this product made?
China
Q4. Does this product have any certification?
Yes, it has CE certification.
Q5. What is the minimum order quantity for this product?
The minimum order quantity is 100 units.
Q6. What is the price of this product?
The price is negotiable.
Q7. What are the packaging details of this product?
The product is packaged in PP Bags.
Q8. What is the delivery time for this product?
The delivery time is 10 days.
Q9. What are the payment terms for this product?
The payment terms are T/T.
