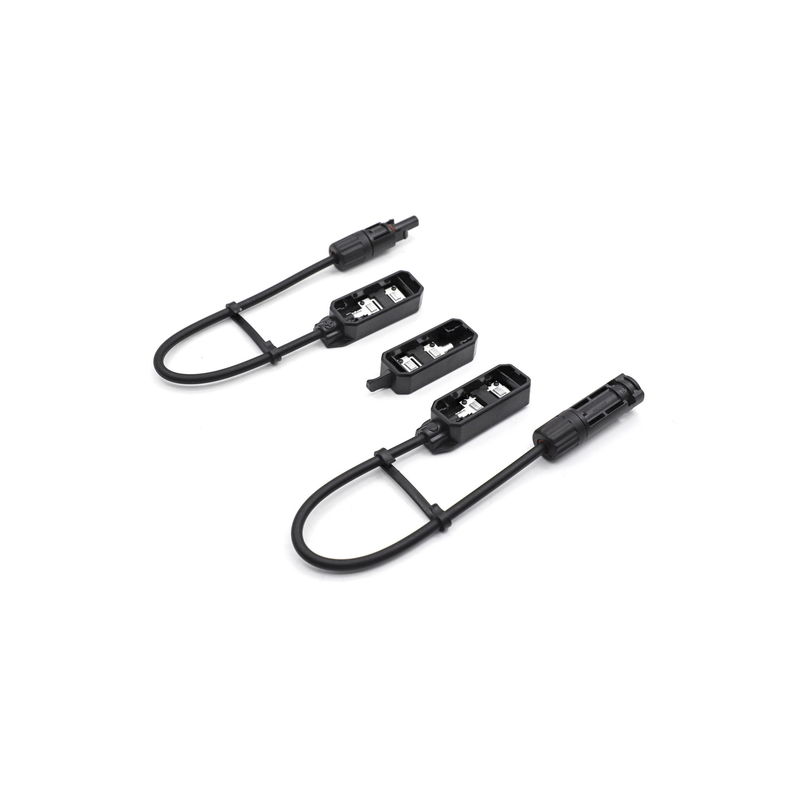

PV Junction Box 1500VDC with Female Male Connector for Solar Panels

Name: PV Junction Box 1500VDC with Female Male Connector for Solar Panels
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PNTK-GGS-001
Availability: InStock

Product Details

Place of Origin: China

Certification: CE/Rohs//ISO

Model Number: PNTK-GGS-001

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Negotiation

Packaging Details: Bulk

Delivery Time: 7-15days

Payment Terms: T/T or L/C at sight

Supply Ability: 5k per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Seamless Connection PV Junction Box, Solar Panel Connection PV Junction Box, PV Solar Connector Box


Wire Size Range:	12AWG / 4mm²	Packing:	Black Box
Tempersture Range:	-40℃ ~ +85℃	Application:	Solar Panel
Rated Voltage:	1500VDC	Connector:	Female And Male
Degree Of Protection:	IP65/IP68 (1m,1h)	Number Of Diodes:	1

Wire Size Range:	12AWG / 4mm²
Packing:	Black Box
Tempersture Range:	-40℃ ~ +85℃
Application:	Solar Panel
Rated Voltage:	1500VDC
Connector:	Female And Male
Degree Of Protection:	IP65/IP68 (1m,1h)
Number Of Diodes:	1

Description

PV Junction Box 1500VDC with Female Male Connector for Solar Panels

PV Junction Box for Solar Panel Systems

The PV Junction Box is an essential component for solar panel systems, providing safe and efficient connections between photovoltaic modules and the rest of your renewable energy setup. Designed for both functionality and aesthetics, this black junction box features professional-grade construction with optional solar connectors for easy installation.

Key Features

Safety Class II certified for enhanced protection
Rated for DC1500V with 20A/25A/30A current options
Single diode prevents reverse current flow
Compatible with 12AWG / 4mm² wire size
Optional solar connector for tool-free installation
CE certified for quality assurance
Operating temperature range: -40℃ to +85℃

Technical Specifications

Parameter	Specification
Model Number	PNTK-GGS-001
Safety Class	II
Rated Voltage	1500VDC
Cable Length	30cm
Connector Type	Female and Male
Number of Diodes	1
Certifications	CE, Rohs, ISO

Applications

This photovoltaic junction box is ideal for various solar energy applications including:

Residential and commercial solar systems
Industrial solar installations
Rural electrification projects
Solar street lighting systems
Solar water pumping stations
Utility-scale solar power plants

Ordering Information

Detail	Information
Minimum Order Quantity	100 units
Delivery Time	7-15 days
Payment Terms	T/T or L/C at sight
Daily Production Capacity	5,000 units
Packaging	Bulk (black box)

Customization Options

We offer customized solutions for your PV junction box requirements, including:

Custom branding and labeling
Special packaging requirements
Modified technical specifications
Bulk order arrangements

Packaging & Shipping

Each junction box is securely packaged in protective materials to ensure safe delivery. We offer worldwide shipping via air or sea freight with tracking information provided for all orders.

Frequently Asked Questions

What certifications does this product have?

Our PV Junction Box is CE, Rohs, and ISO certified, ensuring quality and safety standards.

What is the minimum order quantity?

The minimum order quantity is 100 units, with pricing negotiable based on order volume.

What are the available current ratings?

The junction box is available in 20A, 25A, and 30A configurations to suit different system requirements.
