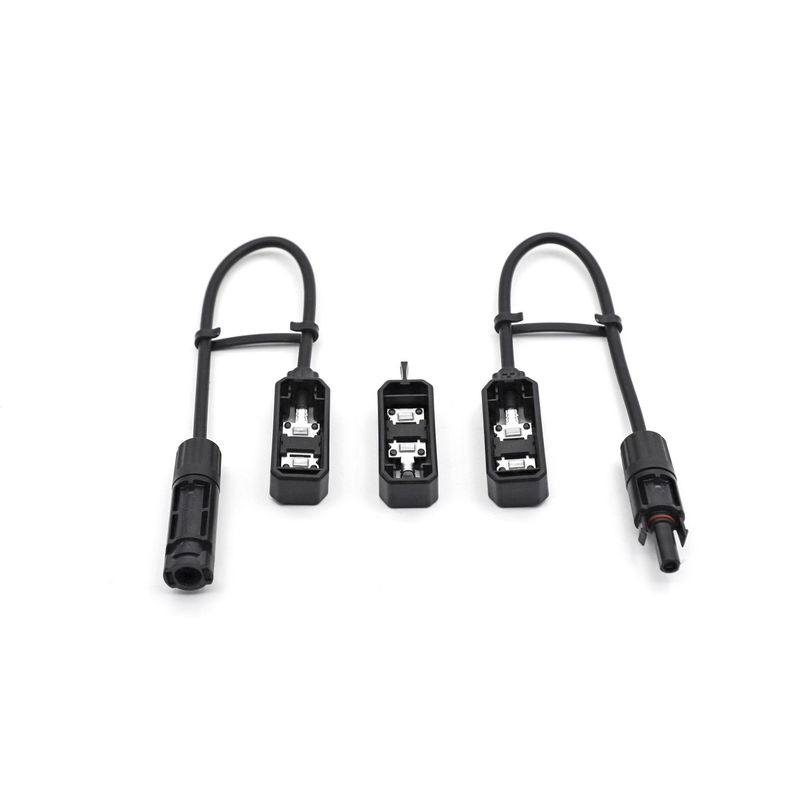

PV Junction Box 30A 1500VDC with 30cm Cable and 1 Diode

Name: PV Junction Box 30A 1500VDC with 30cm Cable and 1 Diode
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PNTK-GGS-001
Availability: InStock

Product Details

Place of Origin: China

Certification: CE/Rohs//ISO

Model Number: PNTK-GGS-001

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Negotiation

Packaging Details: Bulk

Delivery Time: 7-15days

Payment Terms: T/T or L/C at sight

Supply Ability: 5k per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Tin Plated Copper Solar Junction Box, 30cm Cable Solar Junction Box, 1 Pc Diode PV Junction Box


Wire Size Range:	12AWG / 4mm²	Certifications:	CE
Contact Material:	Tin Plated Copper	Tempersture Range:	-40℃ ~ +85℃
Number Of Diodes:	1	Rated Current:	20A/25A/30A
Cable Length:	30cm	Connector:	Female And Male

Wire Size Range:	12AWG / 4mm²
Certifications:	CE
Contact Material:	Tin Plated Copper
Tempersture Range:	-40℃ ~ +85℃
Number Of Diodes:	1
Rated Current:	20A/25A/30A
Cable Length:	30cm
Connector:	Female And Male

Description

PV Junction Box 30A 1500VDC with 30cm Cable and 1 Diode

PV Junction Box - Ultimate Solution for Solar Energy Systems

The PV Junction Box is a vital component in Photovoltaic (PV) systems, designed to connect solar panels to the system while ensuring safe and efficient power generation. Ideal for both residential and commercial applications, this junction box is essential for reliable solar energy production.

Key Features

Specifically designed for solar energy systems
Essential component for renewable energy applications
Compatible with all types of solar panels
Integral part of photovoltaic systems
High rated current (20A/25A/30A) for efficient power flow
Waterproof design with IP65/IP68 protection
Safety Class II certified

Technical Specifications

Product Name	PV Junction Box
Rated Voltage	1500VDC
Rated Current	20A/25A/30A
Number of Diodes	1
Wire Size Range	12AWG / 4mm²
Degree of Protection	IP65/IP68 (1m,1h)
Safety Class	II
HS Code	8535900090

Applications

Residential solar panel systems
Commercial and industrial solar installations
Rural electrification projects
Solar-powered street lights and traffic signals
Off-grid power solutions

Ordering Information

Model Number	PNTK-GGS-001
Place of Origin	China
Certifications	CE/RoHS/ISO
Minimum Order Quantity	100 pieces
Packaging	Black Box (bulk)
Delivery Time	7-15 days
Payment Terms	T/T or L/C at sight
Supply Capacity	5,000 units per day

Packaging & Shipping

Each PV Junction Box is securely packaged in durable black boxes with protective materials to ensure safe transportation. We ship worldwide via reputable carriers (DHL, FedEx, UPS) and provide full tracking information. All international shipments include complete customs documentation.

Frequently Asked Questions

Q: What is the model number of this product?

A: The model number is GGS-001.

Q: What certifications does this product have?

A: It is certified with CE, RoHS, and ISO standards.

Q: What is the minimum order quantity?

A: The minimum order is 100 pieces.

Q: What is the delivery time?

A: Typical delivery time is 7-15 days.
