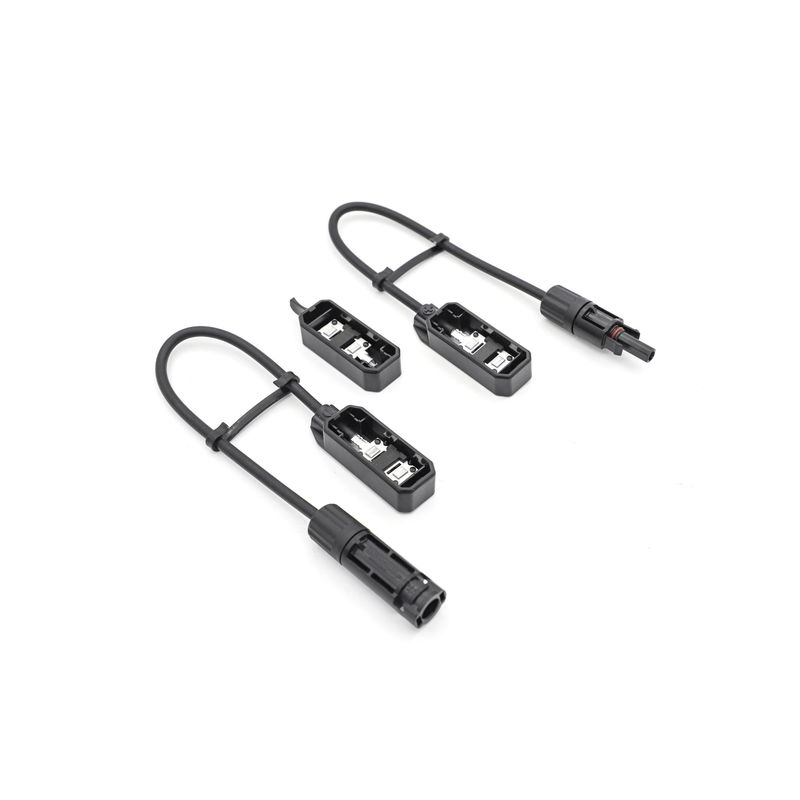

IP68 Solar Panel Junction Box 20A 30A with 1 Diode 12AWG Wire

Name: IP68 Solar Panel Junction Box 20A 30A with 1 Diode 12AWG Wire
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PNTK-GGS-001
Availability: InStock

Product Details

Place of Origin: China

Certification: CE/Rohs//ISO

Model Number: PNTK-GGS-001

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Negotiation

Packaging Details: Bulk

Delivery Time: 7-15days

Payment Terms: T/T or L/C at sight

Supply Ability: 5k per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    4mm2 Wire Solar Cell Junction Box, 12AWG Solar Cell Junction Box, Tin Plated Copper PV Junction Box


Degree Of Protection:	IP65/IP68 (1m,1h)	Number Of Diodes:	1
Wire Size Range:	12AWG / 4mm²	Safety Class:	II
Application:	Solar Panel	Contact Material:	Tin Plated Copper
Rated Current:	20A/25A/30A	No Of Diode:	1 Pc

Degree Of Protection:	IP65/IP68 (1m,1h)
Number Of Diodes:	1
Wire Size Range:	12AWG / 4mm²
Safety Class:	II
Application:	Solar Panel
Contact Material:	Tin Plated Copper
Rated Current:	20A/25A/30A
No Of Diode:	1 Pc

Description

IP68 Solar Panel Junction Box 20A 30A with 1 Diode 12AWG Wire

12AWG / 4mm² Wire Size Range Solar Cell Junction Box With CE Certification

The PV Junction Box is an essential component for solar panel systems, providing safe and efficient connections between panels and the rest of the system. This CE-certified junction box meets the highest standards of quality and reliability, making it ideal for clean energy production.

Certifications & Standards

CE certified - meets EU safety, health, and environmental standards
HS Code: 8535900090 for easy international trade

Key Features

Contact Material: Tin Plated Copper for enhanced conductivity
1 high-performance diode prevents reverse current flow
30cm cable length for flexible installation
Weatherproof construction withstands harsh outdoor conditions
Compact, lightweight design for easy integration
Black box packaging for secure transportation

Technical Specifications

Parameter	Value
Product Name	PV Panel Junction Box
Wire Size Range	12AWG / 4mm²
Number of Diodes	1
Rated Voltage	1500VDC
Rated Current	20A/25A/30A
Temperature Range	-40℃ to +85℃
Degree of Protection	IP65/IP68 (1m,1h)

Applications

This junction box is widely used in photovoltaic systems for both residential and commercial applications, including:

PV panels and solar panel installations
Solar power systems (both off-grid and grid-connected)
Renewable energy projects

Customization Options

Available with the following customizable parameters:

Brand name and model number (PNTK-GGS-001)
Packaging details (standard or customized)
Rated current options (20A/25A/30A)

Packaging & Shipping

Sturdy cardboard boxes with bubble wrap protection
Shipping by air or sea (customer's choice)
Minimum Order Quantity: 100 units
Delivery Time: 7-15 days
Supply Ability: 5,000 units per day

Note: Customers are responsible for any applicable customs and duties fees.
