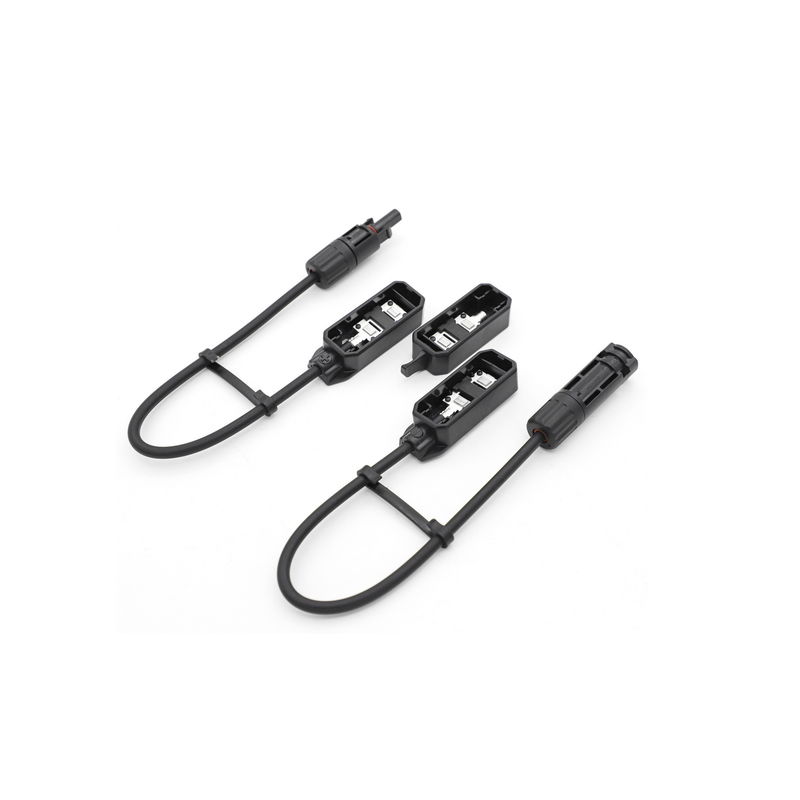

30cm Solar PV Junction Box 20A-30A IP65/IP68 for Solar Panels

Name: 30cm Solar PV Junction Box 20A-30A IP65/IP68 for Solar Panels
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PNTK-GGS-001
Availability: InStock

Product Details

Place of Origin: China

Certification: CE/Rohs//ISO

Model Number: PNTK-GGS-001

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Negotiation

Packaging Details: Bulk

Delivery Time: 7-15days

Payment Terms: T/T or L/C at sight

Supply Ability: 5k per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    30cm Cable Solar Cell Junction Box, 12AWG Solar Panel Connection Box, Solar Connector PV Junction Box


Contact Material:	Tin Plated Copper	No Of Diode:	1 Pc
Safety Class:	II	Number Of Diodes:	1
Application:	Solar Panel	Degree Of Protection:	IP65/IP68 (1m,1h)
Rated Current:	20A/25A/30A	Certifications:	CE

Contact Material:	Tin Plated Copper
No Of Diode:	1 Pc
Safety Class:	II
Number Of Diodes:	1
Application:	Solar Panel
Degree Of Protection:	IP65/IP68 (1m,1h)
Rated Current:	20A/25A/30A
Certifications:	CE

Description

30cm Solar PV Junction Box 20A-30A IP65/IP68 for Solar Panels

30cm Cable Length Solar Cell Junction Box 12AWG / 4mm² Wire Size Range

Product Overview

The PV Junction Box is a crucial component for solar systems, designed to handle high voltage environments with a rated voltage of 1500VDC. Its IP65/IP68 protection ensures durability in harsh conditions, while the single diode design provides reliable operation for solar panels.

Key Features

Clean Energy Junction Box for solar applications
Rated voltage: 1500VDC with 20A/25A/30A current options
IP65/IP68 protection (1m water immersion for 1 hour)
Compact design with 30cm cable length
12AWG / 4mm² wire size range
Female and male connector options available
Temperature range: -40℃ to +85℃

Technical Specifications

Parameter	Value
Product Name	PV Junction Box
Model Number	PNTK-GGS-001
Rated Voltage	1500VDC
Wire Size Range	12AWG / 4mm²
Degree of Protection	IP65/IP68 (1m,1h)
Temperature Range	-40℃ ~ +85℃
Contact Material	Tin Plated Copper
Certifications	CE/Rohs/ISO
HS Code	8535900090

Applications

This junction box is specifically designed for solar panels, suitable for both residential and commercial renewable energy systems. Its optimized design ensures efficient power conversion and reliable performance in various environmental conditions.

Customization Options

Model Number: PNTK-GGS-001
Minimum Order Quantity: 100 pieces
Delivery Time: 7-15 days
Supply Ability: 5,000 pieces per day
Payment Terms: T/T or L/C at sight
Packaging: Bulk

Keywords: Solar Cell Junction Box, Alternative Energy Junction Box, Photovoltaic Junction Box

Packaging & Shipping

Sturdy cardboard box packaging with proper labeling
International shipping with complete customs documentation
Multiple shipping options including express delivery
Professional logistics tracking for timely delivery

Frequently Asked Questions

Q: What is the supply ability of this product?

A: 5,000 pieces per day.

Q: What certifications does this product have?

A: CE, Rohs, and ISO certified.

Q: What is the minimum order quantity?

A: 100 pieces.

Q: What is the delivery time?

A: 7-15 days after order confirmation.
