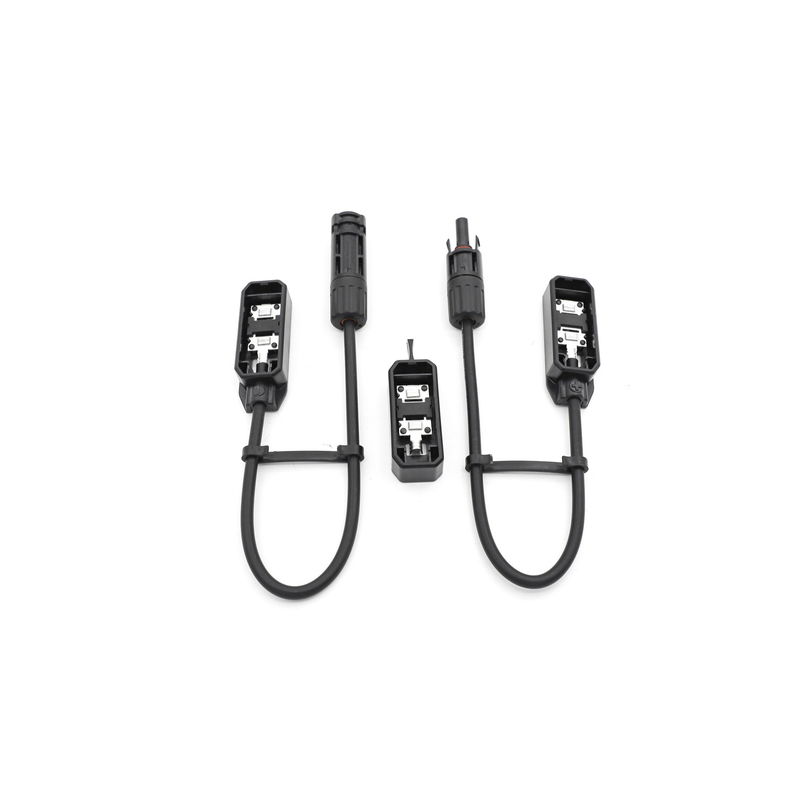

1 Diode PV Junction Box IP68 1500VDC for Solar Panels

Name: 1 Diode PV Junction Box IP68 1500VDC for Solar Panels
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PNTK-GGS-001
Availability: InStock

Product Details

Place of Origin: China

Certification: CE/Rohs//ISO

Model Number: PNTK-GGS-001

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Negotiation

Packaging Details: Bulk

Delivery Time: 7-15days

Payment Terms: T/T or L/C at sight

Supply Ability: 5k per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            IP65 Solar Cell Junction Box, Female Connector Solar Cell Junction Box, DC1500V Solar PV Junction Box


No Of Diode:	1 Pc	Number Of Diodes:	1
Certifications:	CE	Degree Of Protection:	IP65/IP68 (1m,1h)
Application:	Solar Panel	Contact Material:	Tin Plated Copper
Hs Code:	8535900090	Tempersture Range:	-40℃ ~ +85℃
Cable Rated Voltage:	DC1500V	Cable Type:	4 Mm2
Color:	Black	Connector:	Female And Male
Safety Class:	II

No Of Diode:	1 Pc
Number Of Diodes:	1
Certifications:	CE
Degree Of Protection:	IP65/IP68 (1m,1h)
Application:	Solar Panel
Contact Material:	Tin Plated Copper
Hs Code:	8535900090
Tempersture Range:	-40℃ ~ +85℃
Cable Rated Voltage:	DC1500V
Cable Type:	4 Mm2
Color:	Black
Connector:	Female And Male
Safety Class:	II

Description

1 Diode PV Junction Box IP68 1500VDC for Solar Panels

1 Pc Diode And Solar Cell Junction Box With Connector Female And Male

Product Overview

The PV Junction Box is a vital component in solar energy systems, acting as a connection point between solar panels and the rest of the system. Also known as Solar Cell Junction Box, Alternative Energy Junction Box, or Solar Panel Junction Box, it provides reliable and safe connections for optimal performance.

Key Features

Wire Size Range: Accommodates 12AWG or 4mm² wires for flexible installations
Rated Current Options: Available in 20A, 25A, and 30A configurations
Certifications: CE certified for safety and quality compliance
Temperature Range: Operates in extreme conditions from -40℃ to +85℃
Safety Class: Class II protection for enhanced safety
Rated Voltage: 1500VDC capacity for high-performance systems

Technical Specifications

Parameter	Specification
Product Name	PV Junction Box
Hs Code	8535900090
Temperature Range	-40℃ to +85℃
Wire Size Range	12AWG / 4mm²
Degree of Protection	IP65/IP68 (1m, 1h)
Contact Material	Tin Plated Copper
Number of Diodes	1

Applications

Our PV Junction Box is essential for various solar energy applications:

Residential and commercial solar panel installations
Solar farms and large-scale power plants
Renewable energy systems including wind and hydroelectric
Industrial and commercial building solar solutions

Ordering Information

Attribute	Detail
Model Number	PNTK-GGS-001
Minimum Order Quantity	100 units
Packaging	Bulk
Delivery Time	7-15 days
Payment Terms	T/T or L/C at sight
Daily Production Capacity	5,000 units

Frequently Asked Questions

Q: What certifications does this product have?

A: The PV Junction Box is certified with CE, Rohs, and ISO standards.

Q: What is the temperature range for operation?

A: It operates reliably in temperatures from -40℃ to +85℃.

Q: What is the degree of protection?

A: The junction box features IP65/IP68 protection (1m, 1h) for durability.

Q: Can I order smaller quantities than the MOQ?

A: The minimum order quantity is 100 units, but please contact us to discuss your specific needs.
