Waterproof Solar Double Cable Entry Gland Box For Rvs Boats Yacht Roofs
|Product Name||Double Cable Entry Gland Box||Optional Connector||Solar Connector|
waterproof cable entry gland box,
cable entry gland box IP68,
waterproof roof cable entry gland
Waterproof ABS Solar Double Cable Entry Gland Box for RVs, Boats, Yacht, Roofs
Solar Double Cable Entry Gland adopts a white color scheme that matches more with motorhomes. And it is a drop-shaped design and PG11 waterproof connector as to repel water, suitable for all cable types from 14AWG to 10AWG.It's an ideal way for routing the cables while mounting solar panels on vehicles and boats, as well as other installations on RVs, garages,sheds and so on.This product is applying for the design patent, please identify our unique design.
2. Can be fixed with Glue (not included) Sikaflex 221 Sikaflex 252, 291, dicor sealant, alike or stainless steel self-tapping
3.Don't worry about the size of your cable! Our JB-01 comes with two glands:5-9mm and 6-12mm.
screws (not included) depending on position and sealing requirements etc.
Perfect for solar panels, other external devices,suitable for most round cables for Solar Panel,DC power, Aerial, satellite, Air conditioning, Lighting etc.
|Product name||Waterproof ABS Double Solar Cable Entry Box For Amazon Ebay abs / plastic mounting bracket|
|Material||Anti-UV ABS Plastic|
|Cable Gland Diameter Range:||6mm to 12mm|
|Size||5.12” L x 3.74” W x 1.57” H|
|Application||Flat surface PV Solar Panel Installation|
|Keyword||Solar Panel Ground Mounting|
1. With the capacity of anti-aging and resistance to ultraviolet radiation on the outer cover
2. To meet the using requirement under bad outdoor condition
3. The self-locking function makes the connection mode is more convenient and firm
4. Anti electric shock insulation protection science, has good security
5. Terminals installed firmly, and convergence with good weldability
1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67

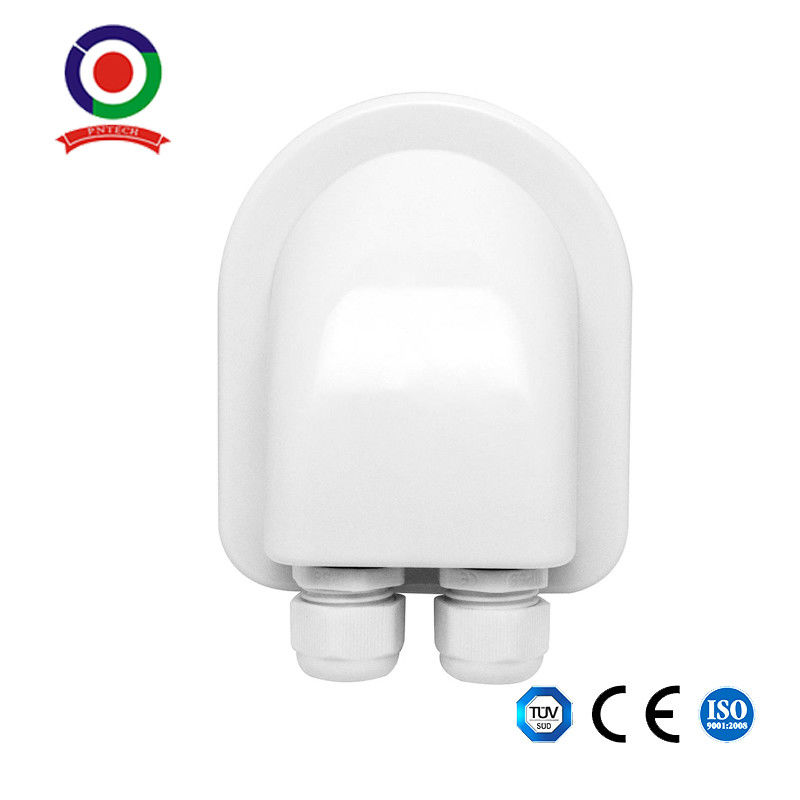

Picture of Solar Double Cable Entry Gland Box
