Heat Resistant IP67 Waterproof Solar PV Junction Box with UL94-V0/5VA Flame Resistance and 1000VDC Rated Voltage

Name: Heat Resistant IP67 Waterproof Solar PV Junction Box with UL94-V0/5VA Flame Resistance and 1000VDC Rated Voltage
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV-YN002-2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/UL/CE/ISO9001

Model Number: PV-YN002-2

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: Negotiation

Packaging Details: Bulk 50pcs/carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 5000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    solar pv junction box, pv module junction box


Product Name:	PV Junction Box	Flame Resistance:	UL94-V0/5VA
Color:	Black	Protection Degree:	IP67
Diode Current::	10A	Rated Voltage:	1000VDC

Product Name:	PV Junction Box
Flame Resistance:	UL94-V0/5VA
Color:	Black
Protection Degree:	IP67
Diode Current::	10A
Rated Voltage:	1000VDC

Description

Heat Resistant IP67 Waterproof Solar PV Junction Box with UL94-V0/5VA Flame Resistance and 1000VDC Rated Voltage

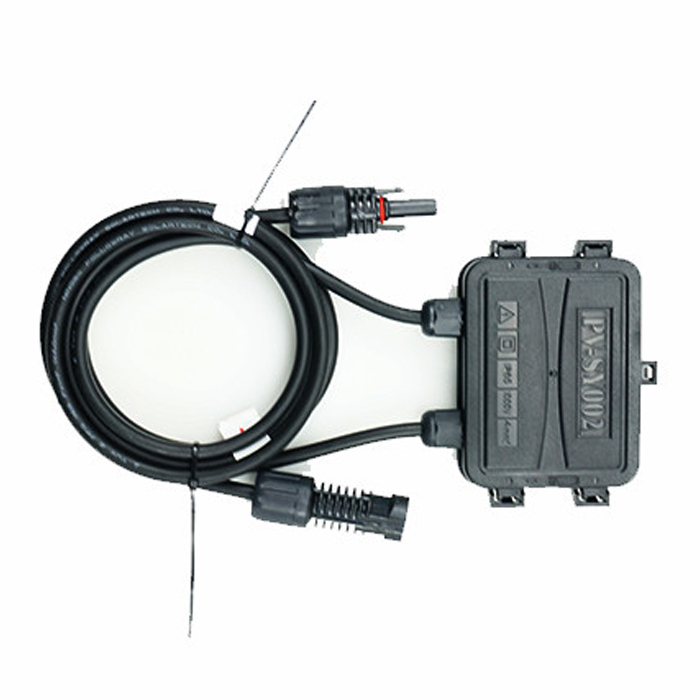

Heat Resistant Solar PV Junction Box, Anti-Aging Solar Panel Junction Box

TUV certified heat resistant IP67 waterproof Solar PV Junction Box for Solar Panels

Key Features

Enhanced PA66 material construction
Simple, quick and safe installation
Versatile structure design with interchangeable serial and parallel connection options
Multiple wiring solutions supporting 2 to 6 input/output connection groups
IP67 rated perfect seal gasket for outdoor installation
UV-resistant and meets flammability class UL94-5VA
Certifications: TUV and UL

Technical Specifications

Product Name	PV Junction box
Certificate	TUV
Rated Voltage	1000V DC(TUV)
Rated Current	10A
Temperature Range	-40ºC~+90ºC
Safety Class	Class II
Protection Degree	IP67
Wire Size Range	4mm²
Flame Resistance	UL94-V0/5VA
Waterproofing Structure	Seal
Width Of Copper Ribbons	Up to 8mm
Connection Method	Spring Clamping
Insulation Material	PPO, black
Contact Material	Copper, Tin plated
No. Of diode	2
Optional connector	connector

Main Advantages

Anti-aging and UV radiation resistant outer cover
Designed for harsh outdoor conditions
Self-locking function for convenient and secure connections
Anti-electric shock insulation protection for enhanced safety
Firmly installed terminals with excellent weldability

Assembly Instructions

Use only specified parts and tools for guaranteed safety and performance
Isolate PV connectors from power supply during assembly/disassembly
End product must provide protection from electric shock
Never unplug under load - ensure no-load state before disconnecting
Protect disconnected connectors with sealing caps
Plugged parts maintain IP67 watertight rating

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of inquiry. For urgent requests, please call with complete specifications.

How long about the delivery?

Typically 3-4 working days after payment, depending on quantity.

What's your payment terms?

We accept T/T (bank transfer) and L/C.

Do you accept the customized order?

Yes, we do.

Do you offer OEM & ODM?

Yes, OEM & ODM services are available.

Product Images
