Flame Resistant Photovoltaic Junction Box Anti Electric Shock Insulation Protection
|Product Name||PV Junction Box||Optional Connector||Solar Connector|
|Diode Current||10A||Rated Voltage||1000VDC|
solar pv junction box,
pv module junction box
Flame resistant TUV certified IP67 1000VDC solar pv junction box with one diode
Cable size: 4.0mm²
Flame class: UL94V-0
Box material: PPO
Joining of ribbon: Soldering type or Clamping type
|Product Name||PV Junction box|
|Rated Voltage||1000V DC(TUV)|
|Safety Class||Class II|
|Wire Size Range||4mm²|
|Width Of Copper Ribbons||Up to 8mm|
|Connection Method||Spring Clamping|
|Insulation Material||PPO, black|
|Contact Material||Copper, Tin plated|
|No. Of diode||1|
Main Speciality :
1. With the capacity of anti-aging and resistance to ultraviolet radiation on the outer cover
2. To meet the using requirement under bad outdoor condition
3. The self-locking function makes the connection mode is more convenient and firm
4. Anti electric shock insulation protection science, has good security
5. Terminals installed firmly, and convergence with good weldability
1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67

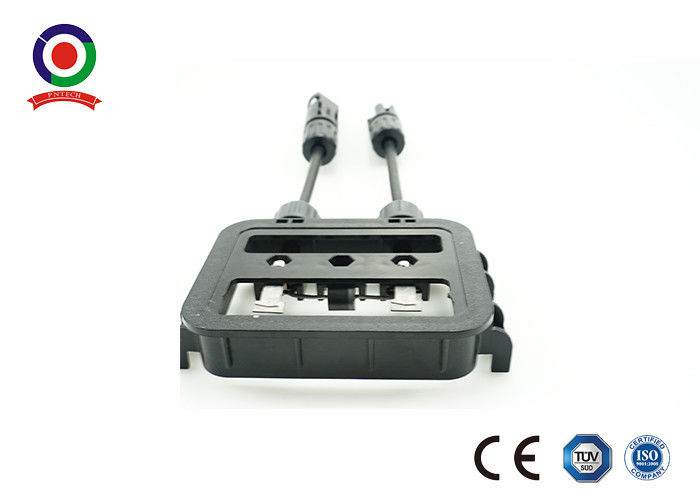

Picture of PV Solar junction box
