UV Resistant Solar PV Array Junction Box Good Security With Lighting Protection

Place of Origin China
Brand Name Pntech
Certification TUV/UL/CE/ISO9001
Model Number PV-YN002
Minimum Order Quantity 1pc
Price Negotiation
Packaging Details Bulk 50pcs/carton
Delivery Time 3-10days
Payment Terms L/C, T/T
Supply Ability 5000pcs per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name PV Junction Box No.of Diode 1 Pc
Color Black Protection Degree IP67
Diode Current 10A Rated Voltage 1000VDC
High Light

solar pv junction box

,

photovoltaic junction box

Leave a Message
Product Description



DC 1000V 1 diode PV Array with Lighting Protection Solar Module Junction Box



Description:



Diode No.: 1 pc

Protection class: Class II
Contact Material: Copper, tin plated
Contact resistance: ≤5mΩ
Protection degree: IP 65
Withdrawal Force: ≥50N
Temperature Range: -40ºC~+85ºC
Flame Class: UL94V-0
Rated Voltage TUV 1000V DC
Rating current 10A
Cable size 4.0mm sq (90CM)
Pin OD: 4.0mm
Proof voltage: TUV 6000V AC(1Min) / UL 2200V DC (1Min)
Pollution degree: 2



Product Name PV Junction box
Certificate TUV
Rated Voltage 1000V DC(TUV)
Rated Current 10A
Temperature Range -40ºC~+90ºC
Safety Class Class II
Protection Degree IP67
Wire Size Range 4mm²
Flame Resistance UL94-V0/5VA
Waterproofing Structure Seal
Width Of Copper Ribbons Up to 8mm
Connection Method Spring Clamping
Insulation Material PPO, black
Contact Material Copper, Tin plated
No. Of diode 1
Diode type 15SQ045
Optional connector connector


Main Speciality :



1. With the capacity of anti-aging and resistance to ultraviolet radiation on the outer cover



2. To meet the using requirement under bad outdoor condition



3. The self-locking function makes the connection mode is more convenient and firm



4. Anti electric shock insulation protection science, has good security



5. Terminals installed firmly, and convergence with good weldability



Assembly Instructions



1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.

3. The end product must provide protection from electric shock.

4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.

5. Disconnected connectors should be protected from dirt and water with sealing caps.

6. Plugged parts are watertight IP67



FAQ:



1. When can I get the quotation?

Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

We accept T/T (bank transfer), L/C

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM are available.

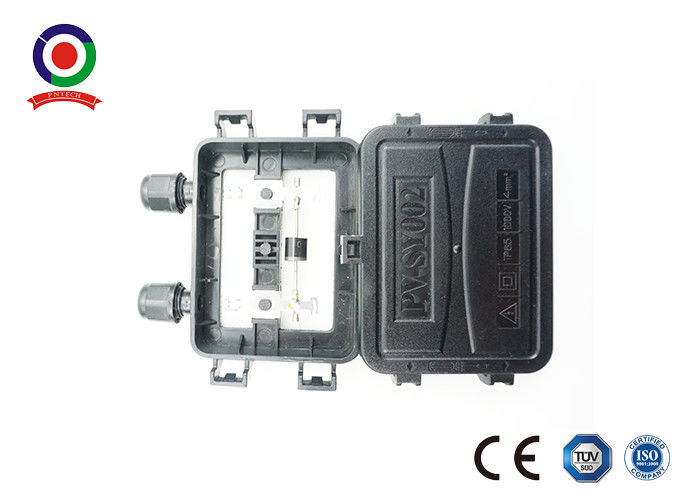

Picture of PV Solar junction box



UV Resistant Solar PV Array Junction Box Good Security With Lighting Protection 0
