Product Name: |
PV Solar Junction Box |
HS Code: |
8 To 1 Y Branch 538900000 |
Color: |
Black |
Protection Degree: |
IP67 |
Diode Current:: |
13A |
Rated Voltage: |
1000VDC |
Product Name: |
PV Solar Junction Box |
HS Code: |
8 To 1 Y Branch 538900000 |
Color: |
Black |
Protection Degree: |
IP67 |
Diode Current:: |
13A |
Rated Voltage: |
1000VDC |
TUV UL approved 6 diodes PV Solar Junction Box for Solar Energy System
Description:
* Simple, quick, safe and effective field assembly.
* Flexible and multi-connecting solution for input and output 2 to 6 series.
* Excellent thermal dissipation and logical volume bring on lower interior temperature according to new standard IEC61215, IEC61730, UL1703.
* Innovative sealed, waterproof and dust resistant design: IP67.
* Excellent plastic material according to UL94-5VA weather and UV resistant for long-term outdoor application.
| Product Name | PV Junction box |
| Certificate | TUV |
| Rated Voltage | 1000V DC(TUV) |
| Rated Current | 13A |
| Temperature Range | -40ºC~+90ºC |
| Safety Class | Class II |
| Protection Degree | IP67 |
| Wire Size Range | 4mm² |
| Flame Resistance | UL94-V0/5VA |
| Waterproofing Structure | Seal |
| Width Of Copper Ribbons | Up to 8mm |
| Connection Method | Spring Clamping |
| Insulation Material | PPO, black |
| Contact Material | Copper, Tin plated |
| Overall Dimension | 125×130×23mm |
| No. Of diode | 6 |
| Diode type | 15SQ045 |
| Optional connector | connector |
Main Speciality :
1. With the capacity of anti-aging and resistance to ultraviolet radiation on the outer cover
2. To meet the using requirement under bad outdoor condition
3. The self-locking function makes the connection mode is more convenient and firm
4. Anti electric shock insulation protection science, has good security
5. Terminals installed firmly, and convergence with good weldability
Assembly Instructions
1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

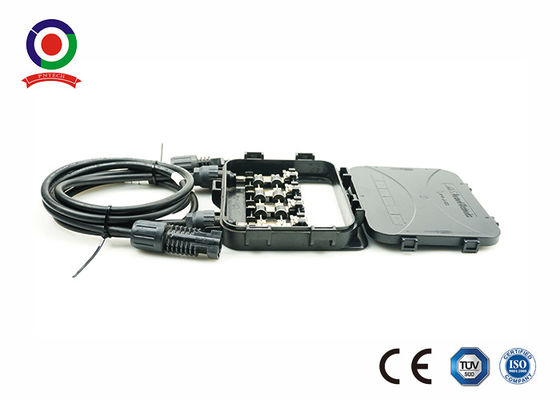

Picture of PV Solar junction box
