Waterproof Solar PV Junction Box with 6 Diodes 1000VDC Rated Voltage and 13A Diode Current
Waterproof Solar PV Junction Box with 6 Diodes 1000VDC Rated Voltage and 13A Diode Current

Waterproof Solar PV Junction Box with 6 Diodes 1000VDC Rated Voltage and 13A Diode Current

Product Details

Place of Origin: China

Certification: CE/ISO9001

Model Number: PV-A4S

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: Negotiation

Packaging Details: Bulk 50pcs/carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 5000pcs per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

solar pv junction box

,

photovoltaic junction box

Product Name:
PV Junction Box
Color:
Black
Safety Class:
II
Protection Degree:
IP67
Diode Current::
13A
Rated Voltage:
1000VDC
Product Name:
PV Junction Box
Color:
Black
Safety Class:
II
Protection Degree:
IP67
Diode Current::
13A
Rated Voltage:
1000VDC
Description
Waterproof Solar PV Junction Box with 6 Diodes 1000VDC Rated Voltage and 13A Diode Current
Waterproof Electric PV Junction Box High Current Carrying Capacity With 6 Diodes
TUV UL 1000V IP67 waterproof electric PV solar junction box with 6 Diodes
Key Features
  • High current and voltage carrying capacity
  • Bus bar connection uses soldering mode
  • Outer cover has anti-aging and UV radiation resistance
  • Suitable for outdoor iron environments
  • Glue-sealed for waterproof and dustproof protection (IP67 rated)
Technical Specifications
Product Name PV Junction box
Certificate TUV No
Rated Voltage 1000V DC(TUV)
Rated Current 13A
Temperature Range -40ºC~+90ºC
Safety Class Class II
Protection Degree IP67
Wire Size Range 4mm²
Flame Resistance UL94-V0/5VA
Waterproofing Structure Seal
Width Of Copper Ribbons Up to 8mm
Connection Method Spring Clamping
Insulation Material PPO, black
Contact Material Copper, Tin plated
Overall Dimension 125×130×23mm
No. Of diode 6
Diode type 15SQ045
Optional connector connector
Main Speciality
  • Anti-aging and UV-resistant outer cover
  • Designed for harsh outdoor conditions
  • Self-locking function for convenient and secure connections
  • Anti-electric shock insulation protection for enhanced safety
  • Firmly installed terminals with excellent weldability
Assembly Instructions
  • Use only specified parts and tools for guaranteed safety and performance
  • Isolate PV connectors from power supply during assembly/disassembly
  • End product must provide electric shock protection
  • Never unplug under load - switch off DC/AC converter first
  • Protect disconnected connectors with sealing caps
  • Plugged parts maintain IP67 watertight rating
Frequently Asked Questions
When can I get the quotation?
Within 24 hours of getting the inquiry. For urgent requests, please call with complete specifications.
How long about the delivery?
Typically 3-4 working days after payment, depending on quantity.
What's your payment terms?
We accept T/T (bank transfer) and L/C.
Do you accept the customized order?
Yes, we do.
Do you offer OEM & ODM?
Yes, OEM & ODM services are available.
Product Image

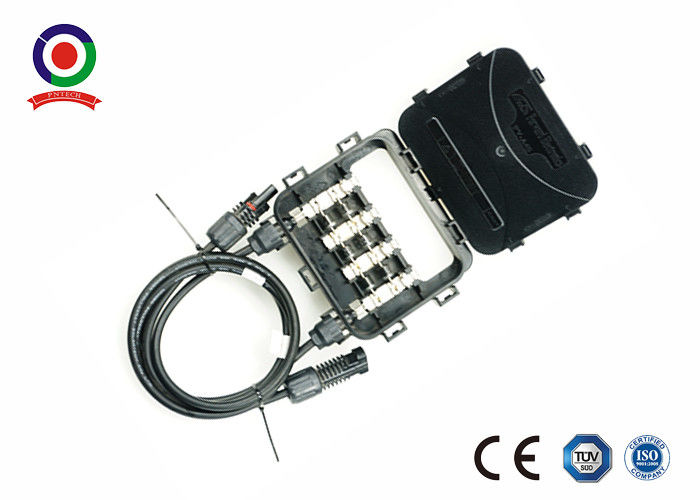

Waterproof Solar PV Junction Box with 6 Diodes 1000VDC Rated Voltage and 13A Diode Current 0
