Solar PV System 2.5 4.0 6.0mm2 Hand Crimper Tool

Place of Origin China
Brand Name Pntech
Certification ISO9001
Model Number C4K-A
Minimum Order Quantity 1set
Price Negotiation
Packaging Details 1set/bag 20sets per carton
Delivery Time 3-10days
Payment Terms L/C, T/T
Supply Ability 1000sets per day
Product Details
Product Name Wire Terminal Crimping Set Function Mulit-purpose
Material Carbon Steel Capacity 2.5/4.0/6.0mm2
Dimension 30.5x20.5x7.5cm Packing Fabric Bag
High Light

6.0mm2 Hand Crimper Tool

,

4.0mm2 Hand Crimper Tool

,

2.5mm2 Ratcheting Wire Terminal Crimping Kit

Leave a Message
Product Description

Solar energy systems PV Hand Crimper Tool Ratcheting Wire Terminal Crimping Set



1PCS A-2546B Crimping Tools(crimping range:2.5,4,6.0mm2),

1PCS Cable Stripper with cutter for cutting cables 30mm max and stripping cables 0.6-2.6mm2,

2PCS 2546S Spanner,

1PCS locator,

1PCS connector,

1PCS die set(crimping range:2.5,4,6.0mm2),

1PCS die set(crimping range:1.5,2.5,4,6.0mm2),

1PCS Hex Spanner,Several screws



 Contain:


No. The Type of Solar Kits Introduce
1 A2546B solar cable crimper(With Solar Dies Set) Solar cable crimper
Crimping Range: (Multi-Contact) & 2.5/4/6mm2 (AWG 26-10)
Length:270mm, Weight:0.74Kg
2 Locator Use with A-2546B Solar Cable Crimper
3 Hex wrench Use for Installing Dies/MC3 Dies/Tyco Dies
4 solar Dies Set A Pair of Dies for MC3 solar connector
(Multi-Contact) & 2.5/4/6mm2
(AWG 14/12/10) solar cable.
6 Solar Test Leads A Pair of Solar Test leads for solar
connectors
2 x 150cm test leads, IP65 Connector,
4mm connectors,
High quality 1mm2 cable, 1000V / 19A CE
Warning Labels,
Allows for the safe connection to PV Panels,
Speeds up testing,
Exceeds GS38 Standards
7 LA-2546B solar cable stripper Universal solar cable stripper, for
2.5/4/6mm2 (AWG 14/12/10) solar cable
Length:170mm, Weight:0.32Kg
8 WX-206 solar cable cutter Solar cable cutter for Soft cable/Wood sticks/
Dowel rods/Animal Nail/Rope/
Cord and many other materials
cable: 24mm2(3/8”) flexible
Material: stainless steel blade and TPR handles
Length:165mm, Weight:0.12Kg
9 Solar connector spanner 2 PCS Open-end spanner and unlocking
tool ( and PLUS)
10 Straight Screwdriver R&X screwdriver 5x75mm(Dia.*Length)
Material of Head: S2 Steel
11 Cross screwdriver IWISS screwdriver 6x100mm(Dia.*Length)
Material of Head: S2 Steel
12 Bag Carrying Oxford Zipper Bag: 305×205×75(mm)



HOW TO USE THE SOLAR CONNECTOR CRIMPER TOOL TO COMPLETE SOLAR CABLE?



The female metal work is great bigger than the male metalwork, it should match the male connector, and vice versa.

Step A: Confirm which connector should the bare end put in. If the other end is a male connector, the bare end should put in the female connector, vice versa.
Step B: (Take PNTECH's solar cable as an example) Lead the red cable through the base, strain relief and the compression sleeve, then crimp the red cable's bare end into the female metalwork, put in the male connector.
Step C: (Take PNTECH's solar cable as an example) Lead the black cable through the base, strain relief and the compression sleeve, then crimp the red cable's bare end into the male metalwork, put in the female connector.

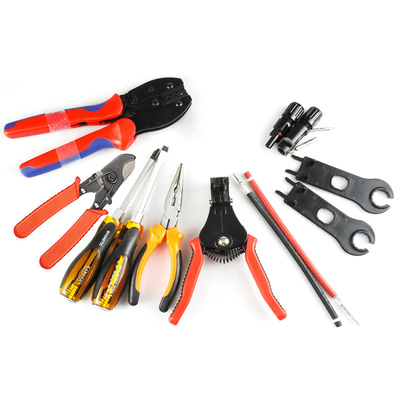

Picture of Wire Terminal Crimping Set

 Solar PV System 2.5 4.0 6.0mm2 Hand Crimper Tool 0
