TUV EN50618 Certified 1x6mm² XLPO Insulated Solar PV Cable for Photovoltaic Systems

Product Details

Place of Origin: Zhejiang, China

Brand Name: PNTECH

Certification: TUV, CE, ISO9001, RoHS

Model Number: H1Z2Z2-K 1x6mm²

Payment & Shipping Terms

Minimum Order Quantity: 500m

Price: USD 0.35-0.65 per meter

Packaging Details: 500m/reel, wooden drum with PE film wrap, export pallet

Delivery Time: 3-10 working days

Payment Terms: T/T,L/C,Western Union

Supply Ability: 100000 meters per week

Get Best Price
Contact Now
Specifications
Highlight:

h1z2z2 k Solar PV Cable

,

TUV Solar PV Cable

,

1KV Solar PV Cable

Description
TUV EN50618 Certified 1x6mm² XLPO Insulated Solar PV Cable for Photovoltaic Systems
H1Z2Z2-K 1x6mm² TUV EN50618 Certified XLPO Insulated Single Core Solar PV DC Cable
The H1Z2Z2-K 1x6mm² solar PV cable from ZHEJIANG PNTECH TECHNOLOGY CO., LTD. is a premium single-core photovoltaic cable engineered to the EN50618:2014 standard. Designed for demanding solar installations, it features a tinned copper conductor with XLPO (cross-linked polyolefin) dual-layer insulation and sheath, delivering exceptional electrical performance, mechanical durability, and long-term reliability in both residential and commercial photovoltaic systems.
Key Features
  • TUV EN50618 Certified: Fully compliant with the latest EN50618:2014 international standard for photovoltaic cables, ensuring safety and performance for solar DC applications up to 1.5KV. The cable is TUV approved and manufactured under strict ISO9001 quality management.
  • XLPO Double-Layer Insulation: Both the inner insulation and outer sheath utilize electron beam cross-linked polyolefin (XLPO), providing superior thermal stability with a rated temperature range of -40°C to 90°C and an exceptional 25-year theoretical service life.
  • Halogen-Free and Flame Retardant: The XLPO compound is halogen-free, low-smoke, and low-toxicity, passing the EN60332-1-2 vertical flame test. It meets RoHS 2.0 environmental standards, making it suitable for eco-conscious projects worldwide.
  • Excellent Weather and UV Resistance: Engineered for outdoor exposure, the cable resists UV degradation, ozone, oil, and grease, maintaining integrity in harsh environmental conditions including direct sunlight and extreme weather.
  • High Conductivity Tinned Copper Conductor: Features 84 strands of 0.285mm tinned copper (TS 84/0.285), achieving a low conductor resistance of ≤3.39 Ω/km at 20°C for minimal power loss across long cable runs.
  • Superior Electrical Insulation: With an insulation resistance of ≥500 MΩ·km and voltage withstand capability of AC 6.5KV or DC 15KV for 5 minutes, the cable ensures safe and reliable power transmission in solar arrays.
  • Flexible Installation: The fine-stranded construction and XLPO jacket deliver excellent flexibility and stripping performance, simplifying routing through conduits, cable trays, and tight spaces during installation.

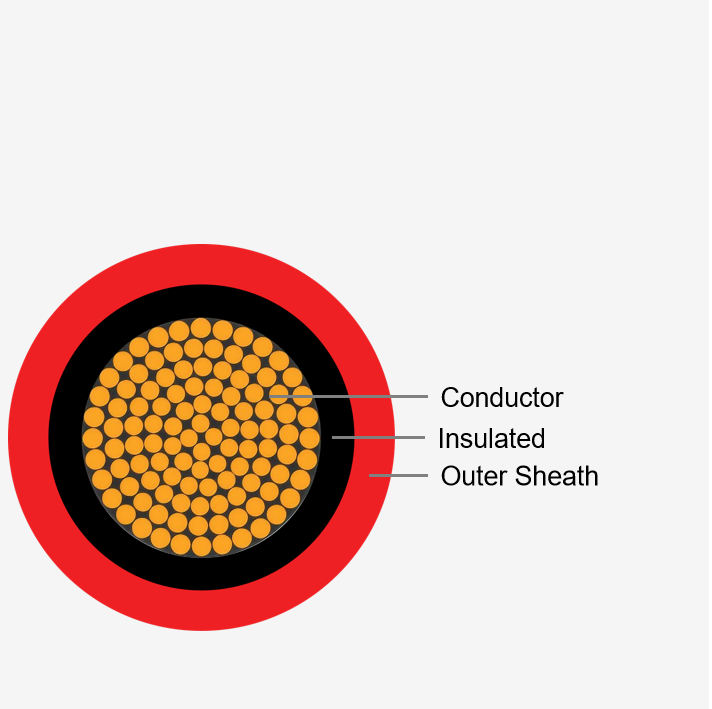

Technical Specifications
Product Name H1Z2Z2-K 1x6mm² Solar PV Cable
Applicable Standard EN50618:2014
Conductor Material Tinned Plated Copper
Conductor Construction TS 84/0.285±0.015 mm
Conductor Outer Diameter 3.0 mm
Insulation Material XLPO (Cross-Linked Polyolefin)
Insulation Finished OD 4.5±0.1 mm
Insulation Avg. Thickness ≥0.7 mm
Insulation Min. Thickness ≥0.53 mm
Sheath Material XLPO (Cross-Linked Polyolefin)
Sheath Finished OD 6.1±0.2 mm
Sheath Avg. Thickness ≥0.8 mm
Sheath Min. Thickness ≥0.58 mm
Rated Voltage AC 1.0/1.0 KV, DC 1.5 KV
Rated Temperature -40°C to 90°C
Conductor Resistance (20°C) ≤3.39 Ω/km
Insulation Resistance (20°C) ≥500 MΩ·km
Voltage Withstand Test AC 6.5KV or DC 15KV, 5 min
Spark Test Voltage 7 KV
Short-Circuit Temperature ≤200°C / 5s
Min. Tensile Strength (Insulation) ≥8.0 N/mm²
Min. Break Elongation Rate ≥125%
Flame Test EN60332-1-2 Vertical Flame
Theoretical Service Life 25 Years
Environmental Compliance RoHS 2.0
Certification TUV, CE, ISO9001
Cable Marking PNTECH TUV EN50618:2014 H1Z2Z2-K 1x6mm² AC1.0/1.0KV DC1.5KV
Packing 500m/reel
Applications

The H1Z2Z2-K 1x6mm² solar PV cable is purpose-built for photovoltaic power generation systems including residential rooftop solar arrays, commercial solar farms, and utility-scale PV installations. It is ideal for interconnecting solar panels to inverters, combiner boxes, and DC distribution cabinets in both grid-tied and off-grid configurations. The cable's robust XLPO construction withstands long-term outdoor exposure, making it equally suitable for ground-mounted, floating solar, and building-integrated photovoltaic (BIPV) applications. With its 1KV AC / 1.5KV DC rating and wide temperature tolerance, it meets the demanding requirements of modern high-voltage solar string designs.

Packaging and Quality Assurance

Each reel contains 500 meters of cable, securely wound and wrapped in protective polyethylene film with moisture-resistant packaging. Standard export packaging includes wooden drums or pallets with reinforced strapping for safe ocean freight transport. Customized packaging options including shorter reel lengths, color coding, and branded labeling are available upon request. Every production batch undergoes rigorous quality testing including conductor resistance measurement, high-voltage withstand testing, spark testing, tensile strength evaluation, and flame resistance verification. ZHEJIANG PNTECH TECHNOLOGY CO., LTD. is ISO9001 certified and provides a full 25-year warranty on all H1Z2Z2-K solar cables, backed by comprehensive TUV and CE certifications. Port of departure is Ningbo, China, with flexible delivery terms including FOB, C&F, and CIF. Typical delivery time is 3–10 working days after order confirmation.
