1500V DC Solar Cable 6mm2 TUV EN50618 Certified Black or Red

Name: 1500V DC Solar Cable 6mm2 TUV EN50618 Certified Black or Red
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K
Availability: InStock

Product Details

Certification: TUV & CE & ISO9001 & CQC & CPR & BCA

Model Number: H1Z2Z2-K

Payment & Shipping Terms

Minimum Order Quantity: 500

Price: Negotiation

Packaging Details: 100m/roll

Delivery Time: 7-25days

Payment Terms: T/T,L/C At Sight

Supply Ability: 10000000

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    1500V DC solar cable 6mm2, TUV EN50618 certified solar cable, black or red solar cable


Waterproof:	Yes	Construction:	84/0.28mm
Cable OD:	6.1mm	Dc Voltage:	1500V
Current Rating:	50A	Standard:	TUV EN50618:2014
Color:	Black Or Red	Model:	H1Z2Z2-K 1x6mm2

Waterproof:	Yes
Construction:	84/0.28mm
Cable OD:	6.1mm
Dc Voltage:	1500V
Current Rating:	50A
Standard:	TUV EN50618:2014
Color:	Black Or Red
Model:	H1Z2Z2-K 1x6mm2

Description

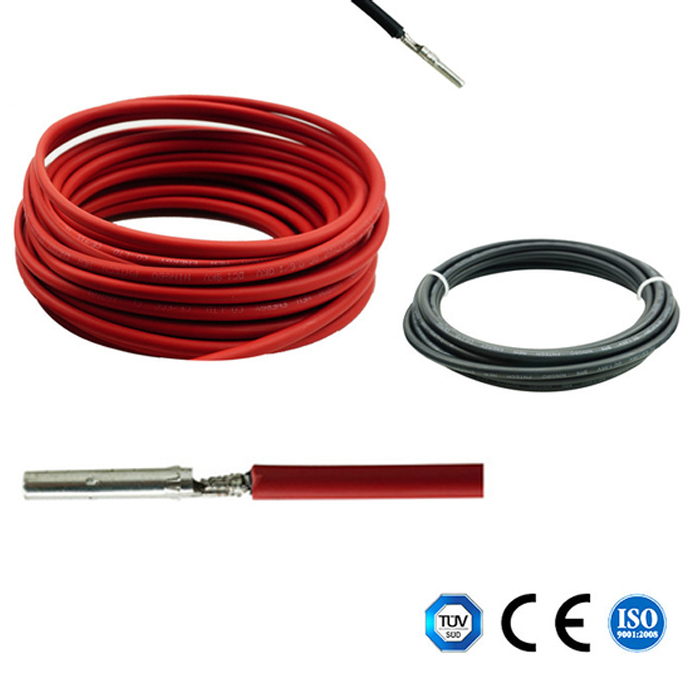

1500V DC Solar Cable 6mm2 TUV EN50618 Certified Black or Red

6.5kV Test Voltage Solar Direct Current Cable with TUV EN50618 2014 Certification

Product Overview

The DC Solar Cable is a high-quality product designed specifically for solar energy applications, ensuring reliable and efficient energy production. Available in black or red, this cable features:

Test Voltage: 6.5kV
Rated Voltage: 1500VDC
Current Rating: 50A
Low Resistance: ≤3.39(Ω/KM)
XLPE Jacket Material
TUV EN50618:2014 Certified

Technical Specifications

Parameter	Value
Standard	TUV EN50618:2014
Jacket	XLPE
Rated Voltage	1500VDC
Type	Single Core
Construction	84/0.28mm
Resistance	≤3.39(Ω/KM)
Color	Black or Red
Cable Spec	1x6mm²
Model	H1Z2Z2-K 1x6mm²

Applications

This Photovoltaic Electric Cable is essential for:

Solar power systems
Photovoltaic installations
Residential and commercial solar projects
Direct current transmission applications

Customization Options

Customize your order with these specifications:

Model Number: H1Z2Z2-K
Minimum Order Quantity: 500 units
Packaging: 100m/roll
Delivery Time: 7-25 days
Payment Terms: T/T, L/C At Sight

Support & Services

Expert installation assistance
Product documentation and specifications
Warranty information and claims support
Training resources

Packaging & Shipping

Each cable is securely packaged in protective plastic and sturdy cardboard boxes with cushioning material. Shipping includes tracking information for your convenience.

Frequently Asked Questions

Q: What is the model number of the DC Solar Cable?

A: The model number is H1Z2Z2-K.

Q: What certifications does the DC Solar Cable have?

A: The cable is certified by TUV, CE, ISO9001, CQC, CPR, and BCA.

Q: What is the minimum order quantity?

A: The minimum order quantity is 500 units.
