IP67 Solar Fuse Connector 30A 1500V for 2.5-6mm2 Cables

Name: IP67 Solar Fuse Connector 30A 1500V for 2.5-6mm2 Cables
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV005-FC
Availability: InStock

Product Details

Place of Origin: China

Certification: CE

Model Number: PV005-FC

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Negotiation

Packaging Details: PP Bag

Delivery Time: 10days

Payment Terms: T/T

Supply Ability: 1k per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Female Solar Panel Fuse Connector, Male Solar Panel Fuse Connector


Features:	Waterproof, Dustproof, Corrosion Resistant	Packing:	PP Bag
Connector:	Female And Male	Voltage Rating:	1500V
Current Rating:	30A	Ip Rating:	IP67
Rated Current:	30A	Suitable Cable:	2.5mm2 , 4mm2 , 6mm2

Features:	Waterproof, Dustproof, Corrosion Resistant
Packing:	PP Bag
Connector:	Female And Male
Voltage Rating:	1500V
Current Rating:	30A
Ip Rating:	IP67
Rated Current:	30A
Suitable Cable:	2.5mm2 , 4mm2 , 6mm2

Description

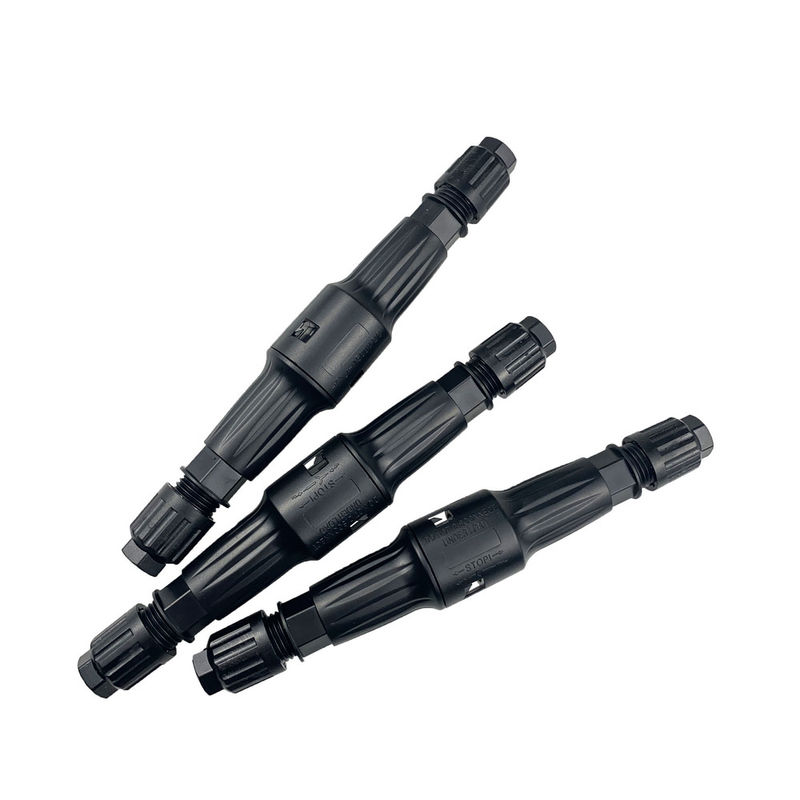

IP67 Solar Fuse Connector 30A 1500V for 2.5-6mm2 Cables

Female and Male Connector Solar Panel Fuse Connector with IP67 Rating

Product Description

The Solar Fuse Connector is designed with safety in mind, tested and certified to meet Flame Class UL94-V0 standards for high resistance to flame and fire. This makes it a reliable choice for ensuring solar panel system safety.

With an IP67 rating, the connector is dust-tight and can withstand immersion in water up to 1 meter depth, making it ideal for harsh outdoor environments. It operates efficiently in extreme temperatures from -40°C to 85°C, suitable for diverse climates.

Rated for a maximum current of 30A, this connector supports various cable sizes (2.5mm², 4mm², and 6mm²), making it versatile for different solar panel installations.

Key Features

Product Name: Solar Fuse Connector
Color: Black
IP Rating: IP67 (Waterproof, Dustproof, Corrosion Resistant)
Current Rating: 30A
Packing: PP Bag
Suitable for Sun Power Splice Joint: Yes

Technical Specifications

Parameter	Value
Voltage Rating	1500V
IP Rating	IP67
Flame Class	UL94-V0
Current Rating	30A
Temperature Rating	-40°C to 85°C
Material	Copper/PPO
Compatible Cable Sizes	2.5mm², 4mm², 6mm²

Applications

This Solar Panel Power Fuse Connector is essential for photovoltaic (PV) systems, protecting against overcurrent and short-circuit situations. It's compatible with most solar panels and designed for outdoor use in harsh conditions.

Residential PV systems
Commercial PV systems
Industrial PV systems
Off-grid PV systems
On-grid PV systems

Order Information

Minimum Order Quantity: 100 units
Price: Negotiable
Packaging: PP Bag
Delivery Time: 10 days
Payment Terms: T/T
Supply Capacity: 1,000 units per day

Frequently Asked Questions

Where is the Solar Fuse Connector manufactured?

Manufactured in China with CE certification.

What is the minimum order quantity?

Minimum order quantity is 100 units.

What are the payment terms?

Payment terms are T/T (Telegraphic Transfer).
