600W 16A Solar Panel Optimizer with 1500V Input and Wi-Fi

Name: 600W 16A Solar Panel Optimizer with 1500V Input and Wi-Fi
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: YH005-600W
Availability: InStock

Product Details

Place of Origin: China

Certification: CE

Model Number: YH005-600W

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Negotiation

Packaging Details: PP Bag

Delivery Time: 10days

Payment Terms: T/T

Supply Ability: 1k per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    16A Solar Panel Optimizer, 600W Solar Panel Optimizer, Enhanced Efficiency Solar Panel Optimizer


Cable Specification:	4mm2	Maximum Input Voltage:	1500V
Temperature Range:	-40°C To +85°C	Maximum Input Power:	600W
Communication:	RS485/Wi-Fi	Overload Protection Condition:	18A Or 150°C
Monitoring:	Real-time Monitoring	Weight:	0.5kgs

Cable Specification:	4mm2
Maximum Input Voltage:	1500V
Temperature Range:	-40°C To +85°C
Maximum Input Power:	600W
Communication:	RS485/Wi-Fi
Overload Protection Condition:	18A Or 150°C
Monitoring:	Real-time Monitoring
Weight:	0.5kgs

Description

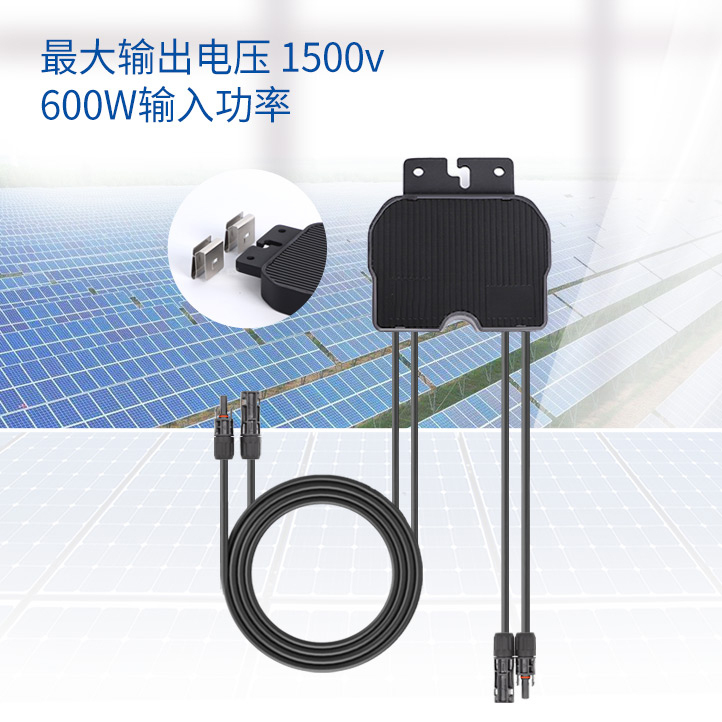

600W 16A Solar Panel Optimizer with 1500V Input and Wi-Fi

600W 16A Solar Panel Optimizer for Enhanced System Efficiency

Product Overview

This PV Power Optimizer features a wide operation voltage range of 7-60V, making it compatible with virtually any solar panel system. With a maximum input power of 600W, it efficiently handles high power loads, making it ideal for large-scale solar installations.

Key Features

Wide operation voltage range: 7-60V
Maximum input power: 600W
Dual communication options: RS485 and Wi-Fi
500mm input cable and 1000mm output cable
Built-in rapid shutdown devices for safety
Certifications: CE, TUV
Overload protection: 18A or 150°C
IP68 waterproof and dustproof rating

Technical Specifications

Parameter	Value
Monitoring	Real-time Monitoring
Output cable length	1000mm
Maximum Output Voltage	42V
Dimensions	103×105×21mm
Maximum Input Power	600W
Weight	0.5kg
Maximum Input Current	16A
Temperature Range	-40°C to +85°C
Cable Specification	4mm²

Applications

This solar power optimizer is suitable for:

Residential and commercial solar panel systems
Large-scale solar power plants
Systems affected by partial shading
Installations requiring enhanced efficiency

Ordering Information

Model Number: YH005-600W
Minimum Order Quantity: 100 units
Price: Negotiable
Packaging: PP bags
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 1,000 units per day
Warranty: 25 years

Support & Services

24/7 customer support via email and phone
Expert technical advice and assistance
Installation guidance and troubleshooting
Regular software updates
Warranty coverage for defects
Repair and replacement services

Packaging & Shipping

Package Includes: 1 Solar Panel Optimizer device, 1 User Manual
Shipping: Free within the United States, international shipping available
Processing Time: Ships within 2 business days
Tracking: Provided for all shipments

Frequently Asked Questions

What is the model number of this solar panel optimizer?

The model number is YH005-600W.

Where is this solar panel optimizer manufactured?

This product is manufactured in China.

Does this solar panel optimizer have any certification?

Yes, it is CE and TUV certified.

What is the minimum order quantity?

The minimum order quantity is 100 units.

What is the delivery time?

Standard delivery time is 10 days.
