3x1.5mm² AC230V 500V/700V Rated Voltage Solar Power Cable for Micro Inverter AC Connection

Name: 3x1.5mm² AC230V 500V/700V Rated Voltage Solar Power Cable for Micro Inverter AC Connection
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: JY03-F
Availability: InStock

Product Details

Place of Origin: China

Certification: VDE

Model Number: JY03-F

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 5000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Micro Inverter Solar Panel Extension Cable, PV Solar Panel Power Cable, 5M Solar Panel AC Cable


Product Name:	Micro Inverter Solar Panel Power Cable	Voltage:	AC230V
Degree Of Protection:	IP68	Rated Current::	25A
Contact Resistance:	≤1mΩ	Color:	Black

Product Name:	Micro Inverter Solar Panel Power Cable
Voltage:	AC230V
Degree Of Protection:	IP68
Rated Current::	25A
Contact Resistance:	≤1mΩ
Color:	Black

Description

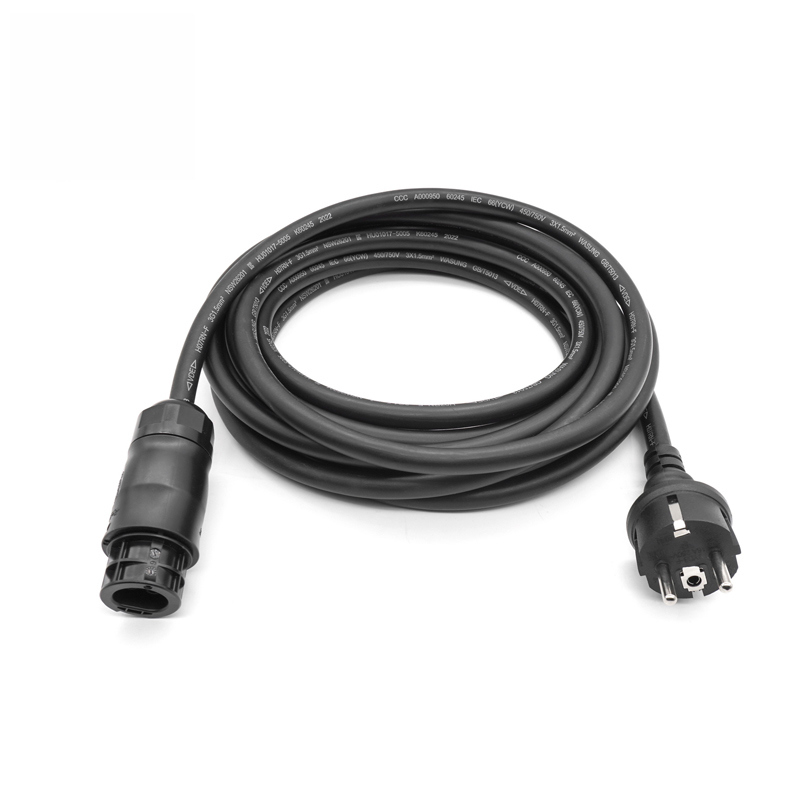

3x1.5mm² AC230V 500V/700V Rated Voltage Solar Power Cable for Micro Inverter AC Connection

Micro Inverter Solar Panel Power Cable Betteri AC 5M PV Netz Adapter

Betteri AC Anschlusskabel 5M 3x1.5mm² PV Netz Adapter für Mikrowechselrichter. Features pre-mounted Betteri Netzanschlussstecker BT01 (inverter side) and open end for 3-pole network connection (L-N-PE).

Key Features

Pre-configured for faster installation
Eliminates risk of miswiring fire, zero and ground wires
DC input with MC4 connector prevents polarity reversal

Technical Specifications

Cable Type	Solar Power Cable
Rated Current	25A
Contact Resistance	≤1mΩ
Model Number	Solar Power Micro Inverter AC Extension Cord
Insulation Material	Rubber
Type	LOW VOLTAGE
Application	Solar Power Micro Inverter, Power Station
Conductor Material	Copper
Jacket	Rubber
Cable	3G1.5 H07RN-F
Connector A	Betteri BC01 Female
Connector B	Schuko Plug
Rated voltage	500V/700V
Color	Black
Length options	3m, 5m, 10m (customizable)
Certifications	VDE CE RoHS ISO9001 IATF16949

Product Advantages

Safety Features

IP65 waterproof structure
Anti-thunder and rust-proof design
Fully isolated input/output for electrical safety
Over/under voltage protection
Over/under frequency protection
Islanding protection

Performance & Installation

Aluminum alloy body for optimal heat dissipation
Compact micro converter design for easy installation
Low maintenance requirements

Packaging

Polybag per piece

Frequently Asked Questions

1. When can I get the quotation?

Within 24 hours of inquiry. For urgent pricing, please call with complete cable specifications.

2. How long is the delivery time?

Typically 3-4 working days after payment, depending on quantity.

3. What payment methods do you accept?

We accept T/T (bank transfer) and L/C.

4. Do you accept customized orders?

Yes, we accommodate custom specifications.

5. Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.
