6mm2 TUV Solar PV Cable 1500V XLPO EN50618 H1z2z2-K

Name: 6mm2 TUV Solar PV Cable 1500V XLPO EN50618 H1z2z2-K
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x6mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x6mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m

Price: Negotiation

Packaging Details: 200m/roll export carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 50000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            XLPO 6mm2 Solar Cable, 1500V Photovoltaic Solar Panel Cable, Tinned Copper PV Solar Panel Cable


Product Name:	TUV DC Photovoltaic Cable 6mm2	Insulation:	XLPO/XLPE
Packing:	100m/roll	Conductor:	Tinned Copper
Struction:	84/0.285mm	Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Product Name:	TUV DC Photovoltaic Cable 6mm2
Insulation:	XLPO/XLPE
Packing:	100m/roll
Conductor:	Tinned Copper
Struction:	84/0.285mm
Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Description

6mm2 TUV Solar PV Cable 1500V XLPO EN50618 H1z2z2-K

1500V XLPO Photovoltaic 6mm² Solar Panel Cable EN50618 H1z2z2-K

Product Specifications

Attribute	Value
Product name	TUV DC photovoltaic Cable 6mm²
Insulation	XLPO/XLPE
Packing	100m/roll
Conductor	Tinned copper
Structure	84/0.285mm
Rated Voltage	1KV AC 1500V DC
Color	Black and Red

Product Description

6mm² Solar Cable EN50618 H1z2z2-K 1500V XLPO photovoltaic cable is designed for connecting photovoltaic system components in both indoor and outdoor installations with high mechanical requirements and extreme weather conditions.

These solar cables feature an electrolytic annealed tinned copper conductor and a halogen-free black thermosetting rubber outer sheath, making them ideal for permanent installations on rooftops, RVs, trailers, ships, and recreational vehicles. Suitable for solar panels ranging from 50W to 600W.

Technical Specifications

Type	Cross section	Wire structure	Conductor diameter	Outer diameter	Conductor resistance	Rated voltage	Rated current
1X4.0mm²	4	56XΦ0.285	2.6mm	5.5mm	5.09 Ω/Km	1000/1800V	50A
1X6.0mm²	6	84XΦ0.285	3.3mm	6.1mm	3.39 Ω/Km	1000/1800V	70A
1X10mm²	10	80XΦ0.40	4.4mm	7.2mm	2.12 Ω/Km	1000/1800V	95A

Key Advantages

Dual wall insulation with electron beam cross-linking
Excellent resistance to UV, oil, greases, oxygen and ozone
Superior abrasion resistance
Halogen free, flame retardant with low toxicity
Excellent flexibility and stripping performance
High voltage and current carrying capacity
TUV approved for quality assurance

These solar cables offer exceptional durability with a lifespan of approximately 30 years, maintaining performance across various weather conditions and temperatures. They are ozone resistant, protected against ultraviolet rays, and feature low smoke emission with minimal toxicity and corrosivity in fire situations.

Product Image

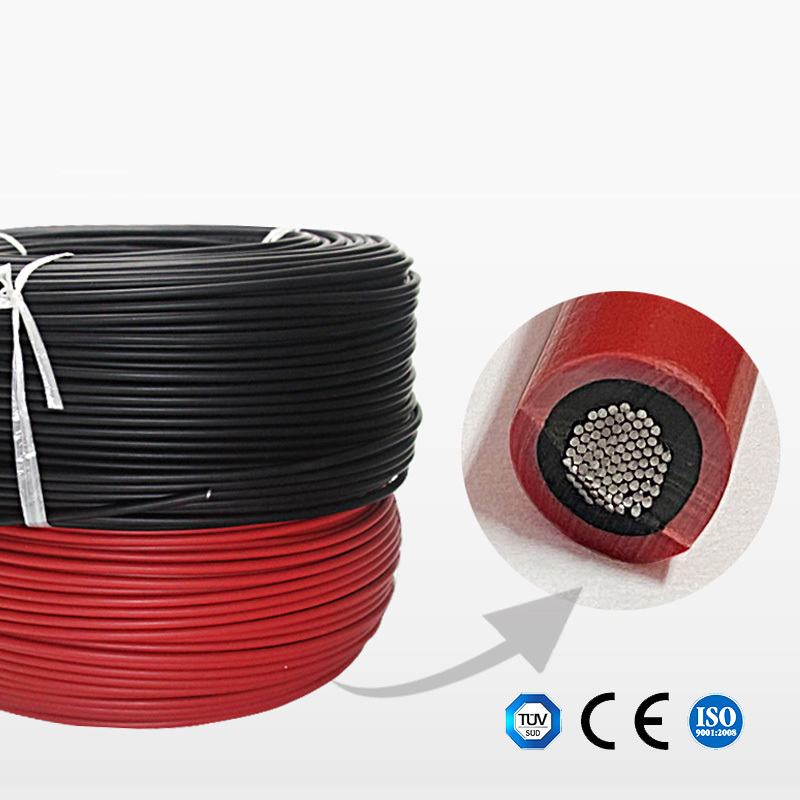

6mm² Solar PV Cable with black and red insulation

Packaging & Delivery

Standard Packaging: 200m/roll, 1000m/roll on pallet or wooden drum

Delivery Time: 3-10 working days after order confirmation

Shipping Options: FOB/C&F/CIF available from Ningbo port or other specified ports

Frequently Asked Questions

1. When can I get the quotation?

Within 24 hours of receiving your inquiry. For urgent requests, please call with complete specifications for immediate pricing.

2. How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.

3. What payment terms do you accept?

We accept T/T (bank transfer) and L/C.

4. Do you accept customized orders?

Yes, we accommodate customized specifications.

5. Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.
