6mm² TUV EN 50618 1500V DC Solar PV Cable
Product Specifications
| Attribute |
Value |
| Product name |
TUV DC Solar Cable 6mm² |
| Insulation |
XLPO/XLPE |
| Packing |
100m/roll |
| Conductor |
Tinned copper |
| Structure |
84/0.285mm |
| Rated Voltage |
1KV AC 1500V DC |
| Color |
Black and Red |
Product Description
Our 6mm² Solar Cable with TUV EN 50618 certification is specifically designed for connecting photovoltaic system components in both indoor and outdoor installations. This 1500V DC PV cable is engineered for high mechanical requirements and extreme weather conditions, making it ideal for permanent solar panel installations.
The cable features an electrolytic annealed tinned copper conductor with a halogen-free black thermosetting rubber outer sheath. Its design makes it particularly suitable for irregular surfaces, including rooftops, RVs, trailers, ships, and recreational vehicles. It's compatible with solar panels ranging from 50W to 600W.
Technical Specifications
| TYPE |
Cross section (mm²) |
Wire struct |
Conductor diameter (mm) |
Outer diameter (mm) |
Conductor resistance (Ω/Km) |
Rated voltage (V AC/DC) |
Rated current (A) |
| 1X4.0mm² |
4 |
56XΦ0.285 |
2.6 |
5.5 |
5.09 |
1000/1800 |
50 |
| 1X6.0mm² |
6 |
84XΦ0.285 |
3.3 |
6.1 |
3.39 |
1000/1800 |
70 |
| 1X10mm² |
10 |
80XΦ0.40 |
4.4 |
7.2 |
2.12 |
1000/1800 |
95 |
Key Advantages
- Dual wall insulation with electron beam cross-linking
- Excellent resistance to UV, oil, greases, oxygen, and ozone
- Superior abrasion resistance
- Halogen free, flame retardant, with low toxicity
- Excellent flexibility and stripping performance
- High voltage and current carrying capacity
- TUV approved for quality assurance
These solar cables offer exceptional durability with a lifespan of approximately 30 years, regardless of weather conditions. They are ozone resistant, protected against ultraviolet rays, and characterized by low smoke emission, minimal toxicity, and reduced corrosivity in fire situations. The color-coded design allows for easy identification during installation.

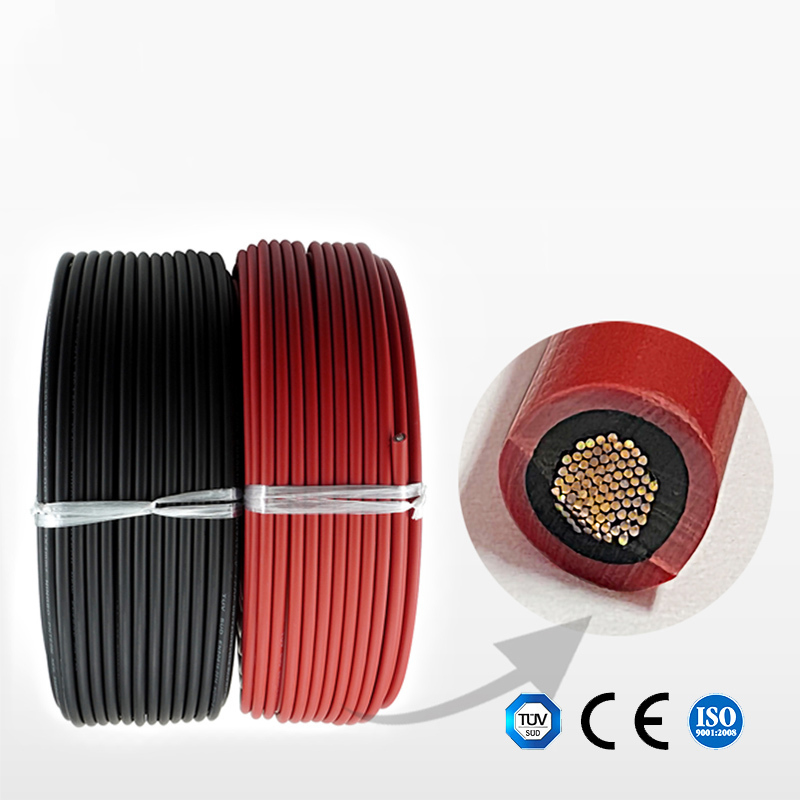

Product Image
Packaging & Delivery
Standard Export Package: 200m/roll, 1000m/roll on pallet or wooden drum
Delivery Time: 3-10 working days after order confirmation
Shipping Options: FOB/C&F/CIF available from Ningbo port or other specified ports
Frequently Asked Questions
1. When can I get the quotation?
Within 24 hours of receiving your inquiry. For urgent requests, please call us with complete cable specifications.
2. How long is the delivery time?
Typically 3-4 working days after payment, depending on order quantity.
3. What payment terms do you accept?
We accept T/T (bank transfer) and L/C.
4. Do you accept customized orders?
Yes, we accommodate customized orders.
5. Do you offer OEM & ODM services?
Yes, both OEM and ODM services are available.
